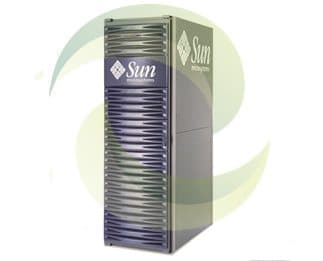

Oracle Sun Storage 6920
REQUEST A PRICE QUOTE:
|
Disks
|
|
| 36GB |
|
| 73GB |
|
| 146GB |
|
| 300GB |
|
| Capacity | |
| 2 x 2 Configuration | 2 Controllers and 2 Array trays (28 disks) using 300GB disks – 8.4TB |
| 2 x 4 Configuration | 2 Controllers and 4 Array trays (56 disks) using 300GB disks – 16.8TB |
| 2 x 6 Configuration | 2 Controllers and 6 Array trays (84 disks) using 300GB disks – 25.2TB |
| Note 1: This is raw capacity; if a disk is used for a “hot spare”, you must subtract this capacity from the total raw capacity. Note 2: An expansion cabinet can be added to the configuration to increase total storage capacity. |
|
|
Environment
|
|
| AC input | 200 to 240 VAC at 50 to 60 Hz single phase |
| Input power |
Base Unit: 4200 W maximum, two dedicated 200 to 220 VAC, 30A circuit breakers Base Unit + Expansion Cabinet: 8,400 W maximum, four dedicated 200 to 220 VAC, 30A circuit breakers Base Unit + 2 Expansion Cabinets: 12,600 W maximum, six dedicated 200 to 220 VAC, 30A circuit breakers |
| Heat output |
Base Unit: ~15,000 BTU/hr Base Unit + Expansion Cabinet: ~28,000 BTU/hr Base Unit + 2 Expansion Cabinets: ~28,000 BTU/hr |
| Temperature |
Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -40° C to 60° C (-40° F to -76° F) |
| Humidity |
Operating: 10% to 90%, noncondensing, maximum gradient 10% per hour Nonoperating: 93%, noncondensing, maximum gradient 10% per hour |
| Altitude |
Operating: 3000 m (9840 ft ) Nonoperating: 12000 m (39,370 ft) |
| Vibration |
Operating: 0.15 g on Z axis; 0.10 g on X and Y axes; 5 to 500 Hz sinusoidal Nonoperating: 0.5 g on Z axis; 0.25 g on X and Y axes; 5 to 500 Hz sinusoidal |
| Shock |
Operating: 3.0 g for maximum duration of 11 ms (half sinewave)(from any axis X, Y, Z) Nonoperating: 1.0 inch roll-off freefal, front to back rolling directions (from any axis X, Y, Z) |
| Power Connector (US) | NEMA L6-30P for 200 to 240 VAC |
| Power Connector (International) | 32A, single phase IEC 309, connected for 220 to 240 VAC |
|
Regulations
Meets or exceeds the following requirements: |
|
| Immunity | EN55024 |
| Safety and Emissions | IEC60950, EN60950, UL60950, FCC Part 15 (47CFR15B), EN55022, EN 61000-3-2, EN 61000-3-3 |
|
Dimensions and Weights
|
|
| Height |
Base Unit: 190.5 cm (75 in) Base Unit + Expansion Cabinet: 190.5 cm (75 in) Base Unit + 2 Expansion Cabinets: 190.5 cm (75 in) |
| Width |
Base Unit: 60.7 cm (23.9 in) Base Unit + Expansion Cabinet: 121.4 cm (47.8 in) Base Unit + 2 Expansion Cabinets: 182.1 cm (71.7 in) |
| Depth |
Base Unit: 94 cm (37 in) Base Unit + Expansion Cabinet: 94 cm (37 in) Base Unit + 2 Expansion Cabinets: 94 cm (37 in) |
| Weight |
Base Unit: 659 kg (1450 lbs) Base Unit + Expansion Cabinet: 1364 kg (3000 lbs) Base Unit + 2 Expansion Cabinets: 2068 kg (4550 lbs) |
| Footprint |
Base Unit: 0.57 sq. m (6.1 sq. ft) Base Unit + Expansion Cabinet: 1.4 sq. m (12.3 sq. ft) Base Unit + 2 Expansion Cabinets: 1.7 sq. m (18.4 sq. ft) |
| Array Controller | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 540-5559 | Sun StorEdge 6120/6920 RAID Controller Assembly | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X3858A | AC Power Cord, Han 6HsB to NEMA L6-30P (US) 4M, RoHS:Y | |||
| 180-1954 | Han 6HsB to NEMA L6-30P,4M (US), RoHS:Y | |||
| X3859A | Han 6HsB to Blue 32A IEC309 (Intl), RoHS:Y | |||
| 180-1955 | Han 6HsB to Blue 32A IEC309 (INTL), RoHS:Y | |||
| X9723A | 537-1033 | Fibre Channel Optical Cable LC/SC, 5M | ||
| X9724A | 537-1034 | Fibre Channel Optical Cable LC/SC, 15M | ||
| X9733A | 537-1042 | Fibre Channel Optical Cable LC/LC, 5M | ||
| X9734A | 537-1043 | Fibre Channel Optical Cable LC/LC, 15M | ||
| XTA6920-1M-LCSC-2 | 537-1064 | Fibre Channel Optical Cable LC/SC, 1M | ||
| XTA6920-CBLKIT-A | 537-1061 | Cable, MPT to SC Fanout | ||
| XTB6920-1M-LCLC-2 | 594-0540 | SE6920 LC-to-LC Cables (2 each) | ||
|
|
|||
| n/a | 180-1949 | Y Split AC Power Cable, 3M, RoHS:Y | ||
| n/a | 530-3100 | RJ45F to DB9F Adapter, RoHS:Y | ||
| n/a | 530-3211 | HSSDC2 to HSSDC2 Array Interconnect Cable (loop), 0.5M | ||
| n/a | 537-1035 | Fibre Channel Optical Cable LC/SC, 2M | ||
| n/a | 537-1041 | Fibre Channel Optical Cable LC/LC, 2M, 2.0M | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X6815A | 540-5330 | 73.4GB – 10000 RPM FC-AL, Disk assembly with 1 SPUD bracket and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| X6817A | 540-5471 | 146GB – 10000 RPM FC-AL, Disk assembly with 1 SPUD bracket and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| X6867A | 540-5322 | 36.4GB – 15000 RPM FC-AL, Disk assembly with 1 SPUD bracket and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| X6893A | 540-5922 | 73.4GB – 15000 RPM FC-AL, Disk Assembly with Bracket and 1 disk: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| XTA-FC1CE-300G10K | 540-6344 | 300GB – 10000 RPM FC-AL, Disk assembly FRU with 1 Spud bracket and 1 of the following disks: | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X6748A | 375-0118 | Compact PCI (cPCI) Dual Channel FC | ||
| SG-XPCI1FC-EM2 | 375-3304 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QF2 | 375-3102 | 2Gb PCI Single FC Host Adapter | ||
| SG-XPCI1FC-QL2 | 375-3383 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-EM2 | 375-3305 | 2Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF2 | 375-3108 | 2Gb PCI Dual FC Host Adapter | ||
|
|
|||
| SG-XPCI2FC-QF2-Z | 375-3363 | 2Gb PCI Dual FC Host Adapter, RoHS:Y | ||
|
|
|||
| X6727A | 375-3030 | PCI Dual FC Host Adapter+, RoHS:YL | ||
| X6799A | 375-3019 | PCI Single FC Host Adapter | ||
| n/a | 370-5211 | 2Gbps Short Wave SFP | ||
| n/a | 371-0099 | 2Gbps Short Wave SFP | ||
| I/O | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| XTA6920-SIO-2F | 595-7402 | SE6920 DSP Upgrade Kit | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| XTB6920-SIO-2C | 594-0537 | SE6920 Conversion Kit | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| XTB6920-SRC-2C | 594-0538 | SE6920 Kit to Upgrade 2-up DSP to 4-up DSP | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| Miscellaneous | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 370-4900 | SSRR Global Telco Adapter Kit | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 300-1393 | 230V AC Power Sequencer | ||
| Rack | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X6886A | n/a | Sun StorEdge 6120 3U Rack Kit | ||
|
|
|||
| Switch/Hub | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| SG-XSWQLG5200-20P | 370-7694 | QLogic 5200 Switch (20 ports active) | ||
| SG-XSWQLG5200-8P | 370-7664 | QLogic 5200 Switch (8 ports active) | ||
| SG-XSWBRO3250 | 370-6824 | Brocade 3252 Value Line 8-Port FC Switch | ||
| 370-7047 | Brocade 3250 8-Port FC Switch | |||
| SG-XSWBRO3850 | 370-6826 | Brocade 3852 Value Line 16-Port FC Switch | ||
| 370-7048 | Brocade 3850 16-Port FC Switch | |||
| SG-XSWBRO4100-16P | 370-7756 | Brocade Silkworm 4100 FC Switch (16 Ports) | ||
| SG-XSWBRO4100-32P | 370-7770 | Brocade Silkworm 4100 FC Switch (32 Ports) | ||
| n/a | 340-7617 | Bracket Slide for Hub/SPA | ||
| n/a | 340-7618 | Rail for Hub/SPA | ||
| n/a | 340-7620 | Rear Bracket for Hub | ||
| n/a | 370-5574 | 10/100 Ethernet Hub | ||
| n/a | 599-2916 | 2 Processor DSP-1000 Assembly | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 599-2917 | 4 Processor DSP-1000 Assembly | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 599-2988 | 2 Processor DSP-1000 Assembly | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 599-2989 | 4 Processor DSP-1000 Assembly | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 599-2990 | 4 Processor DSP-1000 Assembly | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
