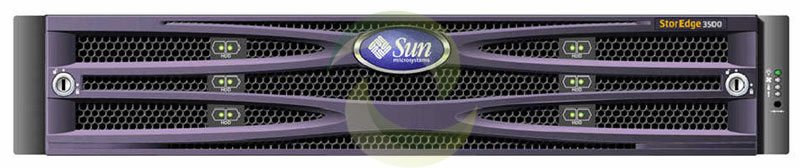

Oracle Sun Storage 3510 FC
REQUEST A PRICE QUOTE:
|
Disks
|
|
| 36.4GB 15K RPM |
|
| 73.4GB 10K RPM |
|
| 73.4GB 15K RPM |
|
| 146.8GB 10K RPM |
|
| 146.8GB 15K RPM |
|
| 300GB 10K RPM |
|
| Note 1: All RAID configurations ship pre-configured with RAID level zero (RAID 0). Note 2: Supported RAID levels include 0, 1, 0+1, 1+0, 3, 5, 3+0, and 5+0. |
|
|
Capacity
|
|
| Up to 12 Disk drives per array | |
| 36.4GB Disk drives | 12 x 36.4 = 436.8GB |
| 73.4GB Disk drives | 12 x 73.4 = 880.8GB |
| 146.8GB Disk drives | 12 x 146.8 = 1.762TB |
| 300GB Disk drives | 12 x 300 = 3.6TB |
|
Environment
|
|
| Power Requirement |
AC: 90 to 132 VAC, 180 to 264 VAC (47 to 63 Hz) DC: -36 to -75 VDC |
| Input Voltage |
AC: 100 to 240 VAC, single phase DC: -48 to -60 VDC, 18A |
| Current Per Input |
AC: 100 to 240 VAC, 50 to 60 Hz, 5.0-7.1 A DC: -48 or -60 VDC, 18A |
| Heat Output | 785 BTU/hr (fully populated array, max) |
| Altitude |
Operating: -30 m to 3,048 m(-100 to 10000 feet) Non-operating: -30 m to 12192 m(-100 to 40000 feet) |
| Temperature |
Operating: 5° C to 40° C (41° F to 104° F) Non-operating: -40° C to 65° C (-40° F to 149° F) |
| Humidity |
Operating: 10% to 90% relative to 27° C max. wet bulb, noncondensing Non-operating: 93% relative to 38° C max. wet bulb, noncondensing |
| Shock |
Operating: 5.0 G, 11-ms, half-sine Non-operating: 15.0 G, 11-ms, half-sine |
| Vibration |
Operating: 0.2 G, 5-500 Hz, swept-sine Non-operating: 1.0 G, 5-500 Hz, swept-sine |
|
Dimensions and Weights
|
|
| Height |
Desktop: 9.25 cm (3.64 in) Rackmount: 8.89 cm (3.5 in) |
| Width |
Desktop: 48.26 cm (19 in) Rackmount: 44.7 cm (17.6 in) |
| Depth |
Main Chassis with bezel: 48.36 cm (19.04 in) Chassis with Power/Fan Modules and bezel: 53.44 cm (21.04 in) Chassis with Power/Fan Modules, Handles and bezel: 55.98 cm (22.04 in) |
| Weight (with 12 disks) |
Desktop: 31.43 kg (69.3 lbs) Rackmount: 28.71 kg (63.3 lbs) |
| Array Controller | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| XTA-3510-CTRL-1GZ | 371-0532 | RAID Fibre Channel Controller, 1GB memory and Battery Backup, RoHS:YL | ||
| n/a | 371-0533 | Fibre Channel Expansion I/O Module (JBOD), RoHS:YL | ||
| n/a | 371-0539 | Battery Module, RoHS:YL | ||
| Backplane/Centerplane | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| n/a | 371-0531 | 2U Chassis + Midplane (RAID/JBOD), RoHS:YL | ||
| Cables | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| X311L | Localized Power Cord Kit – North America/Asia, RoHS:Y | |||
| 180-1097 | IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y | |||
| X312L | Localized Power Cord Kit – Continental Europe, RoHS:Y | |||
| 180-1993 | IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y | |||
| X314L | Localized Power Cord Kit – Swiss, RoHS:Y | |||
| 180-1994 | IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y | |||
| X317L | Localized Power Cord Kit – U.K., RoHS:Y | |||
| 180-1997 | IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y | |||
| X383L | Localized Power Cord Kit – Danish, RoHS:Y | |||
| 180-1995 | IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y | |||
| X384L | Localized Power Cord Kit – Italian, RoHS:Y | |||
| 180-1996 | IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y | |||
| X386L | Localized Power Cord Kit – Australian, RoHS:Y | |||
| 180-1998 | IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y | |||
| X9724A-Z | 537-1090 | Fibre Channel Optical Cable LC/SC, 15M, RoHS:Y | ||
| X9740A-Z | 537-1093 | Fibre Channel Optical Cable LC/LC, 100M, RoHS:Y | ||
| n/a | 371-0306 | Ethernet Cable, RoHS:Y | ||
| n/a | 371-0307 | DC Input Power Cable, RoHS:Y | ||
| n/a | 371-0534 | Fibre Channel Expansion Cable, 0.5M, RoHS:YL | ||
| Disks | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| XTA-3510-146GB10KZ | 540-6572 | 146GB – 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y | ||
|
|
|||
|
|
|||
|
|
|||
| XTA-3510-300GB15KZ | 540-7159 | 300GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y | ||
|
|
|||
|
|
|||
| XTA-3510-73GB-15KZ | 540-6571 | 73.4GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:YL | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 540-6495 | 146GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:YL | ||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| n/a | 540-6570 | 73.4GB – 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y | ||
|
|
|||
|
|
|||
|
|
|||
| n/a | 540-6574 | 300GB – 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y | ||
|
|
|||
|
|
|||
| Fibre Channel | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y | ||
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCIE2FCGBE-E-Z | 371-4018 | 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex, RoHS:Y | ||
| SG-XPCIE2FCGBE-Q-Z | 371-4017 | 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic, RoHS:Y | ||
| SFP-SW-4GB | 371-0294 | 4Gbps Short Wave SFP, RoHS:Y | ||
| SFP-SW-4GB-4PK | 371-0294 | 4Gbps Short Wave SFP, RoHS:Y | ||
| SG-XPCI1FC-EM2 | 375-3304 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QL2 | 375-3383 | 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI1FC-QLC-Z | 375-3364 | Entry-Level 2Gb PCI-X Single FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-EM2 | 375-3305 | 2Gb PCI-X Dual FC Host Adapter, RoHS:Y | ||
| SG-XPCI2FC-QF2-Z | 375-3363 | 2Gb PCI Dual FC Host Adapter, RoHS:Y | ||
|
|
|||
| X6727A | 375-3030 | PCI Dual FC Host Adapter+, RoHS:YL | ||
| X9279A-Z | 371-1629 | 2Gb/Sec Single FC PCI-X Host Adapter, RoHS:Y | ||
| Power | ||||
|---|---|---|---|---|
| Option # | Manufacturing Part # |
Description | ||
| XTA-3000-2UAC-KIT | 371-0108 | 420 Watt AC Input Power Supply, RoHS:YL | ||
| XTA-3000-2UDC-KIT | 371-0109 | 420 Watt DC Input Power Supply, RoHS:YL | ||
