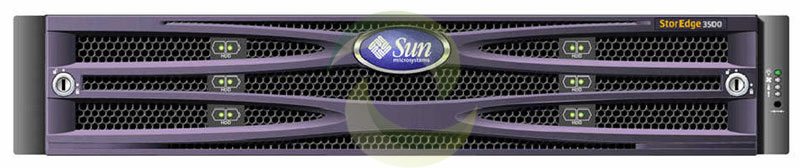

Oracle Sun Storage 3510

Oracle Sun Storage 3510 Oracle Sun Storage 3510 3510

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Disks


    73.4GB 10K RPM
    • Fujitsu MAW3073FC, 73.4GB – 10000 RPM FC Disk Drive
    • Hitachi HUS1073FA, 73.4GB – 10000 RPM FC Disk Drive
    • Seagate ST373207FC, 73.4GB – 10000 RPM FC Disk Drive
    73.4GB 15K RPM
    • Seagate ST373454FC, 73.4GB – 15000 RPM FC Disk Drive
    • Hitachi, 73.4GB – 15000 RPM FC Disk Drive
    146.8GB 10K RPM
    • Fujitsu MAW3147FC, 146.8GB – 10000 RPM FC Disk Drive
    • Hitachi HUS1014FA, 146.8GB – 10000 RPM FC Disk Drive
    • Seagate ST3146707FC, 146.8GB – 10000 RPM FC Disk Drive
    146.8GB 15K RPM
    • Seagate ST3146854FC, 146.8GB – 15000 RPM FC Disk Drive
    • Fujitsu, 146.8GB – 15000 RPM FC Disk Drive
    300GB 10K RPM
    • Fujitsu MAW3300FC, 300GB – 10000 RPM FC Disk Drive
    • Seagate ST3300007FC, 300GB – 10000 RPM FC Disk Drive
    Note 1: All RAID configurations ship pre-configured with RAID level zero (RAID 0).
    Note 2: Supported RAID levels include 0, 1, 0+1, 1+0, 3, 5, 3+0, and 5+0.
    Capacity


    Up to 12 Disk drives per array
    73.4GB Disk drives 12 x 73.4 = 880.8GB
    146.8GB Disk drives 12 x 146.8 = 1.762TB
    300GB Disk drives 12 x 300 = 3.6TB
    Environment


    Power Requirement AC: 90 to 132 VAC, 180 to 264 VAC (47 to 63 Hz)
    DC: -36 to -75 VDC
    Input Voltage AC: 100 to 240 VAC, single phase
    DC: -48 to -60 VDC, 18A
    Current Per Input AC: 100 to 240 VAC, 50 to 60 Hz, 5.0-7.1 A
    DC: -48 or -60 VDC, 18A
    Heat Output 785 BTU/hr (fully populated array, max)
    Altitude Operating: -30 m to 3,048 m(-100 to 10000 feet)
    Non-operating: -30 m to 12192 m(-100 to 40000 feet)
    Temperature Operating: 5° C to 40° C (41° F to 104° F)
    Non-operating: -40° C to 65° C (-40° F to 149° F)
    Humidity Operating: 10% to 90% relative to 27° C max. wet bulb, noncondensing
    Non-operating: 93% relative to 38° C max. wet bulb, noncondensing
    Shock Operating: 5.0 G, 11-ms, half-sine
    Non-operating: 15.0 G, 11-ms, half-sine
    Vibration Operating: 0.2 G, 5-500 Hz, swept-sine
    Non-operating: 1.0 G, 5-500 Hz, swept-sine
    Dimensions and Weights


    Height Desktop: 9.25 cm (3.64 in)
    Rackmount: 8.89 cm (3.5 in)
    Width Desktop: 48.26 cm (19 in)
    Rackmount: 44.7 cm (17.6 in)
    Depth Main Chassis with bezel: 48.36 cm (19.04 in)
    Chassis with Power/Fan Modules and bezel: 53.44 cm (21.04 in)
    Chassis with Power/Fan Modules, Handles and bezel: 55.98 cm (22.04 in)
    Weight (with 12 disks) Desktop: 31.43 kg (69.3 lbs)
    Rackmount: 28.71 kg (63.3 lbs)
    Array Controller
    Option # Manufacturing
    Part #    		 Description
    XTA-3510-CTRL-1G 370-5537 RAID Fibre Channel Controller, 1GB memory and Battery Backup (370-5545)
    n/a 370-5538 Fibre Channel Expansion I/O Module (JBOD)
    n/a 370-5545 Battery Module
    Backplane/Centerplane
    Option # Manufacturing
    Part #    		 Description
    n/a 370-5535 2U Chassis + Midplane (RAID/JBOD)
    Cables
    Option # Manufacturing
    Part #    		 Description
    X311L Localized Power Cord Kit – North America/Asia, RoHS:Y
    180-1097 IEC 320 C13 to NEMA 5-15P – 15A/125V 2.5M Black, RoHS:Y
    X312L Localized Power Cord Kit – Continental Europe, RoHS:Y
    180-1993 IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, RoHS:Y
    X314L Localized Power Cord Kit – Swiss, RoHS:Y
    180-1994 IEC 320 C13 to SEV 1011 – 10A/250V 2.5M Black, RoHS:Y
    X317L Localized Power Cord Kit – U.K., RoHS:Y
    180-1997 IEC 320 C13 to BS 1363 – 10A/250V 2.5M Black, RoHS:Y
    X383L Localized Power Cord Kit – Danish, RoHS:Y
    180-1995 IEC 320 C13 to Asfnit 107 – 10A/250V 2.5M Black, RoHS:Y
    X384L Localized Power Cord Kit – Italian, RoHS:Y
    180-1996 IEC 320 C13 to CEI 23-16/VII – 10A/250V 2.5M Black, RoHS:Y
    X386L Localized Power Cord Kit – Australian, RoHS:Y
    180-1998 IEC 320 C13 to AS 3112 – 10A/250V 2.5M Black, RoHS:Y
    X9721A 537-1036 Fibre Channel Optical Cable LC/SC, 0.4M
    X9740A 537-1062 Fibre Channel Optical Cable LC/LC, 100M
    X9722A 537-1035 Fibre Channel Optical Cable LC/SC, 2M
    X9723A 537-1033 Fibre Channel Optical Cable LC/SC, 5M
    X9724A 537-1034 Fibre Channel Optical Cable LC/SC, 15M
    X9730A 537-1057 Fibre Channel Optical Cable LC/LC, 0.8M
    X9732A 537-1041 Fibre Channel Optical Cable LC/LC, 2M, 2.0M
    X9733A 537-1042 Fibre Channel Optical Cable LC/LC, 5M
    X9734A 537-1043 Fibre Channel Optical Cable LC/LC, 15M
    X9735A 537-1053 Fibre Channel Optical Cable LC/SC, 25M
    X9736A 537-1051 Fibre Channel Optical Cable LC/LC, 25M
    X9737A 537-1055 Fibre Channel Optical Cable LC/SC, 50M
    X9738A 537-1052 Fibre Channel Optical Cable LC/LC, 50M
    n/a 370-5540 Fibre Channel Expansion Cable, 0.5M
    n/a 370-6627 DB-9M to DB-9F Serial Cable, 1.8M
    n/a 370-6629 Ethernet Cable, 35-88730002
    n/a 370-6630 DC Input Power Cable
    n/a 371-0306 Ethernet Cable, RoHS:Y
    n/a 371-0307 DC Input Power Cable, RoHS:Y
    n/a 530-1819 Localized Power Cord Kit – Danish
    Disks
    Option # Manufacturing
    Part #    		 Description
    XTA-3510-146GB-10K 540-5626 146GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:
    • 390-0118
    • Seagate ST3146807FC [ST314680FSUN146G]
      (146GB – 10000 RPM – FC-AL Disk)
    • 390-0119
    • Fujitsu MAP3147FC [MAP3147F SUN146G]
      (146.8GB – 10000 RPM – FC-AL Disk)
    • 390-0120
    • Hitachi DK32EJ-14FC [DK32EJ14FSUN146G]
      (146GB – 10000 RPM – FC-AL Disk)
    • 390-0171
    • Seagate ST3146707FC [ST314670FSUN146G]
      (146GB – 10000 RPM – FC-AL Disk)
    • 390-0172
    • Fujitsu MAT3147FC [MAT3147F SUN146G]
      (146GB – 10000 RPM – FC-AL Disk)
    • 390-0173
    • Hitachi HUS1014FA [HUS1014FASUN146G]
      (146GB – 10000 RPM – FC-AL Disk)
    • 390-0257
    • Fujitsu MAW3147FC [MAW3147FCSUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0270
    • Hitachi HUS1014FA [HUS1014FASUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0280
    • Seagate ST3146707FC [ST314670FSUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    540-6572 146GB – 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y
    • 390-0257
    • Fujitsu MAW3147FC [MAW3147FCSUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0270
    • Hitachi HUS1014FA [HUS1014FASUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0280
    • Seagate ST3146707FC [ST314670FSUN146G]
      (146GB – 10000 RPM – FC-AL Disk), RoHS:Y
    XTA-3510-146GB-15K 540-6495 146GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:YL
    • 390-0196
    • Seagate ST3146854FC [ST314685FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0264
    • Fujitsu MAX3147FC [MAX3147FCSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0328
    • Seagate ST3146855FC [ST314655FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0365
    • Hitachi HUS153014VLF400 [HUS1514FBSUN146G]
      (146.8GB – 15000 RPM – FC-AL Disk), RoHS:Y
    540-6719 146GB – 15000 RPM FC-AL, Disk Assembly FRU with 1 of the following disks:
    • 390-0197
    • Fujitsu MAU3147FC [MAU3147FCSUN146G]
      (146GB – 15000 RPM – FC-AL Disk)
    • 390-0328
    • Seagate ST3146855FC [ST314655FSUN146G]
      (146GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0365
    • Hitachi HUS153014VLF400 [HUS1514FBSUN146G]
      (146.8GB – 15000 RPM – FC-AL Disk), RoHS:Y
    XTA-3510-300GB-10K 540-6367 300GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:
    • 390-0181
    • Seagate ST3300007FC [ST330000FSUN300G]
      (300GB – 10000 RPM – FC-AL Disk)
    • 390-0182
    • Fujitsu MAT3300FC [MAT3300F SUN300G]
      (300GB – 10000 RPM – FC-AL Disk)
    • 390-0258
    • Fujitsu MAW3300FC [MAW3300FCSUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0281
    • Seagate ST3300007FC [ST330000FSUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    540-6574 300GB – 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y
    • 390-0258
    • Fujitsu MAW3300FC [MAW3300FCSUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0281
    • Seagate ST3300007FC [ST330000FSUN300G]
      (300GB – 10000 RPM – FC-AL Disk), RoHS:Y
    XTA-3510-36GB-15K 540-5628 36.4GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:
    • 390-0130
    • Seagate ST336753FC [ST336753FSUN36G]
      (36.4GB – 15000 RPM – FC-AL Disk)
    • 390-0151
    • Fujitsu MAS3367FC [MAS3367F SUN36G]
      (36.4GB – 15000 RPM – FC-AL Disk)
    • 390-0187
    • Seagate ST336754FC [ST336754FSUN36G]
      (36.4GB – 15000 RPM – FC-AL Disk)
    • 390-0188
    • Fujitsu MAU3036FC [MAU3036FCSUN36G]
      (36.4GB – 15000 RPM – FC-AL Disk)
    • 390-0262
    • Fujitsu MAX3036FC [MAX3036FCSUN36G]
      (36.4GB – 15000 RPM – FC-AL Disk)
    XTA-3510-73GB-10K 540-5629 73.4GB – 10000 RPM FC-AL, Disk Assembly with one of the following disks:
    • 390-0121
    • Seagate ST373307FC [ST373307FSUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk)
    • 390-0122
    • Fujitsu MAP3735FC [MAP3735F SUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk)
    • 390-0123
    • Hitachi DK32EJ-72FC [DK32EJ72FSUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk)
    • 390-0165
    • Seagate ST373207FC [ST373207FSUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk)
    • 390-0166
    • Fujitsu MAT3073FC [MAT3073F SUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk)
    540-6570 73.4GB – 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y
    • 390-0256
    • Fujitsu MAW3073FC [MAW3073FCSUN73G]
      (73.4GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0269
    • Hitachi HUS1073FA [HUS1073FASUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk), RoHS:Y
    • 390-0279
    • Seagate ST373207FC [ST373207FSUN72G]
      (73.4GB – 10000 RPM – FC-AL Disk), RoHS:Y
    XTA-3510-73GB-15K 540-6098 73.4GB – 15000 RPM FC-AL, Disk Assembly with one of the following disks:
    • 390-0144
    • Seagate ST373453FC [ST373453FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk)
    • 390-0152
    • Fujitsu MAS3735FC [MAS3735F SUN36G]
      (73.4GB – 15000 RPM – FC-AL Disk)
    • 390-0193
    • Seagate ST373454FC [ST373454FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0194
    • Fujitsu MAU3073FC [MAU3073FCSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk)
    • 390-0263
    • Fujitsu MAX3073FC [MAX3073FCSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0326
    • Seagate ST373455FC [ST373455FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0364
    • Hitachi HUS153073VLF400 [HUS1573FBSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk)
    540-6571 73.4GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:YL
    • 390-0193
    • Seagate ST373454FC [ST373454FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0263
    • Fujitsu MAX3073FC [MAX3073FCSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0326
    • Seagate ST373455FC [ST373455FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0364
    • Hitachi HUS153073VLF400 [HUS1573FBSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk)
    XTA-3510-300GB15KZ 540-7159 300GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:Y
    • 390-0330
    • Seagate ST3300655FC [ST330055FSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0366
    • Hitachi V-B HUS153030VLF400 [HUS1530FBSUN300G]
      (300GB – 15000 RPM – FC-AL Disk), RoHS:Y
    XTA-3510-73GB-15KZ 540-6571 73.4GB – 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks:, RoHS:YL
    • 390-0193
    • Seagate ST373454FC [ST373454FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0263
    • Fujitsu MAX3073FC [MAX3073FCSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0326
    • Seagate ST373455FC [ST373455FSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk), RoHS:Y
    • 390-0364
    • Hitachi HUS153073VLF400 [HUS1573FBSUN72G]
      (73.4GB – 15000 RPM – FC-AL Disk)
    n/a n/a Drive Mounting Bracket, 82-00000983 (Manufacturer Part Number)
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description
    SG-XPCI1FC-QF4 375-3354 4Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-QF4 375-3294 4Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-EM4 375-3396 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE1FC-QF4 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-EM4 375-3397 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FC-QF4 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y
    SG-XPCIE2FCGBE-E-Z 371-4018 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex, RoHS:Y
    SG-XPCIE2FCGBE-Q-Z 371-4017 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic, RoHS:Y
    (X)5133A 501-6640 Fibre Channel PCI Adapter
    SFP-SW-4GB 371-0294 4Gbps Short Wave SFP, RoHS:Y
    SFP-SW-4GB-4PK 371-0294 4Gbps Short Wave SFP, RoHS:Y
    SG-XPCI1FC-EM2 375-3304 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-JF2 375-3156 JNI 2Gb PCI Single FC Host Adapter
    SG-XPCI1FC-QF2 375-3102 2Gb PCI Single FC Host Adapter
    SG-XPCI1FC-QL2 375-3383 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI1FC-QLC 375-3253 Entry-Level 2Gb PCI-X Single FC Host Adapter
    SG-XPCI1FC-QLC-Z 375-3364 Entry-Level 2Gb PCI-X Single FC Host Adapter, RoHS:Y
    SG-XPCI2FC-EM2 375-3305 2Gb PCI-X Dual FC Host Adapter, RoHS:Y
    SG-XPCI2FC-JF2 375-3157 JNI 2Gb PCI Dual FC Host Adapter
    SG-XPCI2FC-QF2 375-3108 2Gb PCI Dual FC Host Adapter
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    SG-XPCI2FC-QF2-Z 375-3363 2Gb PCI Dual FC Host Adapter, RoHS:Y
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    X6727A 375-3030 PCI Dual FC Host Adapter+, RoHS:YL
    X6757A 375-3048 SBus Dual FC Network Adapter
    X6767A 375-3102 2Gb PCI Single FC Host Adapter
    X6768A 375-3108 2Gb PCI Dual FC Host Adapter
    • 240-4839
    • Low Profile Bracket, RoHS:Y
    X6799A 375-3019 PCI Single FC Host Adapter
    X9279A 370-6697 2Gb/Sec Single FC PCI-X Host Adapter
    n/a 370-5211 2Gbps Short Wave SFP
    n/a 371-0099 2Gbps Short Wave SFP
    Power
    Option # Manufacturing
    Part #    		 Description
    XTA-3000-2UAC-KIT 370-6776 AC Power Supply / Fan Module, 2U
    371-0108 420 Watt AC Input Power Supply, RoHS:YL
    XTA-3000-2UDC-KIT 370-6798 DC Power Supply / Fan Module, 2U
    371-0109 420 Watt DC Input Power Supply, RoHS:YL
    XTA-3310-DC-KIT 370-5527 DC Power Supply / Fan Module
    n/a 370-5398 420 Watt AC Power Supply / Fan Module
    Rack
    Option # Manufacturing
    Part #    		 Description
    XTA-3000-2URK-19C 370-5649 Telco Rackmount Kit, Center Mount, 2U, 19″ Wide
    XTA-3000-2URK-19F 370-5650 Telco Rackmount Kit, Flush/Front Mount, 2U, 19″ Wide
    XTA-3000-2URK-19U 370-6166 SE3000 2U Family Universal Rackmount Kit
    XTA-3310-DESK-KIT 370-6179 Sun StorEdge 3000 Family Tabletop Conversion Kit, includes outer skin with feet and screws
    XTA-3000-2URK-19CZ 371-0828 Telco Rackmount Kit, Center Mount, 2U, 19″ Wide, RoHS:YL
    XTA-3000-2URK-19FZ 371-0829 Telco Rackmount Kit, Flush/Front Mount, 2U, 19″ Wide, RoHS:YL
    XTA-3000-2URK-19UZ 371-0827 SE3000 2U Family Universal Rackmount Kit, RoHS:YL
    XTA-3310-RK-19C 370-5649 Telco Rackmount Kit, Center Mount, 2U, 19″ Wide
    XTA-3310-RK-19F 370-5650 Telco Rackmount Kit, Flush/Front Mount, 2U, 19″ Wide
    XTA-3310-RK-19L 370-5648 Rackmount Kit, 2U, 19″ Wide, 28″-36″ Deep (use with StorEdge 72″ Expansion Cabinet)
    XTA-3310-RK-19S 370-5643 Rackmount Kit, 2U, 19″ Wide, 22″-28″ Deep (use with Sun Rack 900)
    Switch/Hub
    Option # Manufacturing
    Part #    		 Description
    SG-XSW64-BASE 370-5790 64 Port Base Unit 2Gb FC Switch (32 ports included with base unit)
    SG-XSWBRO24K-MOD Brocade 24000 Director 16-port FC Switching Blade
    370-6820 16-Port Switch Module
    SG-XSWM6140-64P 370-6131 McData Intrepid 6140 140-port Switch with 64 Ports active
    SG-XSWM6140-RK64I 370-6133 McData Intrepid 6140 140-port Switch with 64 ports active in a McData Fabricenter Rack (International power)
    SG-XSWM6140-RK64P 370-6132 McData Intrepid 6140 140-port Switch with 64 ports active in a McData Fabricenter Rack (US power).
    SG-XSWMD4500-8P 370-6085 McData Sphereon 4500 24-port Switch with 8 ports activated
    SG-XSWMD4500-UPG n/a McData Sphereon 4500 8 port activation license key, activates 8 additional ports
    SG-XSWQLG5200-20P 370-7694 QLogic 5200 Switch (20 ports active)
    SG-XSWQLG5200-8P 370-7664 QLogic 5200 Switch (8 ports active)
    SG-XSW16-2GB 540-5404 Sun StorEdge Network 2GB FC Switch-16
    SG-XSW16-32P 540-4751 Sun StorEdge Network FC Switch-16
    SG-XSW64-BLADE-8P 370-5847 8 Port 2Gb FC Blade (Add up to 4 to SG-XSW64-BASE to achieve 64 ports)
    SG-XSWBRO12000-32P 370-5748 Brocade Silkworm 12000 Switch with 32 Ports
    SG-XSWBRO12000-64P 370-4749 Brocade Silkworm 12000 Switch with 64 Ports
    SG-XSWBRO24K-32P 370-6820 16-Port Switch Module
    370-7046 Brocade 24000 Director 32-Port Switch
    SG-XSWBRO3200 370-5769 Brocade Silkworm 3200 8-Port FC Switch
    SG-XSWBRO3250 370-6824 Brocade 3252 Value Line 8-Port FC Switch
    370-7047 Brocade 3250 8-Port FC Switch
    SG-XSWBRO3250VL2 370-6824 Brocade 3252 Value Line 8-Port FC Switch
    SG-XSWBRO3800 370-4949 Brocade Silkworm 3800 16-Port FC Switch
    SG-XSWBRO3850 370-6826 Brocade 3852 Value Line 16-Port FC Switch
    370-7048 Brocade 3850 16-Port FC Switch
    SG-XSWBRO3850VL2 370-6826 Brocade 3852 Value Line 16-Port FC Switch
    SG-XSWBRO3900 370-6078 Brocade Silkworm 3900 32-Port FC Switch
    SG-XSWBRO4100-16P 370-7756 Brocade Silkworm 4100 FC Switch (16 Ports)
    SG-XSWBRO4100-32P 370-7770 Brocade Silkworm 4100 FC Switch (32 Ports)
    SG-XSWMD4300-12P 370-6169 McData Sphereon 4300 12-port Switch
    SG-XSWMD6064-32P 370-5732 McData 6064 Director Switch w/32 ports
    n/a 540-4372 StorEdge Network FC Switch-8

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
