    Oracle Sun 2540-M2 server array brings together the latest FCAL and SAS-2 technologies with Oracle’s intuitive Sun Storage Common Array  Manager (CAM) software to create a NEBS Level 3 certified SAN solution.

    • Fully integrated with Oracle’s Sun Netra product portfolio
    • SAS-2 technology
    • Snapshot and volume copy features
    • 2x performance improvement over previous generation product
    • Easy-to-use CAM software for management
    • Telecommunications
    • Government
    • Education
    • Manufacturing
    • Midsize companies
    Characteristics Advantages
    Tested and certified with Oracle solutions Oracle Optimized Solutions increase efficiency, lower deployment risk, and reduce TCO
    NEBS Level 3 certification Ensures continuous high-speed data delivery even in the most rugged environments
    Sun Storage Common Array Manager Simplifies management with an easy-to-use and intuitive interface
    Optional data services Provides enhanced data protection and security
    Performance enhancer software Provides up to 2x performance improvement over previous generation arrays
    Industry leading price/performance Ideal storage foundation for midsize companies that require a balance of price and performance
    Scales to 192 drives Ability to grow as needed without being locked into an expensive initial purchase of multiple drives
    Specifications
    Mass Storage Up to 576 TB (192 * 3 TB 7.2K)
    Network & I/O Options: Four or Eight 8 Gbps fibre channel host ports or Four 6 Gbps SAS host ports
    Power/ Cooling: AC or DC
    Physical Specifications: Controller Tray: 2U, Expansion Tray: 2U
    Operating System/ Software: Solaris, Oracle Enterprise Linux, Oracle Virtual Machine, Red Hat Enterprise Linux, SuSe Enterprise Linux, Microsoft Windows, VMWare
    Optional Software: Domains, Snapshot, Volume Copy, Replication, Performance Enhancer

    Brand:

    Oracle / Sun Microsystems

    Condition:

    Refurbished and new (limited availability)

    Availability:

    Contact

    Shipping Area:

    Worldwide to most countries

    Shipping Method:

    Fedex (most orders), UPS, DHL, Freight Courier

    Price:

    Please use the quote form above for quick pricing

    Payment:

    Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)

    Guarantee:

    All items are tested by Oracle trained technicians & backed by a 100% warranty

    Questions?

    Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

     DATASHEET DOWNLOAD:

    [themify_button text=”#2e8749″ bgcolor=”green” size=”xlarge” link=”https://docs.oracle.com/cd/E20734_01/html/E36765/index.html“]Sun Storage 2500-M2 Datasheet [/themify_button]

    [themify_button text=”#2e8749″ bgcolor=”green” size=”large” link=”https://docs.oracle.com/cd/E20734_01/html/E36765/index.html”]Sun Storage 2500-M2 Arrays Hardware Release Notes[/themify_button]



    Oracle Sun Storage 2540-M2 Server Specs and Information:

    Disks

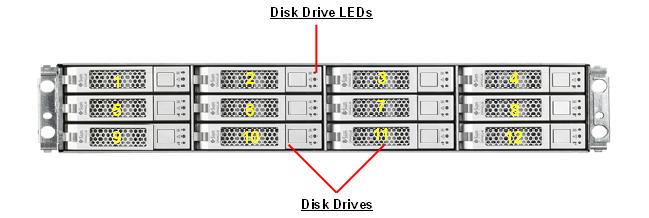

    Sun Storage 2540-M2 Array Up to twelve disk drives as follows:
    • 300GB 15000 RPM, 6 Gb/sec SAS-2
    • 600GB 15000 RPM, 6 Gb/sec SAS-2
    Capacity
    300GB Disk drives 12 x 300GB = 3.6TB
    600GB Disk drives 12 x 600GB = 7.2TB
    Drive Specifications Form factor: 3.5 in., low-profile
    Interface: Dual-ported SAS-2
    Note 1: Dynamic capacity expansion of 5 to 48 drives – 600 GB to 28.8 TB
    Note 2: Up to three expansion trays are supported.
    Note 3: Drive depopulation scales from 5 to 12 disk drives per tray.
    Note 4: RAID Levels: 0, 1, 10, 3, 5, 6, (P+Q)
    Note 5: Cache Battery Backup: Up to 72 hours (depending on cache size)
    Interfaces
    Host interfaces/link speeds 4 × 8Gbps auto-negotiating FC ports, up to 2GB cache per controller, with option to upgrade to 8 ports
    Other interfaces Up to two 10/100 Base-T Ethernet
    Serial Up to two nine-pin RS-232 ports per dual controller tray
    Environment
    Heat Output 1366 BTU/hr
    AC Power 100-240V ~, 7.0-2.9A, 50/60Hz
    DC Power -42 to -60Vdc, 21.7-15.3A
    Temperature Operating: 10° C to 40° C (50° F to 104° F)
    Maximum rate of change: 15° C (59° F) per hour
    Storage:     -10° C to 50° C (14° F to 122° F). Maximum rate of change: 10° C (50° F) per hour
    Transit: -40° C to 140° C (-40° F to 140° F)
    Maximum rate of change: 20° C (68° F) per hour
    Relative Humidity Operating: 20% to 80% relative humidity, noncondensing. 10° C (50° F) per hour gradient (max)
    Storage: 10% to 90% relative humidity. 15° C (59° F) per hour gradient (max)
    Transit: 5% to 90% relative humidity. 20° C (68° F) per hour gradient (max)
    Dewpoint: 26° C (79° F) max
    Altitude Operating: 30.5 m (100 ft) below sea level to 3000 m (9840 ft) above sea level
    Storage: 30.5 m (100 ft) below sea level to 3000 m (9840 ft) above sea level
    Tranist: 30.5 m (100 ft) below sea level to 12000 m (40000 ft) above sea level
    Acoustic Sound Power: 6.2 bels (max – standby operation)
    Sound Pressure: 6.2 bels (max – standby operation)
    Shock Operating: 10-g peak acceleration, 5 ms duration, 1/2 sine pulse
    Non-Operating: 20-g peak acceleration, 8ms duration, trapezoidal pulse
    Vibration Operating: 5-500-5 Hz, sinusoidal
    Non-Operating: 5-500-5 Hz, sinusoidal, 1 octave per minute, flat profile .50 G
    Dimensions and Weights
    Height 86.4 mm (3.4 in)
    Width 482.6 mm (19 in)
    Depth 552.5 mm (21.75 in)
    Weight (maximum) 27 kg (59.52 lb)
    Regulations
    Note: Meets or exceeds the following requirements.
    Safety UL, C-UL, CE, BSMI (DoC), GOST
    Emissions/Immunity FCC Class A, ICES-003 Class A, VCCI Class A, EN55022 Class A/EN55024 (CE), CNS13438 (BSMI DoC), AS/NZS CISPR22 (C-Tick), KN22/KN24 (KC)
    NEBs Level 3 GR-63 CORE requirements, GR-1089 CORE requirements
    Rack Mounting
    Rack mountable in 19 inch-wide rack
    Clearance and Service Access
    Front 76 cm (30 in)
    Rear 61 cm (24 in)
    Airflow for cooling is from front to rear.



    Array Controller
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7010741 1GB FC-AL Controller Module Assembly n/a
    • 371-4582 [C]
    • 8Gb/Sec Short Wave SFP Transceiver
    		 n/a
    • 7010619 [C]
    • Battery
    		 n/a
    • 7011559 [C]
    • 1GB FC-AL Controller Module
    		 n/a
    n/a 7010746 [C] Expansion I/O Controller Module (2501-M2) n/a
    n/a 7048982 1GB FC-AL Controller Module Assembly 7010741
    • 7010619 [C]
    • Battery
    		 n/a
    • 7011559 [C]
    • 1GB FC-AL Controller Module
    		 n/a
    • 7048837 [C]
    • 8Gb/Sec Short Wave SFP Transceiver
    		 371-4582 [C]
    n/a 7054272 2GB FC-AL Controller Module Assembly n/a
    • 7010619 [C]
    • Battery
    		 n/a
    • 7048837 [C]
    • 8Gb/Sec Short Wave SFP Transceiver
    		 371-4582 [C]
    • 7053343 [C]
    • 2GB FC-AL Controller Module
    		 n/a
    Backplane/Centerplane
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7010610 Chassis and Midplane Assembly n/a
    • n/a
    • Midplane
    		 n/a
    • 7010611
    • Chassis
    		 n/a
    n/a 7056265 Chassis and Midplane Assembly 7010610
    • 7010611
    • Chassis
    		 n/a
    • n/a
    • Midplane
    		 n/a
    Batteries
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7010619 [C] Battery n/a
    Cables
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 530-3100 [C] RJ45F to DB9F Adapter n/a
    n/a 530-3544 [C] PS2 6-pin DIN to RJ-45 Cable (2M) n/a
    n/a 530-3880 [C] RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M n/a
    n/a 530-3882 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M n/a
    Chassis
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7011135 [F] Chassis Assembly [SKU] n/a
    • 7010610
    • Chassis and Midplane Assembly
    		 n/a
      • n/a
      • Midplane
    		 n/a
      • 7010611
      • Chassis
    		 n/a
    • 7010656 [C]
    • 585 Watt AC Input Power-Fan Module
    		 n/a
    n/a 7058340 [F] Chassis Assembly [SKU] n/a
    • 7010656 [C]
    • 585 Watt AC Input Power-Fan Module
    		 n/a
    • 7056265
    • Chassis and Midplane Assembly
    		 7010610
      • 7010611
      • Chassis
    		 n/a
      • n/a
      • Midplane
    		 n/a
    n/a 7066796 [F] Chassis Assembly [SKU] n/a
    • 7056265
    • Chassis and Midplane Assembly
    		 7010610
      • 7010611
      • Chassis
    		 n/a
      • n/a
      • Midplane
    		 n/a
    • 7066557 [C]
    • 585 Watt AC Input Power-Fan Module
    		 7010656 [C]
    Disks
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7100414 [S] 7010626 [C] 300GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
    • 390-0461
    • Seagate ST3300657SS [ST330057SSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0481
    • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
      (300GB – 15000 RPM – SAS Disk)
    		 n/a
    • 7077829
    • Bracket
    		 540-7216
    7100415 [S] 7012636 [C] 600GB – 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
    • 390-0463
    • Seagate ST3600057SS [ST360057SSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 390-0483
    • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
      (600GB – 15000 RPM – SAS Disk)
    		 n/a
    • 7077829
    • Bracket
    		 540-7216
    7103502 [S] 7018717 [C] 3TB – 7200 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
    • 7010033
    • Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7021037
    • Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB – 7200 RPM – SAS Disk)
    		 n/a
    • 7077829
    • Bracket
    		 540-7216
    7106972 [S] 7077588 [C] 600GB – 10000 RPM Disk Assembly with 1 bracket and 1 disk: n/a
    • 7045228
    • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)
    		 n/a
    • 7077832
    • Apollo Bracket
    		 n/a
    n/a 540-7216 Bracket n/a
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7105393 7053435 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex n/a
    SG-XPCIE1FC-EM8-Z 371-4295 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    7053433 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCIE1FC-QF8-Z 371-4324 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCIE2FC-EM8-Z 7053434 8Gigabit/Sec PCI Express Dual FC Host Adapter 371-4306
    SG-XPCIE2FC-QF8-Z 371-4325 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    SG-XPCIEFCGBE-Q8-Z 371-4522 2 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic n/a
    7100822 [S] 4 × 8Gbps Short Wave SFPs, X-Option
    7048837 [C] 8Gb/Sec Short Wave SFP Transceiver 371-4582 [C]
    7105389 [S] Gigabit/Sec PCI Express Dual FC Host Adapter for EU Countries
    7053427 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    7105390 [S] 4Gigabit/Sec PCI Express Single FC Host Adapter for EU Countries
    7053428 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
    7105391 [S] 8Gigabit/Sec PCI Express Single FC Host Adapter
    7053433 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCI1FC-EM4-Z [S] 375-3398 4Gb PCI-X Single FC Host Adapter n/a
    SG-XPCI1FC-QF4 [S] 375-3354 4Gb PCI-X Single FC Host Adapter n/a
    SG-XPCI2FC-EM4-Z [S] 7058528 4Gb PCI-X Dual FC Host Adapter 375-3399
    SG-XPCI2FC-QF4 [S] 7060890 4Gb PCI-X Dual FC Host Adapter 375-3294
    SG-XPCIE1FC-EM4 [S] 375-3396 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
    7053428 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCIE1FC-QF4 [S] 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCIE2FC-EM4 [S] 375-3397 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    7053427 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    SG-XPCIE2FC-QF4 [S] 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    SG-XPCIE2FCGBE-E-Z [S] 371-4018 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex n/a
    SG-XPCIE2FCGBE-Q-Z [S] 371-4017 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic n/a
    SG-XPCIEFCGBE-E8-Z [S] 371-4666 3 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex n/a
    n/a 371-4306 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    n/a 371-4582 [C] 8Gb/Sec Short Wave SFP Transceiver n/a
    n/a 375-3294 4Gb PCI-X Dual FC Host Adapter n/a
    n/a 375-3399 4Gb PCI-X Dual FC Host Adapter n/a
    n/a 7048866 [C] 4Gb/Sec Short Wave SFP Transceiver n/a
    2 Two SFPs are included, see component page for more information.
    3 Two SFPs are included, see component page for more information.
    NOTE: These Host Bus Adapters install in the host server. See the host server’s Full Components List for FRU/CRU status.
    Miscellaneous
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7010740 2540 M2 Ship Kit n/a
    • 530-3100 [C]
    • RJ45F to DB9F Adapter
    		 n/a
    • 530-3544 [C]
    • PS2 6-pin DIN to RJ-45 Cable (2M)
    		 n/a
    • 530-3880 [C]
    • RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M
    		 n/a
    • 371-1107 [C]
    • DB-9F / RJ-45 Serial Adapter
    		 n/a
    • 7021131
    • Left and Right End Cap Set
    		 n/a
      • 7010624
      • Right End Cap
    		 n/a
      • 7010625
      • Left End Cap
    		 n/a
    n/a 7010744 2501-M2 Ship Kit n/a
    • 530-3882 [C]
    • 4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M
    		 n/a
    • 7010624
    • Right End Cap
    		 n/a
    • 7010625
    • Left End Cap
    		 n/a
    Power
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7010640 [C] 585 Watt DC Input Power-Fan Module n/a
    • 7012848 [C]
    • DC Input Power Supply Cord, 4M, #10AWG
    		 n/a
    n/a 7010656 [C] 585 Watt AC Input Power-Fan Module n/a
    n/a 7066557 [C] 585 Watt AC Input Power-Fan Module 7010656 [C]
    n/a 7066558 [C] 585 Watt DC Input Power-Fan Module n/a
    • 7012848 [C]
    • DC Input Power Supply Cord, 4M, #10AWG

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
