Oracle Sun SPARC T5-8 SPARC Server – Price & Specs

Oracle Sun SPARC T5-8 SPARC Server – Price & Specs sun server t5 8

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

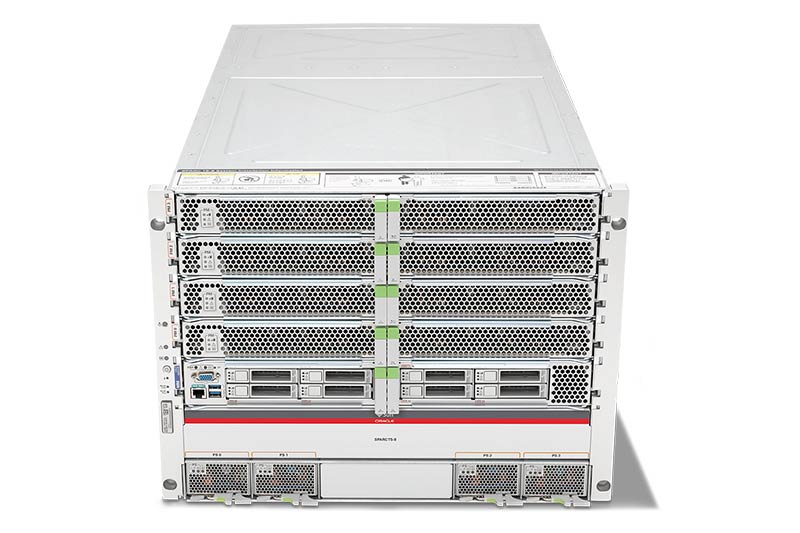

    Oracle Sun SPARC T5-8 Server

    Oracle’s Sun SPARC T5-8 server is the world’s fastest single server for Oracle Database. Configured to accelerate enterprise applications, this high-end server delivers extreme performance and outstanding virtualization capabilities in a compact design.  The SPARC T5-8 server is a compact, modular 8U system which is redefining the enterprise UNIX market with superior performance, outstanding I/O expandability, and unmatched RAS features. Utilizing modular design architecture, the SPARC T5-8 server is powered by eight SPARC T5 CPUs—Oracle’s fastest SPARC chip ever—delivering a 1.2x improvement in single-thread performance with a 2x improvement in throughput over the previous generation. SPARC T5 CPUs are directly attached to each other in a glueless 1-hop configuration that results in extremely low latency and increased application acceleration. With 16 cores and 16 memory slots per SPARC T5 processor, the SPARC T5-8 server provides extreme compute density with up to 128 cores and 4 TB of system memory, all within an 8U enclosure.

    • Uses the fastest microprocessor in the world, delivering 2.5x better price/performance for database applications
    • The fastest single server for Oracle Fusion Middleware with a 12x cost-performance advantage over the IBM Power 780 system
    • Lowers costs and improves efficiency by using built-in, zero-overhead virtualization capabilities to run multiple workloads on one system
    • Provides the most comprehensive lifecycle management framework available today
    • In combination with Oracle Solaris, accelerates a broad range of Oracle and non-Oracle software applications with mission-critical reliability, availability, and serviceability



    [themify_button bgcolor=”green” nofollow=”no” link=”https://www.greentecsystems.com/wp-content/uploads/2015/08/Oracle-Sun-Sparc-T5-8-specs-and-datasheet.pdf” color=”#ff0000″]Data & Spec Engineer Sheet (PDF) Here[/themify_button]

    DATA & SPECIFICATION SHEET PDF, HERE

    • Extreme performance and price/performance with the world’s fastest microprocessor

      • The fastest single server for Oracle Database, and the fastest single server for Oracle Fusion Middleware, with a 12x price-performance advantage over the IBM Power 780

    • Built-in encryption security with no performance overhead

      • Provides high levels of security, without sacrificing application performance, using integrated, on-chip crypto acceleration

    • Innovative, efficient 8-way design to run busineOracle Sun Sparc T5-8 specs and datasheetss-critical workloads

      • Faster subsystem access to main memory and faster I/O technology helps avoid transaction bottlenecks

    • Zero overhead virtualization with Oracle VM Server for SPARC

      • Maximizes system utilization by avoiding virtualization overhead and improves consolidation efficiency

    • The most comprehensive lifecycle management with Oracle Enterprise Manager Ops Center

      • Lowers TCO with a unified portfolio of tools for managing systems and cloud environments, including no-cost tools that work across all of Oracle’s hardware and operating systems

    • Runs Oracle Solaris 11 (recommended by Oracle for enhanced performance and functionality) and can also run Oracle Solaris 10, 9, and 8

      • Protects application software investments by moving existing Solaris applications unchanged to a faster system with the latest operating system version

    • Improved deployment efficiency with Oracle Optimized Solutions for SPARC

      • Dramatically reduces time, effort, and risk when deploying Oracle and third-party applications

    • Hardware and software engineered together

      • Superior value and business agility



    Small Medium Large
    System List Price US$115,842.00 US$170,384.00 US$220,224.00
    Greentec Systems Discounted Price $ Contact $ Contact $ Contact
    Processor Yes Yes Yes
    Processor Board SPARC T5 CPU SPARC T5 CPU SPARC T5 CPU
    Processor Core 16 Cores 16 Cores 16 Cores
    Clock Speed 3.6 GHz 3.6 GHz 3.6 GHz
    Max # of Processors Eight Eight Eight
    Compute Threads 1024 1024 1024
    Installed Processors Four Eight Eight
    Cache Shared: Eight megabytes L3; Dedicated 128 K L2 Shared: Eight megabytes L3; Dedicated 128 K L2 Shared: Eight megabytes L3; Dedicated 128 K L2
    Built-In Security On-chip Encryption Instruction Accelerators with direct non-privileged support for 16 industry-standard cryptographic algorithms plus random number generation in each of the sixteen cores: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 On-chip Encryption Instruction Accelerators with direct non-privileged support for 16 industry-standard cryptographic algorithms plus random number generation in each of the sixteen cores: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512 On-chip Encryption Instruction Accelerators with direct non-privileged support for 16 industry-standard cryptographic algorithms plus random number generation in each of the sixteen cores: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-224, SHA-256, SHA-384, SHA-512
    Memory One Terabytes Two Terabytes Four Terabytes
    Max Memory Four Terabytes Four Terabytes Four Terabytes
    Max # of Memory Slots 128 128 128
    Reliability, Availability & Serviceability (RAS) Redundant, hot-plug fans, disks, and power supplies. Hot-plug PCIe cards utilizing a PCIe hot-plug carrier. Redundant, hot-plug fans, disks, and power supplies. Hot-plug PCIe cards utilizing a PCIe hot-plug carrier. Redundant, hot-plug fans, disks, and power supplies. Hot-plug PCIe cards utilizing a PCIe hot-plug carrier.
    Mass Storage 600 GB (2 x 300 GB) 10,000 RPM, 2.5-inch SAS Disks 2,400 GB (8 x 300 GB) 10,000 RPM, 2.5-inch SAS Disks 4,800 GB (8 x 600 GB) 10,000 RPM, 2.5-inch SAS Disks
    Internal Disk Bays Eight Eight Eight
    Max Internal Capacity 4,800 GB 4,800 GB 4,800 GB
    Optical Drive DVD-RW (via rKVMS) DVD-RW (via rKVMS) DVD-RW (via rKVMS)
    Network & I/O Options – – –
    Ethernet Port Four x 10 GbE (100 Mbps/1 Gbps/10 Gbps) Four x 10 GbE (100 Mbps/1 Gbps/10 Gbps) Four x 10 GbE (100 Mbps/1 Gbps/10 Gbps)
    USB Port Four x USB 3.0 External; One x USB 2.0 Internal Four x USB 3.0 External; One x USB 2.0 Internal Four x USB 3.0 External; One x USB 2.0 Internal
    Serial Port RJ45 serial management port RJ45 serial management port RJ45 serial management port
    I/O Slot PCIe 3.0 PCIe 3.0 PCIe 3.0
    I/O Max Slots 16 16 16
    Power/Cooling – – –
    Power Supply Four x hot-swappable AC 3,000 W redundant (1 + 1) power supplies Four x hot-swappable AC 3,000 W redundant (1 + 1) power supplies Four x hot-swappable AC 3,000 W redundant (1 + 1) power supplies
    Redundant Fans 10 x hot-swappable fan modules 10 x hot-swappable fan modules 10 x hot-swappable fan modules
    Power Consumption Maximum operating input power at 200-240 V AC: 6,500 W Maximum operating input power at 200-240 V AC: 6,500 W Maximum operating input power at 200-240 V AC: 6,500 W
    Physical Specifications – – –
    Dimensions Height: 350 mm (13.8 in)
    Width: 445 mm (17.5 in.)
    Depth: 800 mm (31.5 in.)    		 Height: 350 mm (13.8 in)
    Width: 445 mm (17.5 in.)
    Depth: 800 mm (31.5 in.)    		 Height: 350 mm (13.8 in)
    Width: 445 mm (17.5 in.)
    Depth: 800 mm (31.5 in.)
    Rack Unit Dimensions Eight Units Eight Units Eight Units
    Weight Approx. 118.6 kg (261.5 lbs.), without rackmount kit Approx. 118.6 kg (261.5 lbs.), without rackmount kit Approx. 118.6 kg (261.5 lbs.), without rackmount kit
    Placement One rack mount kit included in base One rack mount kit included in base One rack mount kit included in base
    Cable Management Arm One cable management arm included in base One cable management arm included in base One cable management arm included in base
    Regulations Yes Yes Yes
    RoHS Compliance Yes Yes Yes
    Certifications CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, KCC, UL/cUL, UL/S-Mark CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, KCC, UL/cUL, UL/S-Mark CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, KCC, UL/cUL, UL/S-Mark
    Immunity EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
    RFI/EMC EN 55022 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, AS/NZ 3548 Class A, CNS 13438 Class A, KSC 5858 Class A, EN 61000-3-2, EN 61000-3-3 EN 55022 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, AS/NZ 3548 Class A, CNS 13438 Class A, KSC 5858 Class A, EN 61000-3-2, EN 61000-3-3 EN 55022 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, AS/NZ 3548 Class A, CNS 13438 Class A, KSC 5858 Class A, EN 61000-3-2, EN 61000-3-3
    Safety UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country deviations, IEC 825-1, 2 CFR 21 part 1040, CNS 14336 UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country deviations, IEC 825-1, 2 CFR 21 part 1040, CNS 14336 UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country deviations, IEC 825-1, 2 CFR 21 part 1040, CNS 14336
    Operating System/Software Oracle Solaris 11.1 Oracle Solaris 11.1 Oracle Solaris 11.1

    Processor

    Number

    Up to eight SPARC T5 16­Core 3.6GHz processors

    Architecture

    SPARC V9 architecture, ECC protected

    CPUs

    3.6GHz 16­Core
    Up to 8 processors
    Up to 128 threads per processor for a maximum 1,024 threads per system Cache Per Processor: Shared 8 MB, 8 banked, Level 3 Cache; 128 KB Level 2 unified cache per core
    Sixteen floating­point units per SPARC T5 processor
    On­chip Encryption Instruction Accelerators with direct non­privileged support for 16 industry­standard cryptographic algorithms plus random number generation in each of the sixteen cores: AES, Camellia, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA­1, SHA­224, SHA­ 256, SHA­384, SHA­512

    Cache memory

    4MB integrated L3 with a private L2 128K cache

    Main Memory

    Capacities

    Total DIMM slots: 128 DIMM type:

    DDR3L­1600/PC3L­12800 (runs at 1066 MHz)

    DDR3L­1333/PC3L­10600
    DIMM size: 16GB and 32GB
    Minimum Configuation: 2TB (128 × 16GB) Maximum capacity: 4TB (128 × 32GB)

    file:///C:/Users/ome/Documents/Grentec/ITEM%20LIST/SPARC%20T5­8%20­%20Hardware%20Specifications.html 1/4

    2/3/2016 SPARC T5­8 ­ Hardware Specifications

    Standard Integrated Interfaces

    Network

    4 × 100Mbps/1Gbps/10Gbps ports (rear)

    Network Management

    One dedicated 10/100Base­T NET MGT port (rear)
    Note: This port does not support connections to Gigabit networks.

    Serial Management

    Two RJ­45 SER MGT ports (1 front, 1r rear)
    An additional serial management port is located on the main module and is accessible from the front panel.

    Remote Management

    Onboard system processor, running Integrated Lights Out Manager (ILOM) 3.21

    Graphics

    Two high­density DB­15 video ports (1 front, 1 rear)

    USB

    Front: 2 USB 3.0 Ports Rear: 2 USB 3.0 Ports Internal: 2 USB 2.0 Ports

    PCI Expansion Slots

    16 low­profile PCI­Express 3.0 slots (x8 wired) accessed via a PCIe hot­plug carrier

    Internal Mass Storage

    Disks

    Up to eight 2.5­inch SAS drives
    300GB and 600GB 2.5­inch SAS disk drives, or 100 GB or 300 GB SSDs RAID 0, 1 and 1E support
