Oracle Sun SPARC T5-1B Server

REQUEST A PRICE QUOTE:

Processor
Number	Single Socket.
Architecture	Type:SPARC V9 architecture, ECC protected Core/Speed/Threads: 16-Core, 3.6GHz, 128.
Cache Memory	Shared 8 MB, 8 banked, L3; 128 KB Level 2 unified cache per core.
Main Memory
Capacities	Total DIMM slots: 16 on system board DIMM type: DDR3 DIMM size: 8GB, 16GB or 32GB Minimum Configuation: 128GB (16 × 8GB) Maximum capacity: 512GB (16 × 32GB)
Internal Storage
Disk	Up to two internal 300 GB or 600 GB 10,000 rpm SAS disk drives, or 100 GB SATA solid state drives. The controller is capable of supporting integrated RAID levels 0, 1.
Management Environment
Service Processor (SP)	The SP card is installed with Oracle Integrated Lights-Out Manager (ILOM) software. ILOM can be accessed via the RJ45 serial port provided by the Dongle cable assembly connected to the Universal Connector Port (UCP) on the front of the SPARC T5-1B. The Dongle cable assembly is provided with the Sun Blade 6000 chassis and also orderable. Built-in Integrated Lights Out Manager (ILOM) service provides the following features: Accessible from the host operating system Remote keyboard, video, mouse and storage (RKVMS) Rich standards support: WS-MAN IPv6 SSH 2.0 LDAP, Microsoft Active Directory, and Radius Support Email/SMTP alerts, fully configurable remote syslog System serial console redirection via serial port and LAN Integration with automatic service request (ASR) for qualified products to automatically initiate service when specific hardware faults occur
Standard Integrated Interfaces
Network	Two 10/100/1000 Base-T Ethernet ports using the Intel Ethernet Controller I350. One dedicated 10/100 Base-T Ethernet port for the management network which can be optionally shared with the main network ports if desired.

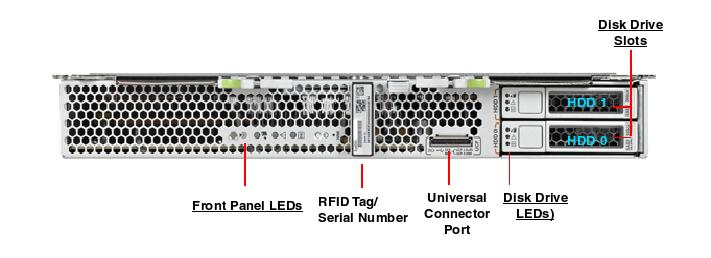

Front Panel I/O	Exposed via dongle cable: One RJ-45 serial console to server module Oracle ILOM. Three USB 2.0 ports (2 external via dongle and 1 internal accepting USB drive). One VGA port.
Midplane I/O	Four x8 PCIe busses: Two dedicated to NEMs, two dedicated to EMs. Four SAS-2 interfaces, two per NEM. Two 10/100/1000 GbE interfaces, one per NEM. 10/100 Ethernet management port to CMM. Cards that are categorized as PCIe 3.0 are qualified to run with the T5-1B, however due to midplane restriction, will only run at 2.0 speeds. Between switch and CPU, the Blade runs at PCIe 3.0. However due to the midplane connector capabilities, from switch to the EM/NEM the speed is limited to PCIe 2.0.
Dimensions and Weights
Height	44.5mm (1.8 in).
Width	327.2mm (12.9 in).
Depth	511.7 (20.1 in).
Weight	7.7 kg (17 lbs). (fully configured)

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C]	3V Lithium Coin Cell Battery	n/a

Blade
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7309325 [F]	SPARC T5-1B 16-Core 3.6GHz System Board Assembly (reworked 7078262)	n/a
	7027320	2-Slot Disk Backplane	n/a
	7078259	System Board Sub Assembly	n/a
	525-2146	SSCC NVRAM	n/a
	7309324	System Board Assembly without enclosure	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
n/a	7052321 [F] [S]	SPARC T5-1B 16-Core 3.6GHz System Board Assembly	n/a
	7027320	2-Slot Disk Backplane	n/a
	7064450	System Board Sub Assembly	n/a
	525-2146	SSCC NVRAM	n/a
	7064803	System Board Assembly without enclosure	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
n/a	7078262 [F] [S]	SPARC T5-1B 16-Core 3.6GHz System Board Assembly (reworked 7052321)	7052321 [F] [S]
	7027320	2-Slot Disk Backplane	n/a
	7078259	System Board Sub Assembly	n/a
	525-2146	SSCC NVRAM	n/a
	7078261	System Board Assembly without enclosure	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7105212	7064133 [C]	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7066794	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7105214	7064135 [C]	600GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7107550	7077233 [C]	400GB Solid State SATA Drive Assembly	n/a
	7076379	Intel SSDSC2BA400G3S [ITVSC2BA3SUN400] (400GB – 2.5″ Solid State – SATA-3 Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7101423 [S]	7017183 [C]	100GB Solid State SATA Drive Assembly	n/a
	7017177	Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB – 2.5″ Solid State – SATA Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100633 [S]	7041170 [C]	PCI Express Pass Through Fabric Expansion Module (FEM)	n/a
X4871A-Z-N [S]	7051229 [C]	Dual 10Gbps Ethernet Fabric Expansion Module (FEM)	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7104199	16GB Memory Expansion (1 × 16GB) Option
7104199	7042210 [C]	16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)	n/a
7104201	32GB Memory Expansion (1 × 32GB) Option
7104201	7042211 [C]	32GB DDR3L-1066/DDR3L-1333 DIMM	n/a
7104197 [S]	8GB Memory Expansion (1 × 8GB) Option
7104197 [S]	7042208 [C]	8GB DDR3L-1600/PC3L-12800 DIMM	n/a
n/a	7051724 [C]	16GB DDR3L-1600/PC3L-12800 DIMM	n/a
n/a	7301397 [C]	8GB DDR3L-1600/PC3L-12800 DIMM	n/a
n/a	7301416 [C]	16GB DDR3L-1600/PC3L-12800 DIMM	n/a
n/a	7301418 [C]	32GB DDR3L-1333/PC3L-10600 DIMM	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066335 [C]	Service Processor Assembly	n/a
	350-1614	Service Processor Cover	n/a
	7066333	Service Processor	n/a
