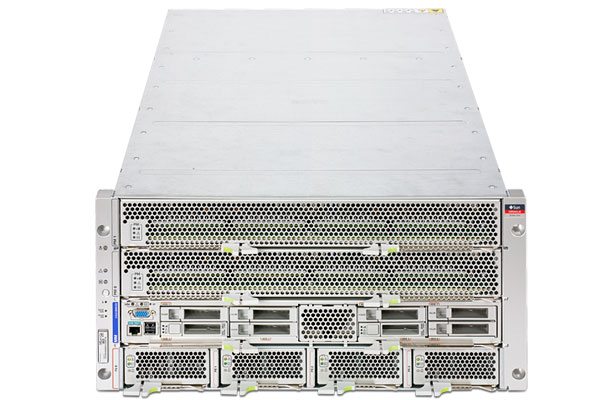

The Oracle Sun SPARC T3-4 Server is an incredibly efficient system that’s perfect for enterprise-class consolidation and virtualization. Equipped with as many as four 16-core SPARC T3 processors, the Sun SPARC T3-4 Server scales to 512 gigabytes of RAM via four 8-gigabyte DIMMs and 2.4 terabytes of internal disk storage with eight 2.5” 300-gigabyte SAS drives. Sun engineers designed the SPARC T3-4 with a variety of applications in mind, including Java, virtualization, CRM, ERP, SCM, web serving and multimedia, among others.

As mid-range enterprise servers, Sun T3-4 rack servers offer dense computing capabilities due to their large maximum memory capacity as well as their exceptional reliability, availability and security (RAS) features. In addition to these great features, Sun T3-4 servers also feature a fully integrated design with support for the virtualization and consolidation requirements of your data center’s mission-critical applications. The built-in virtualization capabilities of the T3-4 rack servers also endow them with high throughput and computing density, particularly since the virtualization capabilities are paired with exceptional scalability. Another reason that Sun T3-4 servers offer such a high throughput is due to the number and type of processors they are configured with. T3-4 servers can be configured with either 2 or 4 SPARC T3 processors, and each SPARC T3 processor features 16 cores. As a result, Sun T3-4 servers can support the simultaneous execution of up to 512 compute threads.

Another advantage that the incredibly dense SPARC T3 processors bring the Sun SPARC T3-4 servers is a maximum memory capacity of up to 512 Gigabytes (GB). And since up to 8 5U Sun T3-4 rack servers can fit within a single standard data center rack, that amount of highly dense computing power makes them ideal for mission-critical, back-office applications as well as others such as web serving, java applications and virtualization, consolidation of enterprise web and application tier infrastructure, and enterprise applications including Customer Relationship Management (CRM), Enterprise Resource Planning (ERP) and Software Configuration Management (SCM). Furthermore, Sun SPARC T3-4 servers offer robust I/O performance through support for up to 16 PCI-Express (PCIe) slots, as well as the option of an I/O Expansion unit that can provide the T3-4 with up to 4 times the I/O performance of its predecessor.

Processor

SPARC T3 processor facilitates high throughput performance and minimizes power consumption

• High throughput from max. 16 cores and 128 threads per processor
• Data protection; Error Check and Correct (ECC) level2 Cache; Parity level1 cache
• High availability ; failed cores or threads are off-lined
• Each core has dual integer calculation logic and single floating point calculation logic
• With 40 nm technology, Stream Processing Unit encrypt/decrypt 10 major cipher functions, and on-chip PCI-Express interface provides 4GB/s throughput per link.

High Performance

Performance tuned for high transaction applications.

• Compact 5U form factor with Max.512 executable threads
• Wider memory bandwidth at 1066 Mega Transaction/sec
• I/O throughput ; Around four times that of former corresponding T-series models
• PCI-Express and Serial Attached SCSI, high speed serial interface support
• Rich network capacities with 4 ports 1Gbps Ethernet cards embedded and Max. 8 ports 10Gbps Ethernet card mountable

No downtime

Hardware availability comprehensively assured by data protection and component redundancy.

• Memory Page Retirement retires memory pages with correctable errors and allocates a clean page ; It also isolates memory pages with uncorrectable errors and allocates a clean page
• All major components including HDD, Power Supply Units and Fans can be redundantly configured and hot-swapped
• Even at a processor module failure, the SPARC T3-4 can continue its operation with replacement of the faulty module (*1)
• Local and remote (via LAN) server environment control with in-built ILOM (Integrated Lights Out Manager) service management processors

Virtualization

Operational cost reductions with partitioning and management software.

• Simple upgrade by Physical to Virtual conversion tools for Oracle VM Server for SPARC(Logical Domains) and Oracle Solaris Containers
• Oracle VM Server for SPARC(Logical Domains) Direct I/O provides high performance for I/O intensive applications
• Oracle VM Server for SPARC(Logical Domains) Dynamic Reconfiguration can flexibly and dynamically change servers resources such as processors, memory, and Virtual I/O
• Oracle Solaris Containers ; Simplifies system environment and business change modifications

Investment Protection

SPARC/Oracle Solaris provides the certainty that protects your system assets and provides mission critical service.

• Oracle Solaris, No.1 market share, UNIX OS (based on UNIX System V Release 4)
• Application binary compatibility, ensures all your applications will run without change or recompilation
• SPARC T3 and Oracle Solaris conform to the same SPARC V9 open processor architecture as all other SPARC processors and operating system versions. This provides the most stable roadmap into the future

Efficient

SPARC T3-4 can halve the power consumption compared with similar performance of former models. Power consumption can be further reduced with Power Management (Oracle VM Server for SPARC 2.0).

• CPU clock increases or decreases as processor utilization increases or decreases
• Underutilized memory automatically operates in idle mode to save power
• Power Management can be used to reduce power based on consumption limit settings
