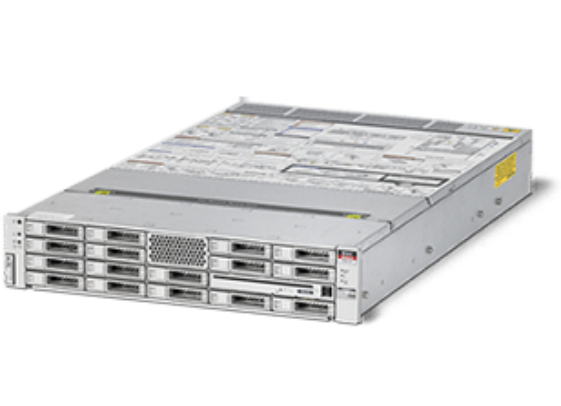

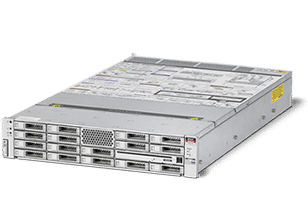

Refurbished Oracle Sun SPARC T3-1 Server

Oracle Sun SPARC T3-1 Server Specs Pricing Information

REQUEST A PRICE QUOTE:

Oracle Sun SPARC T3-1 Sun server, powered by a 16-core SPARC T3 processor and a 128-thread, general-purpose server offered in a 2 RU enclosure rackmount. It offers up to 16 cores and up to 128 simultaneous threads onto a single piece of silicon, together

with the key functions of an entire system on a single chip—computing, networking, security, and I/O.
Oracle SPARC T3-1 delivers highly expandable internal storage and network connectivity: the server can be configured with up to 16 disk drives and six PCI Express cards including the optional Oracle Sun Flash Accelerator F20 PCIe card and many other I/O options.
The Oracle Sun SPARC T3-1 server offers Oracle VM for SPARC 2.0 and Oracle Solaris Containers enabling ultimate server virtualization and consolidation at a fraction of the cost of other vendors.
Finally, with integrated on-chip 10 Gigabit Ethernet and cryptographic acceleration, as well as smart integrated design using fewer parts, the SPARC T3-1 server offers a very safe and reliable platform to help you deploy applications. Oracle Sun T3-1




	Oracle Sun T3-1 Processor
 One16-core1.65GHzSPARCT3processor,SPARCV9architecture,ECC protected  6 MB integrated Level 2 (L2) cache  Dualmultithreaded10GigabitEthernetPCIintegratedonthechip  On-boardcryptographysupportingembeddedsecurityindustry-standard cryptographic algorithms: AES, CRC32c, DES, 3DES, DH, DSA, ECC, Kasumi, MD5, RSA, SHA-1, SHA-256, SHA-384, SHA-512, plus random number generation (Note: CRC32c and Kasumi not currently supported by Solaris)
	Oracle Sun T3-1 Main Memory
 16 DIMM slots  System maximum of 128 GB  Support for 2 GB, 4 GB, and 8 GB DDR3 DIMMs
	Oracle Sun T3-1 Interfaces
 Four 10/100/1000 Mb/sec Ethernet ports  Up to 2x optional 10 GbE XAUI connections  SixPCIExpress2.0slots  One RJ-45 serial management port and one RJ-45 network port for remote management  FourUSB2.0ports  One HD15 VGA port  One optional front accessible slim line SATA DVD+/-RW drive
	Oracle Sun T3-1 Storage
		Up to eight or sixteen 2.5” SAS-2/SATA-2 front accessible hot pluggable disk drive bays, depending on selected backplane All bays can be populated with 300 GB or 600 GB SAS-2 hard disk drives. 32 GB SATA-2 Solid state drives are supported in the 8 disk backplane only. Optional Sun Flash Accelerator F20 PCIe adapter card
	Internal disk:

		Oracle offers a complete line of best-in-class, innovative storage hardware, software, and solutions— including tape drives, tape libraries, disk storage systems, data management software, and more—along with renowned world-class service and support.

Sun T3-1 Processor

Number

One SPARC T3 16-Core 1.65GHz processor

Architecture

SPARC V9 architecture

CPUs

1.65GHz 16-Core
128 threads max
Sixteen floating-point units
Dual multithreaded 10 GbE PCI integrated onto chip
On-board cryptography with new Kasumi Bulk algorithm, supporting 12 embedded security industry-standard ciphers:
DES, 3DES, AES, RC4, SHA1, SHA256, SHA384, SHA512, MD5, RSA to 2048 key, EX, CRC32

Cache memory

6MB integrated L2

Oracle Sun T3-1 Main Memory

Capacities

Total DIMM slots: 16 on system board
DIMM type: DDR3
DIMM size: 2GB, 4GB or 8GB
Minimum Configuation: 8GB (4 × 2GB)
Maximum capacity: 128GB (16 × 8GB)

Standard Integrated Interfaces Oracle Sun T3-1

Network

4 × 10/100/1000 Mbps autonegotiating ports
Up to 2 .× optional 10 GbE XAUI connections

Network Management

One dedicated 10/100Base-T RJ-45 port Ethernet port

Serial Management

One dedicated RJ-45 port

Remote Management

Onboard system processor, running Integrated Lights Out Manager (ILOM) 3.0

Graphics

One DB-15 VGA connector

USB

Front: 2 USB 2.0 Ports
Rear: 2 USB 2.0 Ports
(also 1 internal USB port)

PCI Expansion Slots

6 low-profile PCI-Express 2.0 slots.
Slots 0 and 3 support PCI-Express or 10Gbit Ethernet (XAUI) cards.

Slot #	Physical	Electrical
0	x16	x8
1	x16	x8
2	x16	x8
3	x8	x8
4	x8	x8
5	x8	x8

Internal Mass Storage

Disks

Up to eight or sixteen 2.5-inch SAS drives, depending on selected disk backplane
300GB 2.5-inch SAS disk drives
RAID 0 and RAID 1 support

DVD-ROM

1 slimline SATA DVD +/-RW including two USB ports

Power Supplies

2 × 1200 Watt, hot-swappable, N+1 redundant power supply units (PSU)

Environment

Input Voltage

100 – 240 VAC, 50-60Hz
200 – 240 VAC, 50-60Hz

Input Current

8 Disk:
8.4 A @ 100 VAC max
4.2 A @ 200 VAC max16 Disk:
9.4 A @ 100 VAC max
4.7 A @ 200 VAC max

Input Power

8 Disk:
800 W @ 100 VAC max
792 W @ 200 VAC max16 Disk:
896 W @ 100 VAC max
888 W @ 200 VAC max

Heat Output

8 Disk:
2730 BTU/hr @ 100 VAC max
2702 BTU/hr @ 200 VAC max16 Disk:
3057 BTU/hr @ 100 VAC max
3030 BTY/hr @ 200 VAC max

Temperature

Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 65° C (-40° F to 149° F)Note: Above 900m (3000 ft), decrease maximum temperature as altitude increase, 1° C/300m (1.6° F/1000ft)

Humidity

Operating: 10% to 90% relative humidity noncondensing, 27° C (80.6° F) maximum wet bulb
Nonoperating: 93% relative humidity noncondensing, 35° C (95° F) maximum wet bulb

Altitude

Operating: up to 3000m (10000 ft.)
Nonoperating: up to 12000m (40000 ft.)

Vibration

Operating: 0.15G (x-axis), 0.10G (x,y axes) 5-500Hz swept sine
Nonoperating: 0.5G (x-axis), 0.25G (x,y axes) 5-500Hz swept sine

Shock

Operating: 3Gs, 11ms half-sine
Nonoperating: 1-inch roll-off free fall, front-to-back rolling direction, 25mm threshold height at 0.75 m/s impact velocity

Acoustic Noise

Operating/Idling: 7.1 B (LwAd, 1B = 10dB)
Operating/Idling: 63dB (LpAm, bystander positions)

Regulations
Meets or exceeds the following requirements:

Safety

UL/CSA-60950-1, EN60950-1, IEC60950-1 CB Scheme with all country deviations, IEC825-1, 2, CFR21 part 1040, CNS14336, GB4943

RFI/EMI

EN55022 Class A 47 CFR 15B Class A ICES-003 Class A VCCI Class A AS/NZ 3548 Class A CNS 13438 Class A KSC 5858 Class A GB9254 Class A EN61000-3-2 GB17625.1 EN61000-3-3

Immunity

EN55024 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11

Regulatory Markings

CE, FCC, ICES-003, C-tick, VCCI, GOST-R, BSMI, MIC, UL/cUL, UL/DEMKOLVD, UL/S-mark, CCC

European Union Directives

2006/95/EC (73/23/EEC) Low Voltage Directive, 2004/108/EC (89/336/EEC) EMC Directive, 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) Directive, 2002/95/EC Restriction of Hazardous Substances (RoHS) Directive

Dimensions and Weight

Height

88.65 mm (3.49 in.)

Width

447 mm (17.6 in.)

Depth

673.1 mm (26.5 in.)

Weight

Appx 27.2 kg (60 lbs) – with 2 power supplies and 16 disk drives, but without PCI cards and rackmount hardware

Batteries
Option #	Manufacturing Part #	Description
n/a	371-2210 Buy	CR2032 3V Battery, RoHS:Y

Cables
Option #	Manufacturing Part #	Description
n/a	560-2959	Cable Kit, RoHS:Y
	530-4373	34-Pin Connector Board to Fan Board Signal Cable, RoHS:Y
	530-4377	34-Pin System Board to PDB Cable, RoHS:Y
	530-4378	26-Pin System Board to PDB Cable, RoHS:Y
	530-4417	6-Pin Fan Power Cable, RoHS:Y
	530-4418	4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 345mm, RoHS:Y
	530-4419	4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 450mm, RoHS:Y
	530-4466	3-Pin Vertical to Horizontal PDB Power Cable, RoHS:Y
	530-4490	SATA Cable, 90° SATA to 90° SATA, 450mm, RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X6000A Buy	375-3424	PCI Express Sun Crypto Accelerator 6000, RoHS:Y

Disk Backplane
Option #	Manufacturing Part #	Description
SE3Y5BA1Z	511-1435	8-Slot Disk Backplane, RoHS:Y
SE3Y5BB1Z	511-1372	16-Slot Disk Backplane, RoHS:Y
n/a	330-5301	Grey 2U Backplane Retainer Clip

Disks
Option #	Manufacturing Part #	Description
SESX3G11Z Buy	540-7869	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0449	Seagate ST93000SSUNG [ST930003SSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB – 10000 RPM – SAS Disk), RoHS:Y
	541-2123	Marlin Bracket 2.5″, RoHS:Y

Ethernet
Option #	Manufacturing Part #	Description
SG-XEMFCOE2-Q-SR	375-3684	Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA – SR, RoHS:Y
SG-XEMFCOE2-Q-TA	375-3685	Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA – TA, RoHS:Y
SG-XPCIEFCOE2-Q-SR Buy	375-3681	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR, RoHS:Y
SG-XPCIEFCOE2-Q-TA Buy	375-3682	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach, RoHS:Y
X1109A-Z Buy	375-3617	Dual 10-Gigabit Ethernet SFP+ LP, RoHS:Y
X2129A-N Buy	530-4449	10Gbps Short Wave Pluggable (SFP+) Transceiver, RoHS:Y
X2130A-10M-N Buy	530-4454	Sun 10Gbps SFP+ TwinX Cable, 10m, RoHS:Y
X2130A-1M-N Buy	530-4441	Sun 10Gbps SFP+ TwinX Cable, 1m, RoHS:Y
X2130A-3M-N Buy	530-4442	Sun 10Gbps SFP+ TwinX Cable, 3m, RoHS:Y
X4447A-Z-N Buy	511-1422	PCI Express Quad Gigabit Ethernet UTP, RoHS:Y
X4447A-Z-N Buy	371-2207	Bracket Low-Profile, RoHS:Y
X7280A-2-N Buy	371-0905	PCI Express Dual Gigabit Ethernet UTP, RoHS:Y
X7281A-2-N Buy	371-0904	PCI Express Dual Gigabit Ethernet MMF, RoHS:Y

Fan
Option #	Manufacturing Part #	Description
n/a	541-4124	Fan Board Assembly, RoHS:Y
	330-5243	Fan Board Cover, RoHS:Y
	511-1434	Fan Board, RoHS:Y
n/a	541-4222	Fan Assembly, RoHS:Y
n/a	371-4613	60×28mm 10400/9500 RPM Dual Fan, RoHS:Y

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCIE1FC-QF8-N Buy	371-4324	8Gigabit/Sec PCI Express Single FC Host Adapter, RoHS:Y
SG-XPCIE2FC-QF8-N Buy	371-4325	8Gigabit/Sec PCI Express Dual FC Host Adapter, RoHS:Y

I/O
Option #	Manufacturing Part #	Description
n/a	541-4084	2-Slot X8/XAUI Riser Assembly,RoHS:Y
	341-4139	PCI Filler Panel, RoHS:Y
	350-1413	PCI Express Riser, RoHS:Y
	511-1613	XAUI Riser, RoHS:Y
n/a	541-4085	2-Slot X8/X16 PCI Express Riser Assembly, RoHS:Y
	341-4139	PCI Filler Panel, RoHS:Y
	511-1614	PCI Express Riser, RoHS:Y
	541-2531	Bracket, RoHS:Y

Memory
Option #	Manufacturing Part #	Description
SE6X2A11Z Buy	4GB Memory Expansion (2 × 2GB) X-Option, RoHS:Y
SE6X2A11Z Buy	371-4656	2GB DDR3-1333/PC3-10600 1.5V DIMM, RoHS:Y
SE6X2B11Z Buy	8GB Memory Expansion (2 × 4GB) X-Option, RoHS:Y
SE6X2B11Z Buy	371-4872	4GB DDR3-1333/PC3-10600 1.5V DIMM, RoHS:Y
SE6X2C11Z Buy	16GB Memory Expansion (2 × 8GB) X-Option, RoHS:Y
SE6X2C11Z Buy	371-4658	8GB DDR3-1333/PC3-10600 1.35V DIMM, RoHS:Y

Miscellaneous
Option #	Manufacturing Part #	Description
n/a	350-1562	Clear Plastic Air Duct, RoHS:Y

Power
Option #	Manufacturing Part #	Description
SE3X5PS1Z Buy	300-2235	1200W Power Supply, Type A249, RoHS:Y
n/a	371-4650 Buy	Energy Storage Module (ESM), RoHS:Y
n/a	541-4223	Power Distribution Assembly, RoHS:Y
	341-3166	Bus Bar Left, RoHS:Y
	341-3167	Bus Bar Right, RoHS:Y
	371-2484	PDB Signal Cable, RoHS:Y
	511-1437	Horizontal Power Distribution Board, RoHS:Y
	511-1513	Vertical Power Distribution Board, RoHS:Y

Rack
Option #	Manufacturing Part #	Description
SESX9CA1Z Buy	371-2742	Cable Management Arm, RoHS:Y
SESX9RK1Z Buy	371-2741	Screw-Mount Slide Rail Rackmount Kit, 730mm, RoHS:Y
SESX9RK2Z Buy	371-2740	Snap-In Slide Rail Rackmount Kit, 730mm, RoHS:Y

Removable Media
Option #	Manufacturing Part #	Description
SESX9DV2Z	541-3493 Buy	SATA DVD-Writer/CD-Writer – USB Board Assembly, RoHS:Y
	330-5056	DVD Interconnect Holder, RoHS:Y
	390-0442	8x SATA DVD-Writer/24x CD-Writer, RoHS:Y
	390-0443 Buy	8x SATA DVD-Writer/24x CD-Writer, RoHS:Y
	501-7698	USB Board, RoHS:Y
	541-3686	DVD Bezel, RoHS:Y
n/a	541-2732 Buy	USB Assembly, RoHS:Y
	330-4418	DVD Interconnect Holder, RoHS:Y
	341-4072	DVD Filler Panel, RoHS:Y
	501-7698	USB Board, RoHS:Y

SCSI
Option #	Manufacturing Part #	Description
SG-XPCIE8SAS-E-Z Buy	375-3487	PCI Express 8-Port Host Adapter, RoHS:Y
SGX-SAS6-EXT-Z Buy	375-3641	PCI Express 8-Port 6Gbps SAS HBA, RoHS:Y
SGXPCIE2SCSIU320-N Buy	375-3357	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, RoHS:Y
XTA-FAS-S3IE96GB-N	541-3731	96GB PCI Express Flash Accelerator F20 SAS HBA, RoHS:Y
	371-4415	24GB Solid State Flash Memory Module, RoHS:Y
	371-4650 Buy	Energy Storage Module (ESM), RoHS:Y
	511-1500 Buy	PCI Express Flash Board, RoHS:Y

System Board
Option #	Manufacturing Part #	Description
n/a	341-4139	PCI Filler Panel, RoHS:Y
n/a	541-3857	16-Core 1.65GHz System Board Assembly, RoHS:Y
	350-1440	Mounting Tray, RoHS:Y
	371-2210 Buy	CR2032 3V Battery, RoHS:Y
	511-1278	System Board, RoHS:Y
	525-2146	SSCC NVRAM, RoHS:Y

System Service Processor
Option #	Manufacturing Part #	Description
n/a	541-4072	Service Processor Assembly, RoHS:Y
	350-1614	Service Processor Cover, RoHS:Y
	511-1336	AST2200 Service Processor, RoHS:Y
