Oracle Sun Netra T6340 SERVER

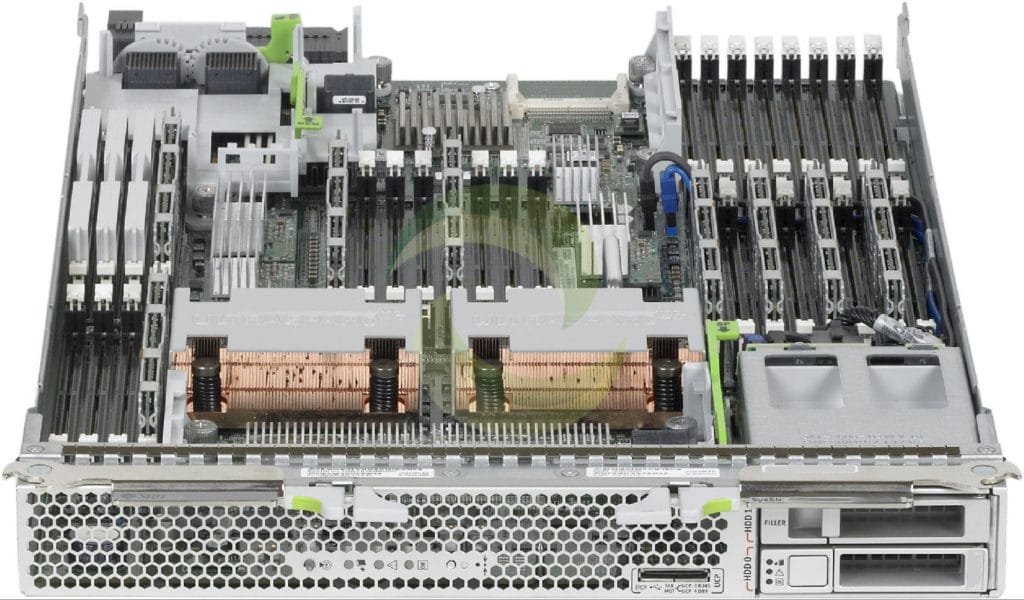

Oracle Sun Netra T6340 SERVER Oracle Sun Netra T6340 SERVER SUN NETRA T6340 SERVER1 1024x600

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Processor
    Number Two.
    Architecture Type:UltraSPARC T2 Plus processor.
    • Model/Speed:8-Core, 1.4 GHz
    Cache Memory 4 MB L2 Cache.
    Main Memory
    Memory Type 1.5V fully buffered ECC Registered DIMMs.
    Capacities
    • Maximum memory: 256GB.
    • Total DIMM slots:32.
    • DIMM sizes: 4GB and 8GB.
    Optional Storage
    Internal Disk
    • Up to two optional, hot swappable, hot pluggable, small form factor (SFF) drive bays per blade.
    Drive Type Density Speed Form Factor
    SAS 300 GB 10,000 RPM SFF 2.5″
    Management Environment
    Service Processor (SP)
    • The SP card is installed with Integrated Lights-Out Manager (ILOM) software.
    • ILOM can be accessed via a Dongle cable assembly connection to the Universal Connector Port (UCP) on the front of the Sun Netra T6340.
    • To connect to ILOM using the three connector dongle cable, use the RJ-45 serial connector.
    • The Dongle cable assembly is provided with the Sun Netra 6000.
    • The SP delivers:
        • Direct manageability – same as Oracle rack-mounted servers.
        • Full monitoring of blade by SNMP.
        • Graphical user interface (GUI) and comprehensive command-line interface (CLI) emulating Advanced Lights Out Manager (ALOM)

      Secure access and control.

        • Full-featured virtual console through remote KVMS feature.

      (Optional Oracle Enterprise Manager, an advanced hardware management enabling discovery, grouping, bare metal provisioning, hardware and OS monitoring, and integrated Oracle VM Server for SPARC management.
    Standard Integrated Interfaces
    Universal Connector Port (UCP)
    • Front accessible UCP provides Serial Management connection to ILOM via Dongle cable.
      • Three-Connector Cable Dongle (UCP-3)
      • Dual USB 2.0 ports for keyboard, mouse or storage.
      • 15-pin VGA Female connector
      • RJ-45 serial connector used to connect to ILOM
    Network management Two 10/100Base-T Ethernet port connections via midplane to the Chassis Monitoring Module (CMM). Only one connection (NET 0) is used.
    Ethernet Two 10/100/1000Base-T Ethernet ports routed through midplane to 2 NEM slots.
    PCI Interfaces with the Sun Netra Modular System (chassis)
    • I/O is offered in two form factors:
      • PCI Express ExpressModules (EM)
        and
      • PCI Express Network Express Modules (NEM).
    • Each Sun Netra T6340 has four, x8 lane PCI Express links allocated to:
      • Two EMs
        and
      • Two NEMs.
    • Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
    • EM slots are not shared between server modules. Each EM slot is specific to one server module.
    Regulations
    RoHS Compliance Level RoHS:YL
    NEBS Compliance Level NEBS Level 3 Certification
    Dimensions and Weights
    Height 44.5mm (1.75 in).
    Width 327.15mm (12.88 in).
    Depth 496.82 (19.56 in).
    Weight (fully configured) 9.1 kg (20.0 lbs).
    Blade
    Option # Manufacturing
    Part #    		 Description
    n/a 594-6439 Sun Netra T6340 Server Module with 2 CPUs (1.4GHz, 8-core UltraSPARC T2+)
    • 511-1519
    • Service Processor Assembly, RoHS:Y
    • 150-1204
    • 3V Lithium battery, RoHS:Y
    • 525-2588
    • IDPROM, RoHS:Y
    • 541-4290
    • Sun Netra T6340 Motherboard/CPU (1.4GHz, 8-core, UltraSPARC T2+) Assembly



    Cables
    Option # Manufacturing
    Part #    		 Description
    X4622A Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, RoHS:YL
    530-3100 RJ45F to DB9F Adapter, RoHS:Y
    530-3936 USB/VGA/RJ45 Dongle Cable Adapter, RoHS:Y
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRA-SS2CF-300G10K 540-7869 300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0449
    • Seagate ST93000SSUNG [ST930003SSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0451
    • Hitachi HUC103030CSS600 [H103030SCSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-2123
    • Marlin Bracket 2.5″, RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    T6340-X-24 8 GB (2 × 4GB 1.55V FBDIMM) Memory Kit, RoHS:YL
    511-1152 4GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
    T6340-X-28 16GB (2 × 8GB 1.55V FBDIMM) Memory Kit, RoHS:YL
    511-1228 8GB DDR2-667/PC2-5300 1.5V DIMM, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    X4607A 511-1098 RAID 0/1 Expansion Module, RoHS:Y
    System Service Processor
    Option # Manufacturing
    Part #    		 Description
    n/a 511-1519 Service Processor Assembly, RoHS:Y
    • 150-1204
    • 3V Lithium battery, RoHS:Y
    • 525-2588
    • IDPROM, RoHS:Y
