Oracle Sun Netra T5-1B Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Processor

Number

Single Socket.

Architecture

Type:SPARC V9, ECC protected

Core/Speed/Thread: 16-Core, 3.6GHz, 128 Threads.

Main Memory

Capacities

Total DIMM slots: 16 on system board
DIMM type: DDR3L
DIMM size: 8GB or 16GB
Minimum Configuation: 128GB (16 × 8GB)
Maximum capacity: 256GB (16 × 16GB)

Optional Storage

Disk

Up to two, internal SAS drives per blade. RAID Expansion Module (REM) board is not required, REM is built in.

Drive Type Density Speed Form Factor RAID

SAS 300 GB 10,000 RPM 2.5″ 0, 1

SAS 600 GB 10,000 RPM 2.5″ 0, 1

Management Environment

Service Processor (SP)

The SP card is installed with Integrated Lights-Out Manager (ILOM) software.

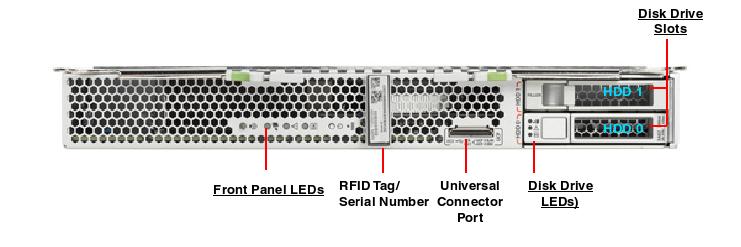

ILOM can be accessed via the RJ45 serial port provided by the Dongle cable assembly connected to the Universal Connector Port (UCP) on the front of the Netra SPARC T5-1B Server. ILOM can also be accessed through the Chassis Monitoring Module (CMM) of the Netra 6000.
The Dongle cable assembly is provided with the Sun Netra 6000 chassis and also orderable.
Built-in Integrated Lights Out Manager (ILOM) service processor delivers:
- Full monitoring of blade by SNMP.
- Graphical user interface (GUI) and comprehensive command-line interface (CLI).
- Full-featured virtual console through remote Keyboard, Video, Mouse and Storage (RKVMS) feature.

Standard Integrated Interfaces

Network

Two 10/100/1000 Base-T Ethernet ports.
One dedicated 10/100 Base-T Ethernet port for the management network which can be optionally shared with the main network ports if desired.

Front Panel I/O

Exposed via dongle cable:

One RJ-45 serial console to server module ILOM.
Three USB 2.0 ports (2 external via dongle and 1 internal accepting USB drive).
One HD-15 VGA port.

Midplane I/O

Four x8 PCIe busses: Two dedicated to NEMs, two dedicated to EMs.
Four SAS-2 interfaces, two per NEM.
Two 10/100/1000 GbE interfaces, one per NEM.
10/100 Ethernet management port to CMM.
Cards that are categorized as PCIe 3.0 are qualified to run with the T5-1B, however due to midplane restriction, will only run at 2.0 speeds. Between switch and CPU, the Blade runs at PCIe 3.0. However due to the midplane connector capabilities, from switch to the EM/NEM the speed is limited to PCIe 2.0.

Dimensions and Weights

Height

327.2 mm (12.9 in).

Width

44.5mm (1.8 in).

Depth

511.7 (20.1 in).

Weight

7.7 kg (17.0 lbs). (fully configured)

Regulations

NEBs

NEBS Level 3 certification

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C]	3V Lithium Coin Cell Battery	n/a

Blade
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7060520 [F]	Netra SPARC T5-1B 16-Core 3.6GHz System Board Assembly	n/a
	7027320	2-Slot Disk Backplane	n/a
	7064450	System Board Sub Assembly	n/a
	525-2146	SSCC NVRAM	n/a
	7064803	System Board Assembly without enclosure	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
n/a	7080300 [F]	Netra SPARC T5-1B 16-Core 3.6GHz System Board Assembly	7060520 [F]
	7027320	2-Slot Disk Backplane	n/a
	7078259	System Board Sub Assembly	n/a
	525-2146	SSCC NVRAM	n/a
	7078261	System Board Assembly without enclosure	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a
n/a	7313149 [F]	Netra SPARC T5-1B 16-Core 3.6GHz System Board Assembly	n/a
	7027320	2-Slot Disk Backplane	n/a
	7078259	System Board Sub Assembly	n/a
	525-2146	SSCC NVRAM	n/a
	7309324	System Board Assembly without enclosure	n/a
	371-2210 [C]	3V Lithium Coin Cell Battery	n/a

NOTE: The NEBS certified Netra SPARC T5-1B is a modified SPARC T5-1B with unique FRUID and ILOM. Do NOT use the SPARC T5-1B to replace Netra SPARC T5-1B.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X4622A-N [S]	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
	530-3100	RJ45F to DB9F Adapter	n/a
	7046680 [C]	USB/VGA/RJ45 Dongle Cable Adapter	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7105212	7064133 [C]	300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7066794	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a
7105214	7064135 [C]	600GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	541-2123	Marlin 2.5″ Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X4871A-Z-N	7051229 [C]	Dual 10Gbps Ethernet Fabric Expansion Module (FEM)	n/a
7100633 [S]	7041170 [C]	PCI Express Pass Through Fabric Expansion Module (FEM)	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7104931	16GB Memory Expansion (1 × 16GB) Option
7104931	7051724 [C]	16GB DDR3L-1600/PC3L-12800 DIMM	n/a
7105237 [S]	8GB Memory Expansion (1 × 8GB) Option
7105237 [S]	7041271 [C]	8GB DDR3L-1333/PC3L-10600 DIMM	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	525-2146	SSCC NVRAM	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066335 [C]	Service Processor Assembly	n/a
	350-1614	Service Processor Cover	n/a
	7066333	Service Processor	n/a
