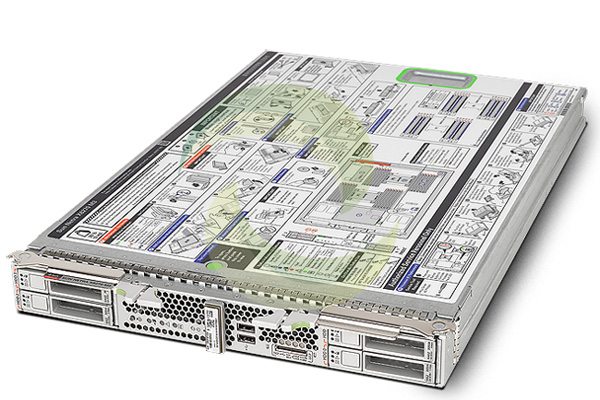

Oracle Sun Netra Blade X3-2B Server Module
REQUEST A PRICE QUOTE:
Oracle’s new carrier grade Netra Blade X3-2B server module (formerly the Sun Netra X6270 M3 server module) is designed for building out 4G networks and cloud-based infrastructures in x86 environments. Combined with the unique I/O architecture of the Sun Netra 6000 chassis, it is the safe choice for providing continuous long-term service with everything required for successful, simple to manage communications deployments.
- No limit virtualization, choice of Oracle operating systems, and a complete cloud infrastructure built-in, at no additional cost
- NEBS certified to support extended deployments and deliver continuous service with proven, long-system lifecycles
- Simple to manage using a single integrated management tool across the entire hardware and software stack
- Large memory capacity and high memory bandwidth deliver high performance for communication workloads
- Sun Netra 6000 chassis I/O architecture makes this blade easy to deploy and upgrade
Key Applications
- Cloud deployments
- Services over IP (SoIP)
- Call control
- Media and signaling gateways
- Operational system support
- Defense, military, and intelligence applications
| Feature | Benefit |
|---|---|
| Two Intel Xeon E5-2600 processors | Faster performance and significant increase in number of cores compared with previous generation |
| Extreme performance and availability with up to 10 dual-socket Netra Blade X3-2B blades in a Sun Netra 6000 AC or DC Chassis | Provides a high performance, scalable, and efficient network infrastructure solution with carrier-grade reliability |
| Capacity for 24 memory DIMM slots | With support for 2 low voltage DDR3-1600 MHz DIMMs per channel, Oracle delivers both application performance acceleration and power savings. This low voltage DIMM support can translate to a power and cooling saving of up to 1,000 watts for four, fully loaded Sun Netra 6000 AC chassis in a 42U rack. |
| Single integrated management tool across the entire hardware and software stack | Simplified management with monitoring and management from anywhere on the network |
| NEBS™ Level 3 certification and ETSI compliance | Assures reliable performance in adverse environmental conditions |
| PCIe Express Modules | Enables each blade to have its own unique I/O configuration. Enables fast deployment and no-downtime I/O upgrade. |
| Processor | Intel Xeon E5-2658 | Intel Xeon E5-2658 | Intel Xeon E5-2658 |
|---|---|---|---|
| Processor Core | Eight-Core | Eight-Core | Eight-Core |
| Clock Speed | 2.1 GHz | 2.1 GHz | 2.1 GHz |
| Max # of Processors | Two | Two | Two |
| Installed Processors | Two | Two | Two |
| Cache | 20 MB L3 cache per processor | 20 MB L3 cache per processor | 20 MB L3 cache per processor |
| Memory | 16 GB (2 x 8 GB DIMMs) DDR3-1600 | 64 GB (8 x 8 GB DIMMs) DDR3-1600 | 384 GB (24 x 16 GB DIMMs) DDR3-1600 |
| Max Memory | 384 GB | 384 GB | 384 GB |
| # Installed Memory Slots | Two | Eight | 24 |
| Max # of Memory Slots | 24 | 24 | 24 |
| Mass Storage | Two 300 GB 10,000 RPM 2.5-inch SAS disks | Two 300 GB 10,000 RPM 2.5-inch SAS disks | Four 300 GB 10,000 RPM 2.5-inch SAS disks |
| Network & I/O Options | Two 10/100/1000 Base-T Ethernet, one (Management Network) 10/100 Base-T Ethernet, two links to PCIe ExpressModule slots, two links to Network Express Module slots | Two 10/100/1000 Base-T Ethernet, one (Management Network) 10/100 Base-T Ethernet, two links to PCIe ExpressModule slots, two links to Network Express Module slots | Two 10/100/1000 Base-T Ethernet, one (Management Network) 10/100 Base-T Ethernet, two links to PCIe ExpressModule slots, two links to Network Express Module slots |
| Service Processor | One | One | One |
| Virtualization | Oracle VM, Oracle Solaris Zones, VMware | Oracle VM, Oracle Solaris Zones, VMware | Oracle VM, Oracle Solaris Zones, VMware |
| Physical Specifications | Blade form factor | Blade form factor | Blade form factor |
| Regulations | NEBS Level 3 Certified | NEBS Level 3 Certified | NEBS Level 3 Certified |
| Operating System/Software | Supports Oracle Solaris, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows Server 2008 | Supports Oracle Solaris, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows Server 2008 | Supports Oracle Solaris, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows Server 2008 |
