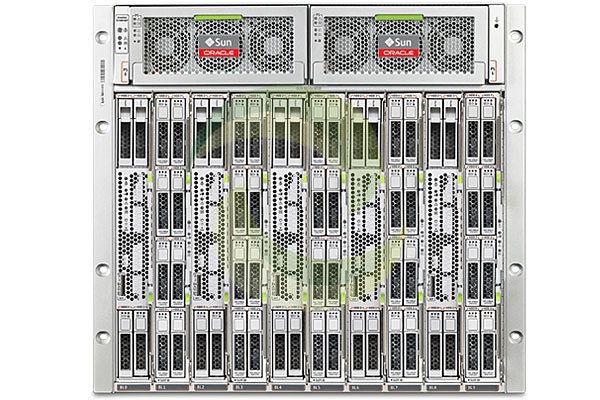

Oracle Sun Netra 6000 SERVER

Oracle Sun Netra 6000 SERVER Oracle Sun Netra 6000 SERVER 60001

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Capacity
    Number
    • Up to 20 optional, hot-pluggable PCI ExpressModules (EM).
    • Up to 2 optional, hot-pluggable PCI Express Network Express Modules (NEM).
    • Up to 10 hot-pluggable Sun Netra Server Modules.
    • 2 (N+1), hot-plug / hot-swap 5600-Watt power supplies with independently wired fans.
    • 2 Front Fan Modules (6 fans total).
    • 6 Rear Fan Modules (12 fans total, N + 1 redundancy)
    • One Chassis Monitoring Module (CMM).
    Management Environment
    Sun Netra 6000 Chassis Monitoring Module (CMM)
    • Sun Netra 6000 chassis-level management is provided by the CMM’s Integrated Lights-Out Management (ILOM) software. ILOM 3.0.6.11 is the minimum supported firmware version.
    • Management can be integrated into Sun and/or third-party management tools.
    • Two ways to connect to CMM ILOM:
      • Connect a terminal or terminal emulation software to the SER MGT (RJ-45) port of the CMM to telnet into CMM ILOM.
      • Connect to the NET MGT 0 (10/100Base T ethernet) port of the CMM for Secure Shell (SSH) client access to CMM ILOM.
    Power Supplies
    Number Two, hot-plug / hot-swap, high-efficiency(~90%) power supplies are provided in a N+1 redundant configuration.
    Output 5600-Watt per power supply.
    Standard Integrated Interfaces
    Network The Sun Netra 6000, without an optional EM or NEM, does not offer production network or I/O connectivity.
    I/O Interfaces The Sun Netra 6000 Modular System I/O is architected using PCI Express technology. I/O is offered in two form factors: PCI Express ExpressModules (EM) and PCI Express Network Express Modules (NEM).
    Environment
    AC input
    • Voltage: 200-240 VAC.
    • Frequency: 50-60 Hz.
    • Current: 16A per power supply input, total four AC inputs (two per power supply).
    • AC input power: 1+1 PSU rating, 6,272 W, or 6,400 VA each power supply module
    • Number of AC Inputs: 4.
    • AC Input Connection: Americas/domestic: NEMA L6-20P to IEC 320-C19
    • AC Input Connection: International: IEC 309, 250 V, 3 A, 3Pin to IEC 320-C19
    Airflow Requirements
    • Airflow (maximum) airflow inlet/outlet rate):1012 CFM (Cubic Feet per Minute).
    • Airflow (typical): 600 CFM (Cubic Feet per Minute).
    • Airflow direction: Front to rear.
    Temperature Operating: 5°C to 45°C (41° F to 113° F).
    Nonoperating: -40°C to 70°C (-40° F to 158° F).
    Optimum ambient temperature: <22° C (71.60° F).
    Relative Humidity Operating: 5% to 85% RH, non-condensing not to exceed 0.024kg Short Term.
    Nonoperating: 93%, non-condensing, 38° C max wet bulb.
    Altitude Operating:0 to 6,000 feet (1,800m), max. at aisle ambient temperatures of 45°C.
    Nonoperating: Up to 39,370 feet (12,000m).
    Acoustic Noise LwAd (1 B = 10 dB) 7.5 B at or below 25°C, 9.2 B at max. ambient.
    Sine Vibration Operating: Z (vertical)-axis: 0.15G X/Y axis: 0.10G 5 to 500 Hz sine.
    Nonoperating: Z (vertical)-axis: 0.50G X/Y axis: 0.25G 5 to 500 Hz sine.
    Shock 3Gs, 11msec, half sine (applied to rackmounted enclosure).
    Regulations
    NEBS Compliance Level NEBS Level 3 Certification
    RoHS Compliance Level RoHS:YL
    Product Safety
    • Product safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences, IEC 825-1, 2, CFR 21 Part 1040, CNS 14336, GB 4943.
    • Other: Labeled per WEEE (Waste Electrical and Electronic Equipment) Directive, China RoHS Mark.
    Dimensions and Weights
    Chassis Height 438.15mm (17.25 in) – 10 RU minus clearance.
    Chassis Width 444.5mm (17.50 in).
    Chassis Depth 692.15mm (27.25 in).
    Chassis Depth (in rack) 27.25 inches (692 mm) (distance from front vertical mounting rail to rear of the chassis).
    Weight Fully configured system 160kg (350 lbs).
    Empty Chassis:    35.7kg (78.7lbs).
    Backplane/Centerplane
    Option # Manufacturing
    Part #    		 Description
    n/a 541-4289 PCI Express 2.0 Midplane Assembly, RoHS:YL
    • 541-3789
    • PCI Express 2.0 Midplane Assembly, RoHS:YL
    • 330-4398
    • Busbar Bolt Cover, RoHS:Y
    • 330-4399
    • Busbar Cover, RoHS:Y
    • 341-2337
    • Busbar, RoHS:Y
    • 341-3592
    • Busbar Spacer, RoHS:Y
    • 511-1298
    • PCI Express 2.0 Midplane, RoHS:YL
    Cables
    Option # Manufacturing
    Part #    		 Description
    X4622A Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, RoHS:YL
    530-3100 RJ45F to DB9F Adapter, RoHS:Y
    530-3936 USB/VGA/RJ45 Dongle Cable Adapter, RoHS:Y
    X5044A-Z 6 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m, RoHS:Y
    180-2005 AC Input Power Cord, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m, RoHS:Y
    X5074A-Z 4 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320, RoHS:Y
    180-2005 AC Input Power Cord, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m, RoHS:Y
    X5075A-Z 4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m, RoHS:Y
    180-2004 AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m, RoHS:Y
    X5076A-Z 4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 1.5 M), RoHS:Y
    180-2095 Power Cord, 20A, (IEC 320-C19 to IEC 320, 1.5 M), RoHS:Y
    X5077A-Z 4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M), RoHS:Y
    180-2096 Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M), RoHS:Y
    X5915A 2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M, RoHS:Y
    375-3493 Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X4250A 371-1451 10-port, GbE, Pass-Thru Network Express (NEM) Module, RoHS:YL
    Fan
    Option # Manufacturing
    Part #    		 Description
    n/a 371-1446 Rear Fan Controller Assembly, RoHS:Y
    • 501-7377
    • Rear Fan Controller Board,RoHS:YL
    n/a 371-1450 Rear Fan Module (RFM), RoHS:Y
    Power
    Option # Manufacturing
    Part #    		 Description
    n/a 300-2190 5600 Watt, Type A206 Power Supply, RoHS:Y
    • 371-4208
    • Power Supply Fan Tray, RoHS:YL
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SG-XPCIE8SAS-EB-Z 375-3486 Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule, RoHS:Y
    System Service Processor
    Option # Manufacturing
    Part #    		 Description
    X4626A 371-1447 Chassis Management Module (CMM) Assembly, RoHS:YL
    • 501-7379
    • Chassis Management Module (CMM) Board, RoHS:YL
    • 501-7985
    • Service Processor, RoHS:YL
