Oracle Sun Fujitsu M10 PCI Expansion Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Standard Integrated Interfaces
Connection Method	Link Board (PCILINKBD_B) connects to Link Card (PCILINK_B) on the server side.
PCI Expansion Slots	Eleven PCI Express 3.0 slots One PCI slot dedicated to the Link Board (PCILINKBD_B)
Power Supplies
Dual redundant, Dual power feed, hot swappable power supplies
Environment
AC power	100-120 / 200-240 VAC (1-phase)
Temperature	Single, non-rack system: Operating: 5° C to 35° C (41° F to 95° F) Nonoperating: -25° C to 60° C (-13° F to 140° F)(unpacked)
Humidity	Single, non-rack system: Operating: 20% to 80% relative humidity noncondensing Nonoperating: 20% to 80% relative humidity noncondensing (unpacked)
Altitude	Single, non-rack system: Operating: up to 3000 m (9,843 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m Nonoperating: up to 12,000 m (40,000 ft.)
Dimensions and Weight
Height	86 mm (3.39 in.)
Width	440 mm (17.32 in.)
Depth	740 mm (29.13 in.)
Weight	22 kg (48.5 lb.) minimum (no PCI-Express cards installed), 23.44 kg (51.67 lb.) maximum assuming PCI-Express card weighs 0.12 kg (0.25 lb.) each, and without the rack mounting slide rail kit installed.
Rack Mounting
Fujitsu M10 PCI Expansion Unit Racks	Racks are as follows: Fujitsu Expansion Rack Sun Rack II 1242 Sun Rack II 1042 Sun Rack 900-38 Sun Rack1000-38 Sun Rack1000-42 Sun Rack 900-36N

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7061025 [F]	Fan Backplane (PCIFANBP_A)	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7105577	7061048 [F]	Two Copper Link Cables, 3M (CBL-COP3)	n/a
7105578	7061047 [F]	Two Fibre Optical Link Cables, 10M (CBL-OPT10)	n/a
n/a	7061044 [F]	3M Management Cable (CBL-MGMT(3m))	n/a
n/a	7061045 [F]	10M Management Cable (CBL-MGMT(10m))	n/a
n/a	7068961 [C]	AC Power Cord, IEC320-C13 to 5-15P, 1M	n/a
n/a	7068962 [C]	AC Power Cord, IEC320-C13 to 5-15P, 2M	n/a
n/a	7068963 [C]	AC Power Cord, IEC320-C13 to 5-15P, 3M	n/a
n/a	7068964 [C]	AC Power Cord, IEC320-C13 to 5-15P, 1M	n/a
n/a	7068965 [C]	AC Power Cord, IEC320-C13 to 5-15P, 2M	n/a
n/a	7068966 [C]	AC Power Cord, IEC320-C13 to 5-15P, 3M	n/a
n/a	7068967 [C]	AC Power Cord, IEC320-C13 to IEC320-Sheet E, 1M	n/a
n/a	7068968 [C]	AC Power Cord, IEC320-C13 to IEC320-Sheet E, 2M	n/a
n/a	7068969 [C]	AC Power Cord, IEC320-C13 to IEC320-Sheet E, 3M	n/a
n/a	7068970 [C]	AC Power Cord, IEC320-C13 to NEMA L6-15P, 3M	n/a
n/a	7068978 [C]	AC Power Cord, IEC320-C13 to IRAM 2073, 3M, Argentina	n/a
n/a	7068979 [C]	AC Power Cord, IEC320-C13 to SA3112, 3M, Australia	n/a
n/a	7068981 [C]	AC Power Cord, IEC320-C13 to NBR14136, for 3M, Brazil	n/a
n/a	7068982 [C]	AC Power Cord, IEC320-C13 to SEV1011, 3M, Switzerland	n/a
n/a	7068983 [C]	AC Power Cord, IEC320-C13 to GB2099, 3M, China	n/a
n/a	7068984 [C]	AC Power Cord, IEC320-C13 to CEE7/VII, 3M, Europe	n/a
n/a	7068985 [C]	AC Power Cord, IEC320-C13 to DEMKO107, 3M, Denmark	n/a
n/a	7068986 [C]	AC Power Cord, IEC320-C13 to SI-32, 3M, Israel	n/a
n/a	7068987 [C]	AC Power Cord, IEC320-C13 to IS1293, 3M, India	n/a
n/a	7068988 [C]	AC Power Cord, IEC320-C13 to CEI23, 3M, Italy	n/a
n/a	7068989 [C]	AC Power Cord, IEC320-C13 to KSC8305, 3M, Korea	n/a
n/a	7068990 [C]	AC Power Cord, IEC320-C13 to CNS10917, 3M, Taiwan	n/a
n/a	7068991 [C]	AC Power Cord, IEC320-C13 to NEMA 6-20, 3M, Taiwan	n/a
n/a	7068992 [C]	AC Power Cord, IEC320-C13 to BS1363A, 3M, U.K.	n/a
n/a	7068993 [C]	AC Power Cord, IEC320-C13 to SANS164, 3M, South Africa	n/a
n/a	7068994 [C]	AC Power Cord, IEC320-C13 to IEC309-IP44, 3M, International	n/a
n/a	7069111 [C]	AC Power Cord, IEC320-C19 to IEC320-C20, 0.5M	n/a
n/a	7069112 [C]	AC Power Cord, IEC320-C19 to IEC320-C20, 1M	n/a
n/a	7069113 [C]	AC Power Cord, IEC320-C19 to IEC320-C20, 1.5M	n/a
n/a	7069117 [C]	AC Power Cord, IEC320-C19 to IEC320-C20, 2M	n/a
n/a	7069118 [C]	AC Power Cord, IEC320-C19 to NEMA L6-20P, 3M, North America	n/a
n/a	7069120 [C]	AC Power Cord, IEC320-C19 to CEE7/VII, Europe	n/a
n/a	7069121 [C]	AC Power Cord, IEC320-C19 to NEMA L6-20P, 3M, North America	n/a
n/a	7069122 [C]	AC Power Cord, IEC320-C19 to IEC309-IP44, 3M, International	n/a
n/a	7069123 [C]	AC Power Cord, IEC320-C19 to IEC309-IP67, 3M, International	n/a
n/a	7069135 [C]	AC Power Cord, IEC320-C19 to 56P320, 3M, Australia	n/a
n/a	7069562 [C]	AC Power Cord, IEC320-C19 to IRAM2073, Argentina	n/a
n/a	7082316 [C]	AC Power Cord, IEC320-C19 to IS1293, 3M, India	n/a
n/a	7082795 [C]	AC Power Cord, IEC320-C13 to NEMA L6-15P, 3M, Japan	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7068353	PCI card filler panel	n/a
n/a	7068354	Rail kits	n/a
n/a	7068355	Cable Support	n/a
n/a	7068366	Front Panel	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7105576	7061040 [C]	Link Card (PCILINK_B)	n/a
X4242A	375-3696 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
X4242A	7092767 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a
n/a	7061035 [F]	Link Board (PCILINKBD_B)	n/a
n/a	7068342 [F]	Link Board PCI Express Cassette (PCIECS)	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	7048474 [C]
7100481	7070202 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	7014747 [C]
X2129A-N	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X4447A-Z-N [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	n/a
	371-2207	Bracket Low-Profile	n/a
X7281A-2-N [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	7014747 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	n/a
n/a	7048474 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #

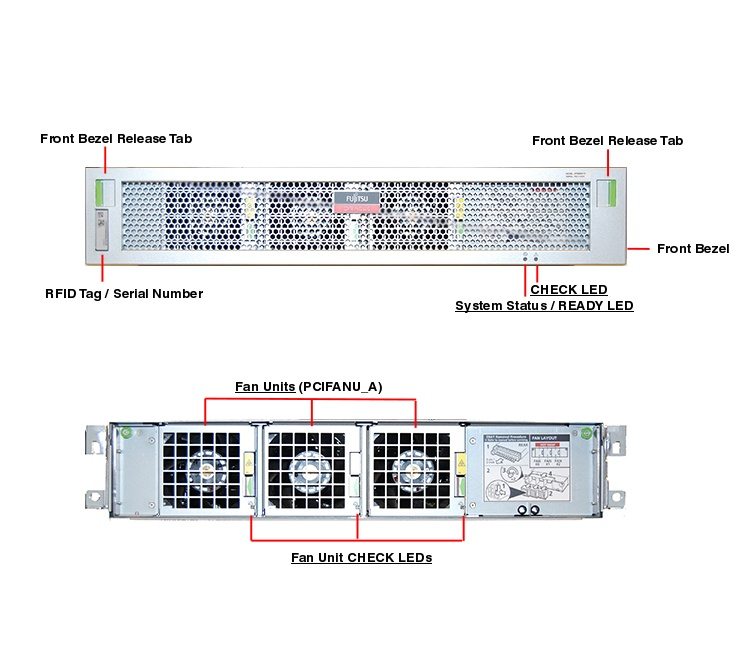

n/a	7061037 [F]	Fan Unit (PCIFANU_A)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101678	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
7101680	7023064	16Gb/Sec Long Wave SFP+ Transceiver, QLogic	n/a
7101684	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101686	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101688	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101688	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
SG-XPCIE2FC-QF8-N	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE1FC-QF8-N [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7060888 [C]	PCI Express Cassette (PCIECS_A)	n/a
n/a	7061024 [F]	PCI Tray (PCITRAY_A)	n/a
n/a	7061033 [F]	I/O Board (PCIIOB_A)	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7060988 [F]	Power Supply (PSUS_A)	n/a
n/a	7082785 [F]	Power Supply (PSUS_A)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7105387	8-Port 6Gbps SAS-2 PCI Express HBA
7105387	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
7104482 [S]	7070787 [C]	Flash Accelerator F40 400GB Solid State Memory	7026993 [C]
SG-XPCIE8SAS-E-Z-N [S]	7050793 [C]	PCI Express 8-Port Host Adapter	n/a
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	7026993 [C]	Flash Accelerator F40 400GB Solid State Memory	n/a
