Oracle Sun Fujitsu M10-4 Server

Oracle Sun Fujitsu M10-4 Server Oracle Sun Fujitsu M10-4 Server SPARC M10 4 front callout 1

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements



    Specs and Information:

    Processor
    Number Two or Four 16-Core (4 socket) or 8-Core (4 socket)
    Architecture Type: SPARC64 16-Core Processor or SPARC64 X+ 8-Core Processor
    CPUs original M10-4 SPARC 2.8GHz 16-Core (24MB L2 – 24way)
    CPUs M10-4+ SPARC 3.4GHz 16-Core (24MB L2 – 24way)
    CPUs M10-4+ SPARC 3.7GHz 8-Core (24MB L2 – 24way)
    Note: There is no upgrade path from the original M10-4 to the M10-4+ or M10-4+ (3.7GHz 8-Core)
    Main Memory
    Capacities Total DIMM slots: 16 per CPU socket (64 total DIMM slots x 4 CPU sockets)
    DIMM type: DDR3 1333MHz or 1600MHz Registered DIMMs
    DIMM size: 32GB 1333MHz or 8GB, 16GB 1600MHz
    Maximum capacity: 2TB (when configured with 32GB DIMMs)
    Standard Integrated Interfaces
    Network Four 1GbE Ethernet Ports
    Service Processor One dedicated TIA/EIA-232-F asynchronous RJ45 port
    One USB Maintenance port
    Two 1GbE Ethernet Ports
    SAS One 6Gbps channel SAS interface (4 wide)
    USB Front: One USB 2.0 port
    Rear: One USB 2.0 port
    PCI Expansion Slots Eleven low profile PCI Express 3.0 slots (11 x8 electrical/mechanical)

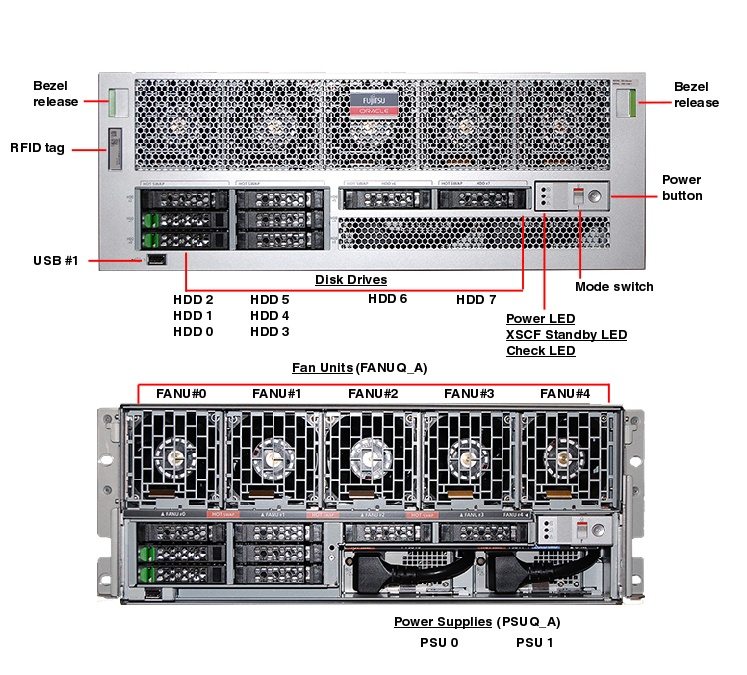

    Internal Mass Storage
    Disks Up to eight front accessible disk bays with 2.5″ SAS disks or eight solid-state drives (SSDs)
    Drive Type Density Speed Form Factor
    SAS 600 GB 10,000 RPM 2.5″
    SAS 900 GB 10,000 RPM 2.5″
    SAS Solid State Drive 100 GB NA 2.5″
    SAS Solid State Drive 200 GB NA 2.5″
    Power Supplies
    Dual redundant, hot swappable power supplies
    50Hz/60Hz in single phase
    Maximum power consumption = 2,765 W
    Heat dissipation = 9,360 kj/hr (8,872 BTU/hr)
    Environment
    AC power 200-240 VAC (1-phase)
    Temperature Single, non-rack system:
    Operating: 5° C to 35° C (41° F to 95° F)
    Nonoperating: -25° C to 60° C (-13° F to 140° F)(unpacked)
    Humidity Single, non-rack system:
    Operating: 20% to 80% relative humidity noncondensing
    Nonoperating: 20% to 80% relative humidity noncondensing (unpacked)
    Altitude Single, non-rack system:
    Operating: up to 3000 m (9,843 ft.), maximum ambient temperature is derated by 1° C per 300 m above 900 m
    Nonoperating: up to 12,000 m (40,000 ft.)
    Dimensions and Weight
    Height 175 mm (6.89 in.)
    Width 440 mm (17.32in.)
    Depth 746 mm (29.37 in.)
    Weight 58 kg (127.87 lb.)
    Rack Mounting
    Fujitsu M10-4 Server Rack Rack is as follows:
    • Fujitsu Expansion Rack
    • Sun Rack II 1042
    • Sun Rack II 1242
    • Sun Rack 900-38
    • Sun Rack 1000-38
    • Sun Rack 1000-42
    • Sun Rack 900-36N
    Backplane/Centerplane
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7065595 [F] PSU/FAN/HDD Backplane (PSUBPUQ_A) n/a
    n/a 7087592 [F] PSU/FAN/HDD Backplane (PSUBPUQ_A) n/a
    n/a 7088788 [F] PSU/FAN/HDD Backplane (PSUBPUQB_A) n/a
    NOTE: PSU/FAN/HDD Backplane (PSUBPUQ_A) PN#7065595 and PN#7087592 are not supported in the M10-4+.
    NOTE: PSU/FAN/HDD Backplane (PSUBPUQB_A) PN#7088788 is used in the M10-4+ and is backward compatible with original M10-4.
    CPU Module
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7060817 [F] Lower 16-Core 2.8GHz CPU/Memory Unit (CMULQN_A) n/a
    n/a 7060823 [F] Upper 16-Core 2.8GHz CPU/Memory Unit (CMUUQN_A) n/a
    n/a 7086555 [F] Lower 16-Core 2.8GHz CPU/Memory Unit (CMULQN_A) n/a
    n/a 7088706 [F] Lower 16-Core 3.4GHz CPU/Memory Unit (CMULQNB_A) n/a
    n/a 7088708 [F] Upper 16-Core 3.4GHz CPU/Memory Unit (CMUUQNB_A) n/a
    n/a 7307802 [F] Upper 8-Core 3.7GHz CPU/Memory Unit (CMUUQNB_B) n/a
    n/a 7307803 [F] Lower 8-Core 3.7GHz CPU/Memory Unit (CMULQNB_B) n/a
    NOTE: The original M10-4 used 2.8GHz CPU/Memory Units, the M10-4+ uses 3.4GHz CPU/Memory Units, the M10-4+ also uses 3.7GHz 8-Core CPU/Memory Units.
    NOTE: Lower 8-Core 3.7GHz CPU/Memory Unit (CMULQNB_B) PN#7307803 is used only in the M10-4+ and is not backward compatible with original M10-4 or the M10-4+ 3.4GHz 16-Core model.
    NOTE: Upper 8-Core 3.7GHz CPU/Memory Unit (CMUUQNB_B) PN#7307802 is used only in the M10-4+ and is not backward compatible with original M10-4 or the M10-4+ 3.4GHz 16-Core model.
    NOTE: Upper 16-Core 3.4GHz CPU/Memory Unit (CMUUQNB_A) PN#7088708 is used only in the M10-4+ and is not backward compatible with original M10-4.
    Cables
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7068961 [C] AC Power Cord, IEC320-C13 to 5-15P, 1M n/a
    n/a 7068962 [C] AC Power Cord, IEC320-C13 to 5-15P, 2M n/a
    n/a 7068963 [C] AC Power Cord, IEC320-C13 to 5-15P, 3M n/a
    n/a 7068964 [C] AC Power Cord, IEC320-C13 to 5-15P, 1M n/a
    n/a 7068965 [C] AC Power Cord, IEC320-C13 to 5-15P, 2M n/a
    n/a 7068966 [C] AC Power Cord, IEC320-C13 to 5-15P, 3M n/a
    n/a 7068967 [C] AC Power Cord, IEC320-C13 to IEC320-Sheet E, 1M n/a
    n/a 7068968 [C] AC Power Cord, IEC320-C13 to IEC320-Sheet E, 2M n/a
    n/a 7068969 [C] AC Power Cord, IEC320-C13 to IEC320-Sheet E, 3M n/a
    n/a 7068970 [C] AC Power Cord, IEC320-C13 to NEMA L6-15P, 3M n/a
    n/a 7068978 [C] AC Power Cord, IEC320-C13 to IRAM 2073, 3M, Argentina n/a
    n/a 7068979 [C] AC Power Cord, IEC320-C13 to SA3112, 3M, Australia n/a
    n/a 7068981 [C] AC Power Cord, IEC320-C13 to NBR14136, for 3M, Brazil n/a
    n/a 7068982 [C] AC Power Cord, IEC320-C13 to SEV1011, 3M, Switzerland n/a
    n/a 7068983 [C] AC Power Cord, IEC320-C13 to GB2099, 3M, China n/a
    n/a 7068984 [C] AC Power Cord, IEC320-C13 to CEE7/VII, 3M, Europe n/a
    n/a 7068985 [C] AC Power Cord, IEC320-C13 to DEMKO107, 3M, Denmark n/a
    n/a 7068986 [C] AC Power Cord, IEC320-C13 to SI-32, 3M, Israel n/a
    n/a 7068987 [C] AC Power Cord, IEC320-C13 to IS1293, 3M, India n/a
    n/a 7068988 [C] AC Power Cord, IEC320-C13 to CEI23, 3M, Italy n/a
    n/a 7068989 [C] AC Power Cord, IEC320-C13 to KSC8305, 3M, Korea n/a
    n/a 7068990 [C] AC Power Cord, IEC320-C13 to CNS10917, 3M, Taiwan n/a
    n/a 7068991 [C] AC Power Cord, IEC320-C13 to NEMA 6-20, 3M, Taiwan n/a
    n/a 7068992 [C] AC Power Cord, IEC320-C13 to BS1363A, 3M, U.K. n/a
    n/a 7068993 [C] AC Power Cord, IEC320-C13 to SANS164, 3M, South Africa n/a
    n/a 7068994 [C] AC Power Cord, IEC320-C13 to IEC309-IP44, 3M, International n/a
    n/a 7069111 [C] AC Power Cord, IEC320-C19 to IEC320-C20, 0.5M n/a
    n/a 7069112 [C] AC Power Cord, IEC320-C19 to IEC320-C20, 1M n/a
    n/a 7069113 [C] AC Power Cord, IEC320-C19 to IEC320-C20, 1.5M n/a
    n/a 7069117 [C] AC Power Cord, IEC320-C19 to IEC320-C20, 2M n/a
    n/a 7069118 [C] AC Power Cord, IEC320-C19 to NEMA L6-20P, 3M, North America n/a
    n/a 7069120 [C] AC Power Cord, IEC320-C19 to CEE7/VII, Europe n/a
    n/a 7069121 [C] AC Power Cord, IEC320-C19 to NEMA L6-20P, 3M, North America n/a
    n/a 7069122 [C] AC Power Cord, IEC320-C19 to IEC309-IP44, 3M, International n/a
    n/a 7069123 [C] AC Power Cord, IEC320-C19 to IEC309-IP67, 3M, International n/a
    n/a 7069135 [C] AC Power Cord, IEC320-C19 to 56P320, 3M, Australia n/a
    n/a 7069562 [C] AC Power Cord, IEC320-C19 to IRAM2073, Argentina n/a
    n/a 7082316 [C] AC Power Cord, IEC320-C19 to IS1293, 3M, India n/a
    n/a 7082795 [C] AC Power Cord, IEC320-C13 to NEMA L6-15P, 3M, Japan n/a
    Chassis
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7068349 HDD/SSD blank filler n/a
    n/a 7068350 Front panel n/a
    n/a 7068351 Dummy CMUU for 2-socket configurations n/a
    n/a 7068353 PCI card filler panel n/a
    n/a 7068354 Rail kits n/a
    n/a 7068355 Cable Support n/a
    Communication
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7104074 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
    X4242A 375-3696 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    7092767 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
    n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
    Disks
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7105571 7060790 [C] 600GB 10,000 RPM 2.5″ SAS Disk Drive Assembly n/a
    7107811 7082308 [C] 200GB 2.5″ SAS-2 eMLC Solid State Drive Assembly n/a
    7107813 7082314 [C] 400GB 2.5″ SAS-2 eMLC Solid State Drive Assembly n/a
    7111261 7098542 [C] 900GB 10,000 RPM 2.5″ SAS Disk Drive Assembly n/a
    7105572 [S] 7060792 [C] 100GB 2.5″ SAS Solid State Drive Assembly n/a
    7105573 [S] 7060812 [C] 200GB 2.5″ SAS Solid State Drive Assembly n/a
    n/a 7086885 [C] 600GB 10,000 RPM 2.5″ SAS Disk Drive Assembly n/a
    Ethernet
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7100477 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP 7048474 [C]
    7100481 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF 7014747 [C]
    7100488 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 7014776 [C]
    7105381 Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR
    7053422 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR 375-3681 [C]
    X1109A-Z 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
    X2124A-N 135-1204 [C] 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver n/a
    X2129A-N 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
    X5562A-Z 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
    7105382 [S] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach
    7053423 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach 375-3682 [C]
    SG-XPCIEFCOE2-Q-SR [S] 7053422 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR 375-3681 [C]
    SG-XPCIEFCOE2-Q-TA [S] 7053423 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach 375-3682 [C]
    X4447A-Z-N [S] 371-2348 Bracket Standard n/a
    7055021 [C] Quad Port GbE PCI Express, UTP n/a
    • 371-2207
    • Bracket Low-Profile
    		 n/a
    X7281A-2-N [S] 7056733 [C] PCI Express Dual Gigabit Ethernet MMF n/a
    n/a 375-3681 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – SR n/a
    n/a 375-3682 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA – Direct Attach n/a
    n/a 7014747 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
    n/a 7014776 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
    n/a 7048474 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
    Fan
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7060886 [F] 80mm Fan Unit (FANUQ_A) n/a
    n/a 7088790 [F] 80mm Fan Unit (FANUQB_A) n/a
    NOTE: 80mm Fan Unit (FANUQ_A) PN#7060886 is used in the M10-4 only.
    NOTE: 80mm Fan Unit (FANUQB_A) PN#7088790 is used only in the M10-4+ and is not backward compatible with original M10-4.
    Fibre Channel
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7101674 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
    7101676 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
    • 7023324
    • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
    		 n/a
    7101678 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
    • 7023316
    • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
    		 n/a
    7101680 7023066 [C] Pair of 16Gbps Long Wave SFP+ n/a
    • 7023064
    • 16Gb/Sec Long Wave SFP+ Transceiver, QLogic
    		 n/a
    7101684 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
    7101686 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
    • 7023053
    • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
    		 n/a
    7101688 7023057 [C] Pair of 10Gbps Short Wave SFP+ n/a
    • 7023046
    • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
    		 n/a
    SG-XPCIE2FC-EM8-N 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    SG-XPCIE2FC-QF8-N 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
    7105391 [S] 8Gigabit/Sec PCI Express Single FC Host Adapter
    7053433 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCIE1FC-EM8-N [S] 7053433 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    SG-XPCIE1FC-QF8-N [S] 371-4324 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
    I/O
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7060888 [C] PCI Express Cassette (PCIECS_A) n/a
    NOTE: Fujitsu M10-1, M10-4, & M10-4S Device Path Information (article 1543194.1)
    Memory
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7105507 128GB Memory Expansion (4 × 32GB) Option
    7060758 [F] DDR3-1333 32GB Memory DIMM n/a
    7105615 32GB Memory Expansion (4 × 8GB) Option
    7060748 [F] DDR3-1600 8GB Memory DIMM n/a
    7105616 64GB Memory Expansion (4 × 16GB) Option
    7060751 [F] DDR3-1600 16GB Memory DIMM n/a
    n/a 7082301 [F] DDR3 64GB DIMM n/a
    Miscellaneous
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7060869 [F] Operation Panel Unit (OPNLUQN_A) n/a
    Power
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 7060882 [F] Power Supply Unit (PSUQ_A) n/a
    n/a 7082787 [F] Power Supply Unit (PSUQ_A) n/a
    n/a 7088114 [F] Power Supply Unit (PSUQB_A) n/a
    n/a 7095845 [F] Power Supply Unit (PSUQ_A) n/a
    NOTE: Power Supply Unit (PSUQB_A) PN#7088114 is used only in the M10-4+ and is not backward compatible with original M10-4.
    NOTE: Power Supply Unit (PSUQ_A) PN#7060882, PN#7082787, and PN#7095845 are used in the M10-4 only.
    Removable Media
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7111911 7093727 External USB DVD Assembly n/a
    • 7093729 [C]
    • USB DVD w/o AC adapter, USB cable, power cable,V2
    		 n/a
    7093728 USB DVD AC Adapter & Cable Kit n/a
    • 7075046
    • USB DVD Cable
    		 n/a
    • 7093730 [C]
    • USB DVD Adapter w/o Power Cable
    		 n/a
    7106761 [S] External USB DVD with adapter & cable
    7075041 USB DVD Assembly n/a
    • 7075038 [C]
    • USB DVD
    		 n/a
    7075044 USB DVD AC Adapter & Cable Kit n/a
    • 7075045 [C]
    • USB DVD AC Adapter
    		 n/a
    • 7075046
    • USB DVD Cable
    		 n/a
    SCSI
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    7105387 8-Port 6Gbps SAS-2 PCI Express HBA
    7047853 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    7107092 7069200 [C] 800GB PCI Express Flash Accelerator F80 SAS HBA n/a
    7110119 7085208 [C] 8-Port 12Gbps SAS PCI Express HBA n/a
    7110865 7307468 [C] 1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon) n/a
    7104482 [S] 7070787 [C] Flash Accelerator F40 400GB Solid State Memory 7026993 [C]
    SG-XPCIE8SAS-E-Z-N [S] 7050793 [C] PCI Express 8-Port Host Adapter n/a
    SGX-SAS6-EXT-Z [S] 7047853 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
    n/a 7026993 [C] Flash Accelerator F40 400GB Solid State Memory n/a

    Industry Leading Quality, Support and Integrity

    Quality Inspection Checklist
    Before it leaves our facility, every used and refurbished item is thoroughly inspected by our certified technicians and undergoes our exclusive Quality Inspection Checklist to ensure 100% satisfaction guarantee.

    Greentec Systems is a leading provider
    For server, networking and storage equipment. We have an extensive array of inventory of IBM Servers & Storage, Sun Servers & Storage, Cisco Networking (Switches, Routers, Security), and NetApp Storage (disk shelves, disk drives, Filers, NearStore, NetCache). If you don’t see the item or product you require please contact us.

    Have this equipment to sell?
    Depending on the age and condition of the equipment, there is a very good likelihood that we will be able to offer you cash or trade-in credit for other IT hardware. If the equipment is very old we can also assist you with properly decommissioning that gear in the most environmentally friendly way possible.

    Questions?
    For more information please contact 888.333.7388, or fill out the quote from above. We’d love to hear from you.

    Request Quote
    Greentec Systems We geek out helping you with your IT infrastructure.
    Request a quote or product information
    Send
