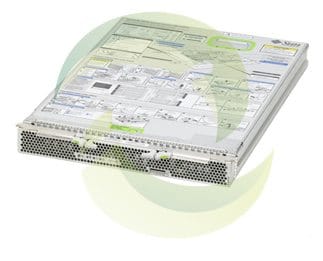

Oracle Sun BLADE X6440 SERVER MODULE

Oracle Sun BLADE X6440 SERVER MODULE Oracle Sun BLADE X6440 SERVER MODULE SUN BLADE X6440 SERVER MODULE X6440 SERVER

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    Processor
    Number Four.
    Architecture Type:Opteron series processors.
    • Model/Speed/Watts/Cache: Opteron 8431, 6-Core, 2.4 GHz, 75W, 6M L3 Cache
    • Model/Speed/Watts/Cache: Opteron 8435, 6-Core, 2.6 GHz, 75W, 6M L3 Cache
    • Model/Speed/Watts/Cache: Opteron 8354, Quad Core, 2.2 GHz, 75W, 6M L3 Cache
    • Model/Speed/Watts/Cache: Opteron 8376HE, Quad Core, 2.3 GHz, 55W, 6M L3 Cache
    • Model/Speed/Watts/Cache: Opteron 8380, Quad Core, 2.5 GHz, 75W, 6M L3 Cache
    • Model/Speed/Watts/Cache: Opteron 8384, Quad Core, 2.7 GHz, 75W, 6M L3 Cache
    • Model/Speed/Watts/Cache: Opteron 8389, Quad Core, 2.9 GHz, 75W, 6M L3 Cache
    Main Memory
    Memory Type DDR2-667MHz / PC2-5300 ECC Registered DIMMs.
    Capacities
    • Maximum memory: 256 GB.
    • Total DIMM slots: 32.
    • DIMM sizes: 2GB, 4GB and 8GB.
    IDE Compact Flash 16GB Compact Flash Type I.
    Management Environment
    Sun Blade Server Module Service Processor (SP)
    • The SP is not a separate card. It is embedded on the motherboard.
    • The SP provides Integrated Lights-Out Manager (ILOM).
    • Connection to ILOM can be made by:
      • Connecting a terminal or terminal emulator to the UCP via the dongle cable’s RJ-45 connector.
      • Connecting to the ethernet port via the dongle cable’s ethernet port or corresponding Network Express Module (NEM) port to provide either CLI or web interface.
      • Connecting a terminal or terminal emulator to the Chassis’ serial port.
    Standard Integrated Interfaces
    Universal Connector Port (UCP) The 3-wire Dongle Cable Assembly connects to the UCP and provides the following:
    • VGA HD15 port to AST2000 video controller.
    • 2 USB 2.0 ports.
    • 1 TIA/EIA-232-F DB-9 serial port.
    PCI Interfaces with the Sun Blade Modular System (chassis)
    • I/O is offered in two form factors:
      • PCI Express ExpressModules (EM)
        and
      • PCI Express Network Express Modules (NEM).
    • Each Sun Blade X6440 has four, PCI Express links allocated to:
      • Two EMs (×2)
        and
      • Two NEMs (×4).
    • Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
    • EM slots are not shared between server modules. Each EM slot is specific to one server module.
    Regulations
    RoHS Compliance Level RoHS:YL
    Dimensions and Weights
    Height 44mm (1.7 in).
    Width 327mm (12.87 in).
    Depth 512mm (20.16 in).
    Weight (Empty) 8 kg (17.00 lbs).
    Batteries
    Option # Manufacturing
    Part #    		 Description
    n/a 371-2210 CR2032 3V Battery, RoHS:Y
    Blade
    Option # Manufacturing
    Part #    		 Description
    X6440-44M2501-82 594-5967 Sun Blade X6440 Server Module with 16GB Memory (8 × 2GB) and 4 CPUs (2.5 GHz, Quad Core, Opteron 8380, 75W)
    • 310-0159
    • Heat Sink, RoHS:Y
    • 371-4436
    • 2.5 GHz CPU, Opteron 8380 Quad Core, C2 Stepping, 75W, RoHS:YL
    • 373-0315
    • Dual 10-Gigabit Pass-Thru Fabric Expansion Module (FEM), RoHS:Y
    • 375-3590
    • 16GB Compact Flash, RoHS:Y
    • 540-7669
    • 4 GB (2 × 2GB PC2-5300 DDR2 DIMMs) Assembly, RoHS:Y
    • 371-4062
    • 2 GB PC2-5300 DDR2 DIMM, RoHS:Y
    • 540-7677
    • Blade Motherboard Assembly
    • 375-3559
    • System Board, RoHS:Y
    X6440-44M2701-B2 594-5968 Sun Blade X6440 Server Module with 32GB Memory (16 × 2GB) and 4 CPUs (2.7 GHz, Quad Core, Opteron 8384, 75W)
    • 310-0159
    • Heat Sink, RoHS:Y
    • 371-4439
    • 2.7 GHz CPU, Opteron 8384 Quad Core, C2 Stepping, 75W, RoHS:YL
    • 373-0315
    • Dual 10-Gigabit Pass-Thru Fabric Expansion Module (FEM), RoHS:Y
    • 375-3590
    • 16GB Compact Flash, RoHS:Y
    • 540-7669
    • 4 GB (2 × 2GB PC2-5300 DDR2 DIMMs) Assembly, RoHS:Y
    • 371-4062
    • 2 GB PC2-5300 DDR2 DIMM, RoHS:Y
    • 540-7677
    • Blade Motherboard Assembly
    • 375-3559
    • System Board, RoHS:Y
    n/a 542-0142 Blade Motherboard Assembly, RoHS:Y
    • 375-3625
    • System Board, RoHS:Y
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X6440-X-24L2301 2 × 2.3 GHz CPU, Opteron 8376HE Quad Core, 55W, RoHS:YL
    310-0159 Heat Sink, RoHS:Y
    371-4503 2.3 GHz CPU, Opteron 8376HE Quad Core, C2 Stepping, 55W, RoHS:YL
    X6440-X-24M2501 2 × 2.5 GHz CPU, Opteron 8380 Quad Core, 75W, RoHS:YL
    310-0159 Heat Sink, RoHS:Y
    371-4436 2.5 GHz CPU, Opteron 8380 Quad Core, C2 Stepping, 75W, RoHS:YL
    X6440-X-24M2701 2 × 2.7 GHz CPU, Opteron 8384 Quad Core, 75W, RoHS:YL
    310-0159 Heat Sink, RoHS:Y
    371-4439 2.7 GHz CPU, Opteron 8384 Quad Core, C2 Stepping, 75W, RoHS:YL
    X6440-X-24M2902 2 × 2.9 GHz CPU, Opteron 8389 Quad Core, 75W, RoHS:YL
    310-0159 Heat Sink, RoHS:Y
    371-4611 2.9 GHz CPU, Opteron 8389 Quad Core, C2 Stepping, 75W, RoHS:Y
    X6440-X-26M2403 2 × 2.4 GHz CPU, Opteron 8431 6-Core, 75W, RoHS:YL
    310-0159 Heat Sink, RoHS:Y
    371-4683 2.4 GHz CPU, Opteron 8431 6-Core, D0 Stepping, 75W, RoHS:Y
    X6440-X-26M2603 2 × 2.6 GHz CPU, Opteron 8435 6-Core, 75W, RoHS:YL
    310-0159 Heat Sink, RoHS:Y
    371-4684 2.6 GHz CPU, Opteron 8435 6-Core, D0 Stepping; 75W, RoHS:Y
    n/a 250-1802 Alcohol Wipe Cleaner
    n/a 310-0065 Thermal Grease, Syringe, RoHS:Y
    n/a 371-4043 2.2 GHz CPU, Opteron 8354 Quad Core, B3 Stepping, 75W, RoHS:Y
    Cables
    Option # Manufacturing
    Part #    		 Description
    X4622A Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, RoHS:YL
    530-3100 RJ45F to DB9F Adapter, RoHS:Y
    530-3936 USB/VGA/RJ45 Dongle Cable Adapter, RoHS:Y
    Communication
    Option # Manufacturing
    Part #    		 Description
    X4239A 511-1210 Dual Port 4x DDR PCI Express Gen 2 Fabric Expansion Module, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X4263A 373-0315 Dual 10-Gigabit Pass-Thru Fabric Expansion Module (FEM), RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X4680A 375-3590 16GB Compact Flash, RoHS:Y
    X4249A 16 GB (2 × 8GB PC2-5300 DDR2 DIMMs) Assembly, RoHS:YL
    371-4567 8GB PC2-5300 DDR2-667 DIMM, RoHS:Y
    X4261A 540-7669 4 GB (2 × 2GB PC2-5300 DDR2 DIMMs) Assembly, RoHS:Y
    • 371-4062
    • 2 GB PC2-5300 DDR2 DIMM, RoHS:Y
    X4262A 540-7670 8 GB (2 × 4GB PC2-5300 DDR2 DIMMs) Assembly, RoHS:Y
    • 371-4063
    • 4 GB PC2-5300 DDR2 DIMM, RoHS:Y
    n/a F541-3816 16 GB (2 & 8GB PC2-5300 DDR2 DIMMs), RoHS:Y
    • 371-4567
    • 8GB PC2-5300 DDR2-667 DIMM, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    X4607A 511-1098 RAID 0/1 Expansion Module, RoHS:Y
    X4620A 371-2658 RAID 5 Expansion Module (REM) Card Assembly, RoHS:YL
    371-2659 RAID Expansion Module (REM) Battery Back-up, RoHS:Y
    371-4078 Extension Cable, RoHS:Y
    530-4062 Battery Extension Cable, RoHS:Y
