Oracle Sun Blade X6275 Server

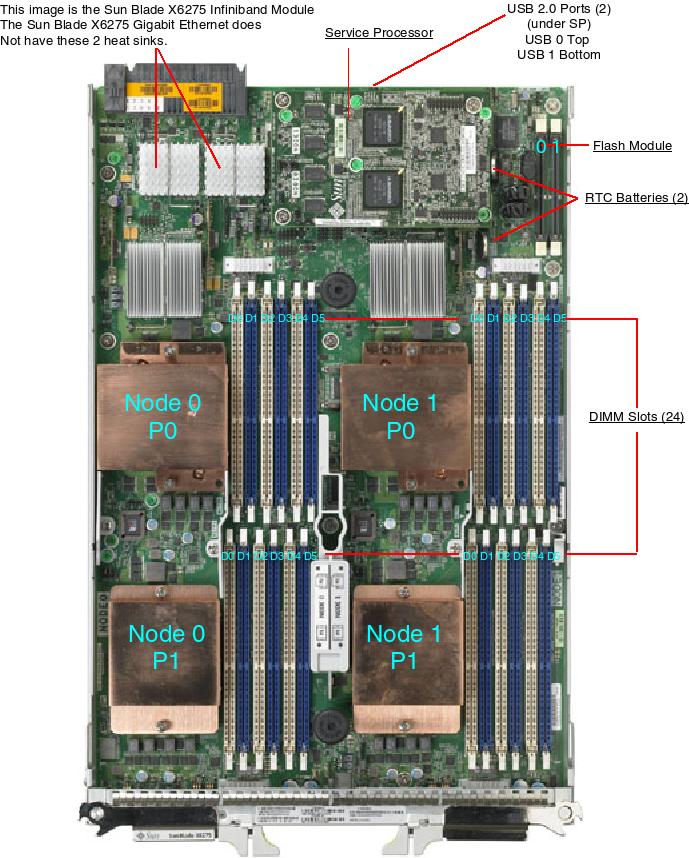

Oracle Sun Blade X6275 Server Oracle Sun Blade X6275 Server SunBladeX6275 top callout

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Brand: Oracle / Sun Microsystems
    Condition: Refurbished and new (limited availability)
    Availability: Contact
    Shipping Area: Worldwide to most countries
    Shipping Method: Fedex (most orders), UPS, DHL, Freight Courier
    Price: Please use the quote form above for quick pricing
    Payment: Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
    Guarantee: All items are tested by Oracle trained technicians & backed by a 100% warranty
    Questions? Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements



    Specs and Information:



    Processor
    Number Two dual compute nodes. 2 CPUs/node, 8 cores/node, 16 cores/blade.
    Architecture Type:Quad-core, Intel[TM] Xeon 5500 series processors provide Intel Quick Path Interconnect (QPI), Hyper-Threading (HT) and Intel Turbo Boost Technology.
    • Model/Speed: L5520, Quad-Core, 2.26 GHz, 60W
    • Model/Speed: E5520, Quad-Core, 2.26 GHz, 80W
    • Model/Speed: E5540, Quad-Core, 2.53 GHz, 80W
    • Model/Speed: X5560, Quad-Core, 2.80 GHz, 95W
    • Model/Speed: X5570, Quad-Core, 2.93 GHz, 95W
    Cache Memory 8 MB, L3 Cache
    Main Memory
    Memory Type 1333 and 1066 MHz DDR3 Registered DIMMs
    Capacities
    • Maximum memory: 96GB.
    • Total DIMM slots: 24 (12 per node).
    • DIMM sizes: 2GB, and 4GB.
    Sun Flash Modules
    • Optional 24GB SATA-based Sun Flash Module provide storage acceleration and a boot source.
    Management Environment
    Sun Blade Server Module Service Processor (SP)
    • There are two SPs (1/node) on the SP mezzanine card.
    • The SPs run Integrated Lights-Out Manager (ILOM).
    • The SP card provides dedicated Management 10/100 Management Ethernet Port.
    • ILOM on the SP card can be accessed via a Dongle cable assembly’s connection to the Universal Connector Port (UCP) on the front of the Sun Blade X6275. The Sun Blade X6275 server module support the (3-port) dongle cable (X-Option part number X4622A).
    • The SP card and ILOM provide the following:
      • A Browser User Interface for control of the system through a graphical interface.
      • Remote media management over ip with full Keyboard, Video, Mouse, and Storage (KVMS) redirection.
      • DMTF style CLI.
      • IPMI 2.0 compliance for management and control.
      • Compatibility for third-party SNMP system managers with requirements for SNMP (v1, v2C, v3).
      • Monitor and report system and component status on all Field Replaceable Units (FRUs).
    Standard Integrated Interfaces
    Universal Connector Port (UCP) There are two UCPs on the Sun Blade X6275 – 1/node. Available via the Dongle Cable Assembly (Option X4622A/3 cable) connection to the UCP, each UCP provides:
    • 2 USB 2.0 ports.
    • VGA graphics (DB-15 connector)
    • RJ-45 serial port for ILOM console.
    Network Management
    • One 10/100Base-T Ethernet connection per node.
    Ethernet
    • One 10/100/1000Base-T Ethernet port per node.
    Midplane I/O per compute node
    • One (x8) PCI Express Gen 2 bus to the PCI ExpressModule (EM) slot.
    • One 10/100/1000Base-T Ethernet Interface using Intel 82567 GbE controller, interface to one NEM.
    • 10/100 Ethernet management port to the Chassis Monitoring Module (CMM). (Note:Shared between 2 compute nodes via on-board switch).
    PCI Interfaces with the Sun Blade Modular System (chassis)
    • The Sun Blade X6275 has two PCI Express Gen 2 interfaces per server module (one per compute node), via passive mid-plane.
    • I/O is offered in two form factors:
      • PCI Express ExpressModules (EM)
        and
      • PCI Express Network Express Modules (NEM).
    • Each Sun Blade X6275 has four, PCI Express links allocated to:
      • Two EMs
        and
      • Two NEMs.
    • Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
    • EM slots are not shared between server modules. Each EM slot is specific to one server module.
    Regulations
    Dimensions and Weights
    Height 44.0 mm (1.7 in).
    Width 327.0 mm (12.87 in).
    Depth 512.0 mm (20.16 in).
    Weight (fully configured) 20.61 lbs.
    Blade
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X6275-AA 1 [S] Sun Blade X6275 Server InfiniBand Module Base Blade Assembly
    540-7835 [F] Sun Blade X6275 Motherboard Assembly (with InfiniBand) n/a
    • 375-3603
    • Sun Blade X6275 Motherboard (with InfiniBand)
    		 n/a
      • 371-2210 [C]
      • 3V Lithium Coin Cell Battery
    		 n/a
    • 375-3611 [F]
    • Mezzanine Card with 2 Service Processors (1 per node)
    		 n/a
    X6275-BA 2 [S] Sun Blade X6275 Server Gigabit Ethernet Module Base Blade Assembly
    540-7836 [F] Sun Blade X6275 Motherboard Assembly (without InfiniBand) n/a
    • 375-3604
    • Sun Blade X6275 Motherboard (without InfiniBand)
    		 n/a
      • 371-2210 [C]
      • 3V Lithium Coin Cell Battery
    		 n/a
    • 375-3611 [F]
    • Mezzanine Card with 2 Service Processors (1 per node)
    		 n/a
    n/a 7069586 [F] Sun Blade X6275 Motherboard Assembly (with InfiniBand) n/a
    • 375-3603
    • Sun Blade X6275 Motherboard (with InfiniBand)
    		 n/a
      • 371-2210 [C]
      • 3V Lithium Coin Cell Battery
    		 n/a
    • 375-3611 [F]
    • Mezzanine Card with 2 Service Processors (1 per node)
    		 n/a
    n/a 7069587 [F] Sun Blade X6275 Motherboard Assembly (without InfiniBand) n/a
    • 375-3604
    • Sun Blade X6275 Motherboard (without InfiniBand)
    		 n/a
      • 371-2210 [C]
      • 3V Lithium Coin Cell Battery
    		 n/a
    • 375-3611 [F]
    • Mezzanine Card with 2 Service Processors (1 per node)
    		 n/a
    1 Supported in Sun Blade 6048 Modular System. Not supported in Sun Blade 6000 Modular System.
    2 X6275-BA is not compatible in Sun Blade 6000 A90-D chassis.
    CPU Module
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X6275-X-14L2260 [S] 4 CPU Upgrade Kit, 2.26GHz, L5520
    371-4302 [F] 2.26GHz Intel Quad-Core Xeon L5520, 8MB, 60W n/a
    X6275-X-14M2260 [S] 4 CPU Upgrade Kit, 2.26GHz, E5520
    371-4477 [F] 2.26GHz Intel Quad-Core Xeon E5520, 8MB, 80W n/a
    X6275-X-14M2530 [S] 4 CPU Upgrade Kit, 2.53GHz, E5540
    371-4300 [F] 2.53GHz Intel Quad-Core Xeon E5540, 8MB, 80W n/a
    X6275-X-14M2800 [S] 4 CPU Upgrade Kit, 2.80GHz, X5560
    371-4299 [F] 2.80GHz Intel Quad-Core Xeon X5560, 8MB, 95W n/a
    X6275-X-14M2930 [S] 4 CPU Upgrade Kit, 2.93GHz, X5570
    371-4298 [F] 2.93GHz Intel Quad-Core Xeon X5570, 8MB, 95W n/a
    Cables
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X4622A [S] Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
    530-3100 [C] RJ45F to DB9F Adapter n/a
    7046680 [C] USB/VGA/RJ45 Dongle Cable Adapter 530-3936 [C]
    X4622A-N [S] Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
    530-3100 [C] RJ45F to DB9F Adapter n/a
    7046680 [C] USB/VGA/RJ45 Dongle Cable Adapter 530-3936 [C]
    n/a 530-3934 [C] USB/VGA/DB-9/RJ45 Dongle Cable Adapter n/a
    n/a 530-3936 [C] USB/VGA/RJ45 Dongle Cable Adapter n/a
    Memory
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X4670A [S] 2 GB Memory Option
    371-4426 [C] 2GB Registered DDR3-1066 DIMM n/a
    X4672A [S] 8 GB Memory Option
    371-4427 [C] 8GB Registered DDR3-1066 DIMM n/a
    X4673A [S] 2 GB Memory Option
    371-4428 [C] 2GB Registered DDR3-1333 DIMM n/a
    X4674A [S] 4 GB Memory Option
    371-4429 [C] 4GB Registered DDR3-1333 DIMM n/a
    X4676A [S] 2 × 24GB SATA-based Sun Flash Modules (FMOD)
    371-4531 [C] 24GB SATA-based Sun Flash Module n/a
    System Service Processor
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 375-3611 [F] Mezzanine Card with 2 Service Processors (1 per node) n/a
