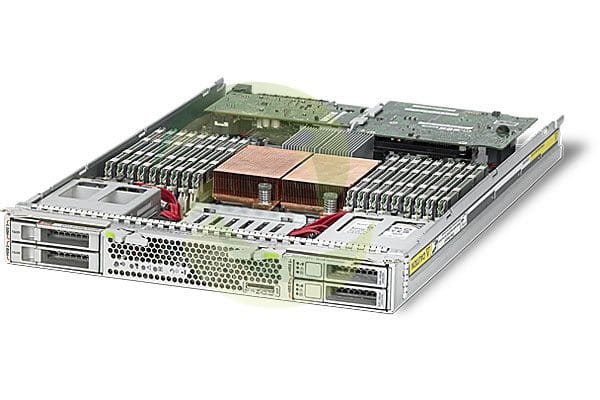

Oracle Sun BLADE X6270 M2 SERVER MODULE

Oracle Sun BLADE X6270 M2 SERVER MODULE Oracle Sun BLADE X6270 M2 SERVER MODULE SUN BLADE X6270 M2 SERVER MODULE X6270

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*

    Processor
    Number Up to two.
    Architecture Type:Quad-core and Six-core, Intel[tm] Xeon 5600 series processors with QuickPath Interconnect (QPI), Turbo Boost and Hyper-Threading (HT) technology.
    • Model/Speed/Watts: E5620, 2.40 GHz, 80W
    • Model/Speed/Watts: X5670, 2.93 GHz, 95W
    • Model/Speed/Watts: X5680, 3.33 GHz, 130W
    Cache Memory 32KB instruction and 32KB data L1 cache per core
    256KB unified (data and instruction) L2 cache per core
    12MB shared inclusive L3 cache per processor
    Main Memory
    Memory Type DDR3-1066/PC3-8500 and DDR3-1333/PC3-10600 DIMMs.
    Capacities
    • Total DIMM slots: 18.
    • DIMM type: DDR3 1066MHz or 1333MHz Registered DIMMs
    • DIMM sizes: 4 GB and 8 GB 1066MHz. 4GB 1333MHz.
    • Maximum capacity: 144 GB (when configured with 8-GB DIMMs).
    Compact Flash
    • 4 GB USB 2.0 Flash drive option.
    Optional Storage
    Disk
    • Up to four optional, hot swappable, hot pluggable, SAS, SATA, or SATA SSD drives per blade.
    • Mixing disk types (i.e. one SAS disk and one SATA disk) on same X6270 Server Module is not supported.
    Drive Type Density Speed Form Factor
    SAS 146.8 GB 10,000 RPM 2.5″
    SAS 300 GB 10,000 RPM 2.5″
    SATA 500 GB 5,400 RPM 2.5″
    Solid State Drives
    • 32 GB SATA solid state drive.
    Management Environment
    Sun Blade Server Module Service Processor (SP)
    • The SP is not a separate card. It is embedded on the motherboard.
    • The SP is installed with Integrated Lights-Out Manager (ILOM 3.0).
    • The SP provides one 10/100 Management Ethernet Port to Midplane and the Chassis Monitoring Module (CMM).
    • ILOM on the SP card can be accessed via the Dongle cable assembly.
      • The three-cable (X4622A) dongle cable option can be used to connect to ILOM using the Universal Connector Port (UCP) on the front of the Sun Blade X6270 M2.
      • Use the RJ-45 serial connector on the 3-cable dongle to connect to ILOM via the UCP.
    • The SP card and LOM provide the following:
      • Remote management with full Keyboard, Mouse, Video, Storage (KVMS) redirection.
      • Remove media capability (floppy, DVD, CD etc.).
      • DMTF style CLI.
      • Browser-based UI for control of the system through a graphical interface.
      • IPMI 2.0 compliance for management and control.
      • SNMP V1, V2c, V3 for system monitoring.
      • Monitor and report system and component status on all FRUs.
    Standard Integrated Interfaces
    Universal Connector Port (UCP) The Dongle Cable assembly connects to the UCP and provides the following:
    • Connection to ILOM SP.
    • 2 USB 2.0 ports.
    • VGA video connection to an on-board AST2100 graphics chip.
    Network Management Two 10/100Base-T Ethernet connection via midplane to the CMM. Only one connection (NET 0) is used.
    Ethernet Two 10/100/1000Base-T Gigabit Ethernet ports provided by the network express modules (NEMs) installed in the chassis.
    The lower NEM port is NET 0 and the upper NEM port is NET 1.
    PCI Interfaces with the Sun Blade Modular System (chassis)
    • I/O is offered in two form factors:
      • PCI Express ExpressModules (EM)
        and
      • PCI Express Network Express Modules (NEM).
    • Each Sun Blade X6270 M2 has four, PCI Express Gen 2 links allocated to:
      • Two EMs (X8)
        and
      • Two NEMs (X8).
    • Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
    • EM slots are not shared between server modules. Each EM slot is specific to one server module.
    Regulations
    RoHS Compliance Level RoHS:Y
    Dimensions and Weights
    Height 44mm (1.7 in).
    Width 327mm (12.87 in).
    Depth 512mm (20.16 in).
    Weight (with 4 disks, 1 FEM, 1 REM, 2 processors) 7.9 kg (17.4 lbs).
    Blade
    Option # Manufacturing
    Part #    		 Description
    X6270-AB 541-4078 Sun Blade X6270 M2 Motherboard Assembly, RoHS:Y
    • 501-7843
    • 2-Slot Disk Backplane, RoHS:Y
    • 511-1418
    • Sun Blade X6270 M2 Motherboard, RoHS:Y
    • 530-4037
    • Disk Backplane Power Cable, RoHS:Y
    CPU Module
    Option # Manufacturing
    Part #    		 Description
    X6270-X-14M2400 371-4885 2.4GHz Intel Quad-Core Xeon E5620, 12MB, 80W, RoHS:Y
    X6270-X-16H3330 371-4890 3.33GHz Intel 6-Core Xeon X5680, 12MB, 130W, RoHS:Y
    X6270-X-16M2930 371-4889 2.93GHz Intel 6-Core Xeon X5670, 12MB, 95W, RoHS:Y
    n/a 250-1802 Alcohol Wipe Cleaner
    n/a 310-0065 Thermal Grease, Syringe, RoHS:Y
    n/a 541-2545 Xeon Heatsink w/Grease, RoHS:Y
    Cables
    Option # Manufacturing
    Part #    		 Description
    X4622A Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, RoHS:YL
    530-3100 RJ45F to DB9F Adapter, RoHS:Y
    530-3936 USB/VGA/RJ45 Dongle Cable Adapter, RoHS:Y
    n/a 530-4037 Disk Backplane Power Cable, RoHS:Y
    n/a 542-0376 Cable Kit Assembly. RoHS:Y
    • 530-3993
    • HDD Data Cable, RoHS:Y
    • 530-4376
    • SFF-8087 to 4x SATA Cable, RoHS:Y
    Disks
    Option # Manufacturing
    Part #    		 Description
    XRA-SS2CF-300G10K 540-7869 300GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0449
    • Seagate ST93000SSUNG [ST930003SSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0451
    • Hitachi HUC103030CSS600 [H103030SCSUN300G]
      (300GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-2123
    • Marlin Bracket 2.5″, RoHS:Y
    XRA-ST2CF-32G2SSD 540-7841 32GB Solid State Drive Assembly, SATA Interface, RoHS:Y
    • 371-4196
    • 32GB Solid State Drive, SATA Interface, RoHS:Y
    • 541-2123
    • Marlin Bracket 2.5″, RoHS:Y
    XRA-ST2CF-500G7K 542-0184 500GB – 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0468
    • Seagate ST9500530NS [ST95000NSSUN500G]
      (500GB – 7200 RPM – SATA Disk), RoHS:Y
    • 541-4199
    • Marlin Bracket 15mm, RoHS:Y
    XRB-SS2CF-146G10K 540-7868 146GB – 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
    • 390-0324
    • Seagate ST9146802SS [ST914602SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0377
    • Hitachi HUC101414CSS300 [H101414SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0448
    • Seagate ST9146803SS [ST914603SSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 390-0450
    • Hitachi HUC103014CSS600 [H103014SCSUN146G]
      (146GB – 10000 RPM – SAS Disk), RoHS:Y
    • 541-2123
    • Marlin Bracket 2.5″, RoHS:Y
    Ethernet
    Option # Manufacturing
    Part #    		 Description
    X4263A 373-0315 Dual 10-Gigabit Pass-Thru Fabric Expansion Module (FEM), RoHS:Y
    X4871A-Z 375-3648 Dual 10-Gigabit Ethernet Fabric Expansion Module (FEM), RoHS:Y
    Memory
    Option # Manufacturing
    Part #    		 Description
    X4851A 371-4899 8GB Registered DDR3-1066 DIMM, RoHS:Y
    X4910A 371-4965 4GB Registered DDR3-1333 DIMM, RoHS:Y
    X4911A 371-4966 8GB Registered DDR3-1333 DIMM, RoHS:Y
    XRA-S-4G2-USB2 371-4743 4GB USB 2.0 Flash Drive, RoHS:Y
    X4850A 371-4898 4GB Registered DDR3-1333 DIMM, RoHS:Y
    SCSI
    Option # Manufacturing
    Part #    		 Description
    SGX-SAS6-R-REM-Z 371-4746 6Gigabit SAS RAID PCI Battery Module, BBU07, RoHS:Y
    371-4982 6Gigabit SAS RAID PCI Battery Module, BBU08, RoHS:Y
    375-3647 6Gbps SAS-2 RAID Expansion Module, B2/B4 ASIC, RoHS:Y
