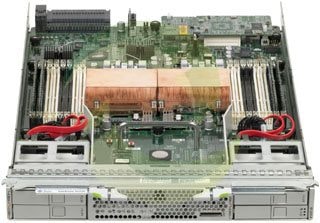

Oracle Sun BLADE X6220 SERVER MODULE

REQUEST A PRICE QUOTE:

Processor

Number

Two Socket.

Architecture

Type:Dual-core, Opteron 2000 Series

Model/Speed:2212 Series, 2.0 GHz
Model/Speed:2218 Series, 2.6 GHz
Model/Speed:2220 Series, 2.8 GHz
Model/Speed:2222 Series, 3.0 GHz

Cache Memory

1 MB, L2 Cache

Main Memory

Memory Type

DDR2-667MHz / PC2-5300 ECC Registered DIMMs.
Support for ChipKill with a minimum of 4 DIMMs of same capacity.
Once all 8 DIMM slots are occupied, all DIMMs will run at 553MHz per AMD spec.

Capacities

Maximum memory: 64GB.
DIMM slots per CPU socket: 8
Total DIMM slots: 16.
DIMM sizes: 1GB, 2GB and 4GB.
Memory must be populated in increments of 2 DIMMs per socket.

Optional Storage

Disk

Up to four optional, hot swappable, hot pluggable, SATA or SAS drives per blade.
Mixing disk types (i.e. one SAS disk and one SATA disk) on same X6220 Server Module is not supported.

Drive Type	Density	Speed	Form Factor	RAID	Controller
SAS	73 GB	15,000 RPM	2.5″	RAID 0/1/5/6 through RAID controller	Onboard LSI 1068E
SAS	146 GB	10,000 RPM	2.5″	RAID 0/1/5/6 through RAID controller	Onboard LSI 1068E
SAS	73 GB	10,000 RPM	2.5″	RAID 0/1/5/6 through RAID controller	Onboard LSI 1068E
SATA	80 GB	5,400 RPM	2.5″	RAID 0 or 1	Onboard LSI 1068E

IDE Compact Flash

8GB Compact Flash Type II (supports Linux boot) is on the motherboard.

Management Environment

Sun Blade Server Module Service Processor (SP)

The SP card is installed with Integrated Lights-Out Manager (ILOM) software.
ILOM on the SP card can be accessed via the Dongle cable assembly’s DB9 connector to the Universal Connector Port (UCP) on the front of the Sun Blade X6220.
The Dongle cable assembly is provided with the Sun Blade 6000 chassis and also orderable. Option X4621A.
The SP card and ILOM provide the following:
- Support for Sun Management Center with add-on software.
- Support for Sun N1 System Manager.
- Compatibility for third-party SNMP system managers with requirements for SNMP (v1, v2C, v3).
- A Browser User Interface (HTTP/HTTPS).
- DMTF/CLP based CLI and SSH.
- Support for RADIUS, LDAP, and MS Active Directory.
- IPMI 2.0 (Host access through KCS and remote), Remote KVMS/Java Console (redirected Keyboard Video Mouse and Storage through a JAVA Application).

Standard Integrated Interfaces

Universal Connector Port (UCP)

The Dongle Cable Assembly (Option X4621A) that ships with the Sun Blade 6000 chassis connects to the UCP and provides the following:

VGA HD15 port to the ATI Rage XL graphics chip.
2 USB 2.0 ports.
DB9 serial port (for connection to SP ILOM).
RJ45 port. Not supported on the Sun Blade X6220 or X6250.
DB9F to RJ45F DCE Adapter.

Network management

Two 10/100Base-T Ethernet port connection via midplane to the Chassis Monitoring Module (CMM). Only one connection (NET 0) is used.

Ethernet

Two 10/100/1000Base-T Ethernet ports routed through midplane to 2 NEM slots.

PCI Interfaces with the Sun Blade Modular System (chassis)

I/O is offered in two form factors:
- PCI Express ExpressModules (EM)
  and
- PCI Express Network Express Modules (NEM).
Each Sun Blade X6220 has four, x8 lane PCI Express links allocated to:
- Two EMs
  and
- Two NEMs.
Each NEM has one link assigned to each server module. All server modules share the NEM. For example, Blade 0 has access to NEM 0/slot 0, and NEM 1/slot 0. Blade 1 to NEM 0/slot 1 and NEM 1/slot 1, etc.
EM slots are not shared between server modules. Each EM slot is specific to one server module.

Regulations

RoHS Compliance Level

RoHS:YL

Dimensions and Weights

Height

44.5mm (1.75 in).

Width

327.15mm (12.88 in).

Depth

496.82 (19.56 in).

Weight (fully configured)

7.24 kg (15.95 lbs).

Blade
Option #	Manufacturing Part #	Description
X4271A	594-4497	Sun Blade X6220 Server Module with 4GB Memory (4 × 1GB) and 2 CPUs (2.0 GHz, Opteron 2212), RoHS:YL
	310-0091	Heat Sink, RoHS:Y
	371-2435	1 GB DDR2 DIMM, RoHS:Y
	371-2496	2.0 GHz CPU, Opteron 2212 Dual Core, F3 Stepping, 95W, RoHS:Y
	540-7612	Blade Motherboard Assembly
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	501-7391	Disk Backplane, RoHS:YL
	530-3888	Hard Disk Drive Power Cable, RoHS:Y
	541-0605	Blank Disk Drive Filler, RoHS:Y
X4272A	594-4498	Sun Blade X6220 Server Module with 8GB Memory (8 × 1GB) and 2 CPUs (2.6 GHz, Opteron 2218), RoHS:Y
	310-0091	Heat Sink, RoHS:Y
	371-2435	1 GB DDR2 DIMM, RoHS:Y
	371-2500	2.6 GHz CPU, Opteron 2218 Dual Core, F3 Stepping, 95W, RoHS:Y
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	540-7612	Blade Motherboard Assembly
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	501-7391	Disk Backplane, RoHS:YL
	530-3888	Hard Disk Drive Power Cable, RoHS:Y
	541-0605	Blank Disk Drive Filler, RoHS:Y
X4273A	594-4499	Sun Blade X6220 Server Module with 16GB Memory (8 × 2GB) and 2 CPUs (2.8 GHz, Opteron 2220), RoHS:Y
	310-0091	Heat Sink, RoHS:Y
	371-2436	2 GB DDR2 DIMM, RoHS:Y
	371-2501	2.8 GHz CPU, Opteron 2220 Dual Core, F3 Stepping, 95W, RoHS:YL
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	540-7612	Blade Motherboard Assembly
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	501-7391	Disk Backplane, RoHS:YL
	530-3888	Hard Disk Drive Power Cable, RoHS:Y
	541-0605	Blank Disk Drive Filler, RoHS:Y
X4274A	594-5215	Sun Blade X6220 Server Module with 16GB Memory (8 × 2GB) and 2 CPUs (3.2 GHz, Opteron 2224SE,120W), RoHS:YL
	310-0091	Heat Sink, RoHS:Y
	371-2436	2 GB DDR2 DIMM, RoHS:Y
	371-3487	3.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W, RoHS:Y
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	540-7612	Blade Motherboard Assembly
	501-7324	Blade Motherboard, RoHS:YL
	150-3993	Panasonic BR2032 Battery, RoHS:Y
	501-7391	Disk Backplane, RoHS:YL
	530-3888	Hard Disk Drive Power Cable, RoHS:Y
	541-0605	Blank Disk Drive Filler, RoHS:Y

CPU Module
Option #	Manufacturing Part #	Description
n/a	310-0091	Heat Sink, RoHS:Y
n/a	371-2496	2.0 GHz CPU, Opteron 2212 Dual Core, F3 Stepping, 95W, RoHS:Y
n/a	371-2500	2.6 GHz CPU, Opteron 2218 Dual Core, F3 Stepping, 95W, RoHS:Y
n/a	371-2501	2.8 GHz CPU, Opteron 2220 Dual Core, F3 Stepping, 95W, RoHS:YL
n/a	371-2502	3.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W, RoHS:Y
n/a	371-3487	3.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W, RoHS:Y

Cables
Option #	Manufacturing Part #	Description
X4622A	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, RoHS:YL
	530-3100	RJ45F to DB9F Adapter, RoHS:Y
	530-3936	USB/VGA/RJ45 Dongle Cable Adapter, RoHS:Y

Disk Backplane
Option #	Manufacturing Part #	Description
n/a	501-7391	Disk Backplane, RoHS:YL

Disks
Option #	Manufacturing Part #	Description
XRA-SS2CD-73G15K	540-7360	73GB – 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, RoHS:Y
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB – 15000 RPM – SAS Disk), RoHS:Y
	541-0239	Nemo Bracket, RoHS:Y
XRB-SS2CD-146G10KZ	540-7151	146GB – 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets, RoHS:Y
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB – 10000 RPM – SAS Disk), RoHS:Y
	541-0239	Nemo Bracket, RoHS:Y
	541-3004	Nemo Bracket with Insulator, RoHS:Y
XRB-SS2CD-73G10KZ	540-6611	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, RoHS:Y
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB – 10000 RPM – SAS Disk), RoHS:Y
	541-0239	Nemo Bracket, RoHS:Y
	541-3004	Nemo Bracket with Insulator, RoHS:Y
XRB-ST3CD-200G5K	540-7554	200GB – 5400 RPM SATA Disk Assrmbly with 1 bracket and 1 of the following disks, RoHS:Y
	390-0407	Fujitsu MHY2200BS [MHY2200BSSUN200G] (200GB – 5400 RPM – SATA Disk), RoHS:Y
	541-3004	Nemo Bracket with Insulator, RoHS:Y
XRB-ST3CD-80G5KZ	541-1115	80GB – 5400 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:, RoHS:Y
	390-0250	Fujitsu MHV2080BS [MHV5480SBSUN80G] (80GB – 5400 RPM – SATA Disk), RoHS:Y
	541-0239	Nemo Bracket, RoHS:Y

Memory
Option #	Manufacturing Part #	Description
X4291A	2 GB (2 × 1GB DDR2 DIMMs), RoHS:YL
	540-7255	2 GB (2 × 1GB DDR2 DIMMs), RoHS:Y
	371-2435	1 GB DDR2 DIMM, RoHS:Y
X4292A	4 GB (2 × 2GB DDR2 DIMMs), RoHS:YL
	540-7256	4 GB (2 × 2GB DDR2 DIMMs)
	371-2436	2 GB DDR2 DIMM, RoHS:Y
X4293A	8 GB (2 × 4GB DDR2 DIMMs), RoHS:YL
	540-7257	8 GB (2 × 4GB DDR2 DIMMs)
	371-2437	4 GB DDR2 DIMM, RoHS:Y
X4298A	2GB (2 × 1GB DDR2-667 DIMMs), RoHS:YL
	540-7255	2 GB (2 × 1GB DDR2 DIMMs), RoHS:Y
	371-2435	1 GB DDR2 DIMM, RoHS:Y
X4299A	4GB (2 × 2GB DDR2-667 DIMMs), RoHS:YL
	540-7256	4 GB (2 × 2GB DDR2 DIMMs)
	371-2436	2 GB DDR2 DIMM, RoHS:Y
X4300A	8GB (2 × 4GB DDR2-667 DIMMs), RoHS:YL
	540-7257	8 GB (2 × 4GB DDR2 DIMMs)
	371-2437	4 GB DDR2 DIMM, RoHS:Y
X4625A	371-2905	8GB Compact Flash, RoHS:Y

System Service Processor
Option #	Manufacturing Part #	Description
n/a	501-7712	Service Processor Assembly, RoHS:YL
n/a	501-7986	Service Processor, RoHS:YL
