Oracle Sun Blade Storage Module M2 Server

REQUEST A PRICE QUOTE:

Brand:	Oracle / Sun Microsystems
Condition:	Refurbished and new (limited availability)
Availability:	Contact
Shipping Area:	Worldwide to most countries
Shipping Method:	Fedex (most orders), UPS, DHL, Freight Courier
Price:	Please use the quote form above for quick pricing
Payment:	Credit Card, Check, Net Terms (oac), Wire Transfer (required for international orders)
Guarantee:	All items are tested by Oracle trained technicians & backed by a 100% warranty
Questions?	Don’t hesitate to contact us with any questions regarding compatibility or other product info and requests. Our website represents only a fraction of our full inventory. Please reach out with your full requirements

Specs and Information:

Capacity

Sun Blade 6000 Modular System

Capacity is dependent on RAID Expansion Module (REM). Up to 7 or 9 Sun Blade Storage Module M2s per Sun Blade 6000 chassis.

Number

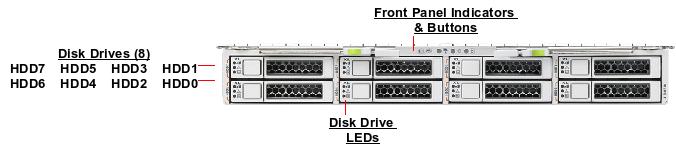

Up to 8 disks per Sun Blade Storage Module M2.

Type

2.5 inch/SAS-2.

Total Storage

Up to 2.4 TB (8 × 300GB) per Sun Blade Storage Module M2.

Storage

Disks

Drive Type	Density	Speed	Form Factor
SAS-2	200 GB	10K RPM	2.5″
SAS-2	300 GB	10K RPM	2.5″
SAS-2	600 GB	10K RPM	2.5″

Storage I/O and Data Rate

Two (x2) SAS-2 6.0 Gb/sec interfaces to midplane for routing to Network Express Modules (NEMS).

SAS Expander

2 x 36 port SAS-2 internal expanders.

Management Environment

Sun Blade 6000 CMM

The Sun Blade Storage Module M2 does not have a Service Processor (SP). Management is provided by the Sun Blade 6000 Modular System’s Chassis Monitoring Module’s (CMM).

Integrated Lights Out Management (ILOM) on the CMM provides basic information for Sun Blade Storage Modules or SAS-NEMs.
The CMM also provides the Sun Blade Zone Manager feature. The Sun Blade Zone Manager is a Graphical User Interface (GUI) based systems management tool that allows users to quickly and easily connect Sun Blade Server Modules to Sun Blade Storage Modules to setup multiple zones.
Zones enable simplified management and better security within the Sun Blade 6000 Modular System.

Environment

Cooling

Front to back forced air

Humidity

10-90% non-condensing

Temperature

5-45 ° C operating (-40-70 ° C storage)

Altitude

0-10000ft (3048 meters)

Regulations

Dimensions and Weights

Blade Height

Height = 1.7 in (44mm)

Blade Width

Width = 12.87 in (327mm)

Blade Depth

Depth = 20.16 in (512mm)

Weight

8 Disks:16.3 lbs (7.4kg)

Blade
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-7963 [F]	Sun Blade Storage Module M2	n/a
	511-1365	Storage Module M2 Board	n/a
	511-1545	Disk Backplane Board	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-4387	Backplane Power Cable	n/a
n/a	530-4388	Backplane Data Cable	n/a
n/a	530-4389	Backplane Data Cable	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CM-300G10K2 [S]	542-0300 [C]	300GB – 10000 RPM, Disk Assembly with 1 bracket and 1 disk:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	371-4760	Manta Ray 2.5″ Bracket	n/a
XRA-SS2CM-600G10K2 [S]	542-0311 [C]	600GB – 10000 RPM, Disk Assembly with 1 bracket and 1 disk:	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB – 10000 RPM – SAS Disk)	n/a
	371-4760	Manta Ray 2.5″ Bracket	n/a
XRB-SS2CM-300G10K2 [S]	542-0387 [C]	300GB – 10000 RPM, Disk Assembly with 1 bracket and 1 disk:	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB – 10000 RPM – SAS Disk)	n/a
	371-4760	Manta Ray 2.5″ Bracket	n/a
n/a	350-1524	Manta Ray Filler (8516A)
