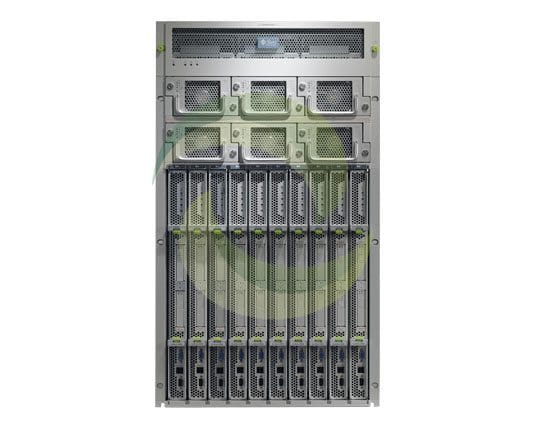

Used Oracle Sun 8000 P Modular System Server

Oracle Sun 8000 P Modular System Server

REQUEST A PRICE QUOTE:

Capacity
Number	Up to 2 PCI Express Network Express Modules (NEM). Up to 10 hot-pluggable Sun Blade[tm] Server Modules. 4, 3000-Watt, N+1 redundant power supplies; 9000W total system power. 9 fan modules each with 2 independent fans. Up to 2 redundant Chassis Monitoring Modules with failover capability. Up to 64 Gbps of I/O throughput via PCIe lanes to the midplane.
Management Environment The Sun Blade 8000 P Modular System has a tiered system management architecture that allows management at either the chassis level or the Server Module level.
Common System Management for both the Chassis and the Server Module	Integrated Lights Out Management (ILOM) 1.1 with RKVMS (Remote Keyboard Video Mouse) is pre-installed on the CMM and the SP. ILOM will run on standby power. Support for Sun N1 System Manager 1.3.1. Compatibility for third-party SNMP system managers with requirements for SNMP (v1, v2C, v3) and IPMI (2.0). System management is consistent with Sun Fire X4100 and Sun Fire X4200 servers.
Sun Blade 8000 P Chassis Monitoring Module (CMM)	For redundancy, a second CMM is optional. 1 RJ-45 dedicated management network 100BaseT port for Secure Shell CLI to ILOM, web GUI access to ILOM, IPMI 2.0, and SNMP v1, v2C, and V3. A DB-9 serial port to access ILOM CLI. The CMM’s network ports are independent and do not interfere with network data traffic on, for example, a Network Express Module (NEM) communication option. Connections to CMM’s Serial Management (DB-9 SERIAL MGT) port: Laptop USB to SERIAL MGT port via serial null modem or cross over cable. Network to Dongle DB9F to RJ45F, DCE Adapter (part number 530-3813 ships with chassis) to SERIAL MGT port. Managing through the CMM does allow Server Module level management.
Sun Blade Server Module Service Processor (SP)	Server Module management (ILOM) can be accessed directly via the dedicated DB-9 serial port located on the front of the Server Module or via the CMM.
Power Supplies
Number	Four, hot-plug / hot-swap, hihg efficiency _90% power supplies are provided in a N+1 redundant configuration.
Output	3000 W per power supply
Standard Integrated Interfaces
Network	The Sun Blade 8000 P, without an NEM, does not offer network or I/O connectivity.
Network Management	The CMM provides one RJ-45 100BaseT port and a DB-9 Serial Management port, the Server Module provides a DB-9 serial port. Reference the Management Environment section.
PCI Interfaces	The Sun Blade 8000 P Modular System I/O is architected using PCI Express technology. The Sun Blade 8000 chassis supports up to two optional Network Express Modules (NEMs), providing up to 64 Gb/s of I/O per blade server module. Only two of the x8 PCI Express slots per Server Module are allocated to the NEMs.
USB	Each optional Server Module provides two USB 2.0 ports.
Video	Each optional Server Module provides a VGA Video connection to the ATI Rage XL graphics chip.
Environment
AC input	Voltage: 200-240 VAC Frequency: 50-60 Hz Current: 16A per AC input Number of AC Inputs: 4 Maximum in-rush current: 40A Power Factor: 0.98 Power Calculator
Input power	AC input connection: AMER- L6-20P to IEC 320 C19; 2.5m; Sun PN 180-2005-01 EPAC- IEC 309 to IEC 320 320 C19; 2.5m; Sun PN 180-2004-01 Preinstalled in rack with power distribution unit – IEC 320 C20 to IEC 320 C19
Heat output	Thermal Design: Total system volumetric airflow (front to rear): 1500 (Cubic Feet per Minute) Airflow direction: Front to back Total heat dissipation / HVAC load: 30,735 BTU/hr (assuming 9,000W) Average temperature rise through chassis: 15° C (59° F)
Temperature	Operating: 5°C to 35°C (41° F to 95° F) Nonoperating: -40°C to 65°C (-40° F to 149° F)
Relative Humidity	Operating: 10% to 90% RH, non-condensing, 27° C max wet bulb Nonoperating: 5% to 93% RH, non-condensing, 38° C max wet bulb
Altitude	0 to 10,000 feet (3,048m)
Regulations Meets or exceeds the following requirements:
RoHS Compliance Level	RoHS:YL
Product Safety	UL approved to UL 60950 and C22.2 No. 60950 TUV approved to EN60950-1 and CB Report IEC 950 3rd Edition; including all amendments and full worldwide deviations GOST Certification Korean MIC Certification China CCC Mark for power supply only (system is exempt since it is rated greater than 1300W) CE Declaration of Conformance to the Electronic Compatibility Directive and Low Voltage Directive with accompanying “Technical Data File” Approval to Argentinian standards
Laser Product and Optical I/O	FCC Regulation to Code of Federal regulations 21 CFR 1040-Lasers TUV approval to IEC 60825-1 Safety of Laser Products Canadian Radiation Emitting Devices Act REDR C1370
Emissions and Immunities:
Electromagnetic Interference	47 CFR 15B (Code of Federal Regulations, Part 15, Subpart B) Class A EN55022:1998 Class A per EMC directive 89/336/EEC (CE Mark) VCCI Class A Industry Canada ICES-003 AS/NZ 3548 (Australia/New Zealand) CNS 13438 (Taiwan)
Immunity	EN55024:1998 per EMC Directive 89/336/EEC IEC 61000-4-2 Electrostatic discharge immunity test IEC 61000-4-3 Radiated, radio-frequency, electromagnetic field immunity test IEC 61000-4-4 Electrical fast transient/burst immunity test IEC 61000-4-5 Surge immunity test IEC 61000-4-6 Immunity to conducted disturbances, induced by radio-frequency fields IEC 61000-4-8 Power frequency magnetic field immunity test IEC 61000-4-11 Voltage dips, short interruptions, and voltage variations immunity tests
Line Distortion	EN 61000-3-2 per EMC Directive 89/336/EEC
Voltage Fluctuations and Flicker	EN 61000-3-3 per EMC Directive 89/336/EEC
Dimensions and Weights
Chassis Height	616.21mm (24.26 in) – 14 RU minus clearance
Chassis Width	444.5mm (17.50 in)
Chassis Depth	Includes chassis metal and front bezel:722mm (28.43 in) In rack, distance from front vertical mounting rail to rear of chassis:700mm (27.56 in)
Chassis Weight	Fully configured system 190.51kg (420lbs) Empty Chassis:34.02kg (75lbs)

Batteries
Option #	Manufacturing Part #	Description
n/a	150-1204	3V Lithium battery, RoHS:Y

Blade
Option #	Manufacturing Part #	Description
X5049A-Z	560-2819	Cat Door Actuator Upgrade Kit for Sun Blade X8400 Server Modules in the Sun Blade 8000 P, Qty=10, RoHS:Y
X5049A-Z	330-4511	Opteron Socket Blade Cat Door Opener, RoHS:Y

Cables
Option #	Manufacturing Part #	Description
X5074A-Z	4 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320, RoHS:Y
X5074A-Z	180-2005	AC Input Power Cord, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m, RoHS:Y
X5075A-Z	4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m, RoHS:Y
X5075A-Z	180-2004	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m, RoHS:Y
X5077A-Z	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M), RoHS:Y
X5077A-Z	180-2096	Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M), RoHS:Y
X5915A	2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M, RoHS:Y
X5915A	375-3493	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M, RoHS:Y
X5042A-Z	Sun Rack 1000-42 Cable Management Basket, RoHS:Y
X5042A-Z	371-1915	Sun Blade 8400 Cable Management Basket, RoHS:Y
X5043A-Z	530-3813	DB9F to RJ45F, DCE Adapter, RoHS:Y
X5076A-Z	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 1.5 M), RoHS:Y
X5076A-Z	180-2095	Power Cord, 20A, (IEC 320-C19 to IEC 320, 1.5 M), RoHS:Y

Communication
Option #	Manufacturing Part #	Description
X1289A-Z	541-1376	Sun 10-Port 4x DDR InfiniBand Network Express (NEM) Module Assembly, RoHS:YL

Ethernet
Option #	Manufacturing Part #	Description
X5040A-Z	541-0389	20-port Gigabit Ethernet Network Express Module (NEM), RoHS:YL

Fan
Option #	Manufacturing Part #	Description
n/a	370-7767	Front Indicator Module (FIM), RoHS:YL
n/a	541-0385	Rear Fan Module (RFM), RoHS:Y
n/a	541-2220	Rear Fan Tray Assembly, RoHS:YL
	501-7762	Rear Fan/Board Module (RFM), RoHS:YL
	541-0383	Rear Fan Cage, RoHS:Y

Fibre Channel
Option #	Manufacturing Part #	Description
SG-XPCIE2FCGBE-E-Z	371-4018	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex, RoHS:Y
SG-XPCIE2FCGBE-Q-Z	371-4017	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic, RoHS:Y
SG-XPCIE20FC-NEM-Z	375-3385	Sun StorageTek 4Gb 20-Port FC NEM Host Bus Adapter, RoHS:YL

I/O
Option #	Manufacturing Part #	Description
n/a	541-1548	I/O Chassis, RoHS:YL
	501-7519	Centerplane, RoHS:YL
	530-3782	Line Filter to Backplane AC Power Cable, RoHS:Y
	530-3790	Rear Indicator Module Cable, RoHS:Y
	530-3799	AC Ground Cable, RoHS:Y
	541-1551	Rear Interface Assembly, RoHS:Y
	371-2139	Rear Interface Module (RIM), RoHS:YL
	371-0308	IEC320 C20 Line Filter, RoHS:Y

Power
Option #	Manufacturing Part #	Description
n/a	300-1912	3048 Watt Power Supply, RoHS:YL

System Service Processor
Option #	Manufacturing Part #	Description
X5041A-Z	541-0388	Chassis Monitoring Module (CMM), RoHS:YL
