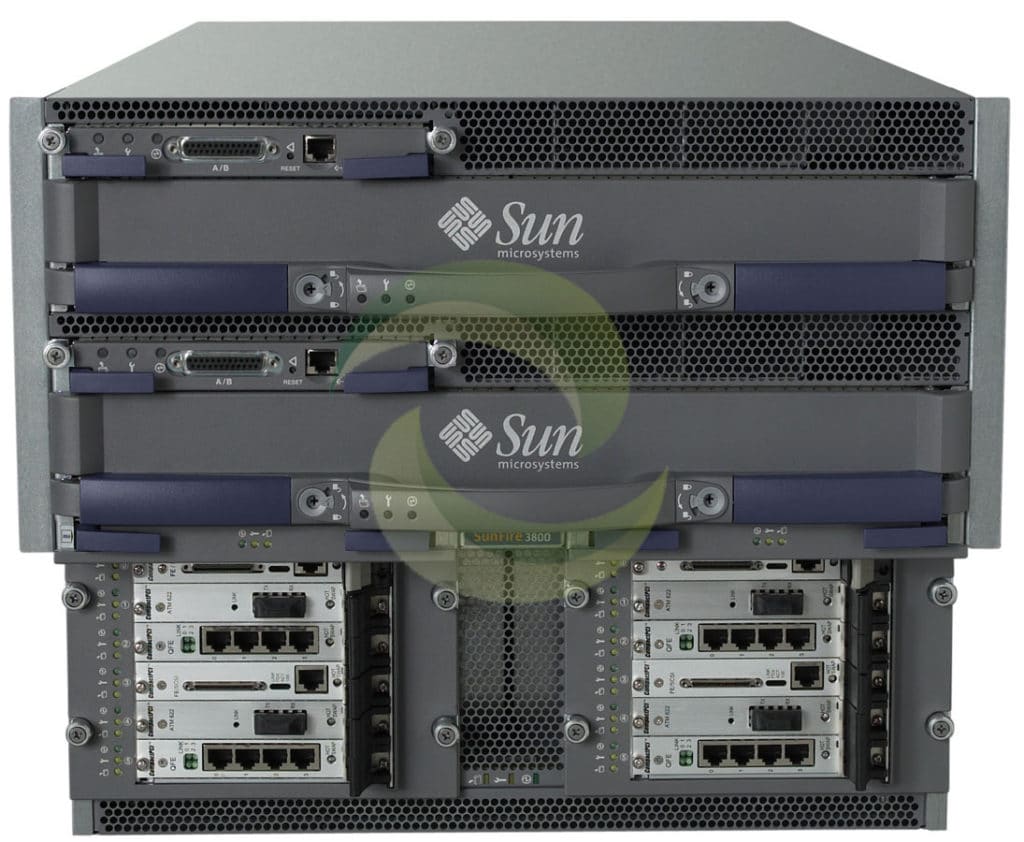

Processor | |
Number | Two to 8 |
Architecture | 750 MHz, 900MHz, 1050MHz or 1200 MHz UltraSPARC[tm] Cu (copper based) III |
Cache per processor | Primary (L1): 32 KB instruction, and 64 KB data cache Secondary (L2): 8 MB, ECC protected |
CPU interface | Packet-switch crossbar connecting up to 2 CPU/Memory boards, and up to 2 I/O assemblies |
System Interconnect | Fireplane, 9.6 GB/sec (at 150 MHz) |
System Boards | |
Number of boards | Maximum of 2 CPU/Memory boards and 2 I/O assemblies |
CPU/Memory board | Two CPU’s with 16 GB (max) Memory or four CPU’s with 32 GB (max) memory |
PCI I/O Assembly | n/a |
CompactPCI I/O Assembly | Six CompactPCI slots supporting 6-3U cPCI cards
|
Main Memory | |
32 GB memory (max) per 4 CPU’s or 16 GB memory (max) per 2 CPU’s on a CPU/Memory boardMaximum system memory capacity of 64 GB (2 × 32 GB)
1GB DIMMs are not supported on 750MHz CPU/Memory boards. Note: The UltraSPARC III processor contains an integrated memory controller which is responsible for memory management of local memory and for running diagnostics on the CPU/Memory board. Therefore, memory capacity is directly related to the number of CPU’s. |
|
Standard Interfaces | |
System Controller | Responsible for the overall control of the system. Each System Controller includes one RS-232/423 (DB25) serial interface and one 10/100BASE-T ethernet/fast ethernet (RJ45) interface. Dual system controllers are standard on the Sun Fire 6800. |
Internal Mass Storage | |
Sun StorEdge[tm] D240 Media Tray | A 2U-high, rack-mounted unit into which two UltraWide SCSI3 disk drive, and one DVD drive and one DDS4 tape drive can be fitted. The DVD and DDS4 devices can be replaced by extra disk drives if required. |
Power Supplies | |
The Sun Fire 3800-6800 server family can be configured with N”4″ redundant DC bulk power supplies, which are hot swappable. The DC bulk power supplies provide power for all of the Sun Fire 3800-6800 systems’ internal requirements, on a load-shared 48VDC power bus. The base package comes with 2 power supplies. | |
Environment | |
AC input |
100 VAC: 47 – 63 Hz, 24 A (max configuration) 120 VAC: 47 – 63 Hz, 19.7A (max configuration) 200 – 240 VAC: 47 – 63 Hz, 11.4 A (max configuration) |
Input power |
100 VAC: 2280 W 120 VAC: 2240 W 200 – 240 VAC: 2170 W |
Heat output |
100 VAC: 7775 BTU/hr 120 VAC: 7645 BTU/hr 200 – 240 VAC: 7385 BTU/hr |
Temperature |
Optimal: 21° C to 23° C (70° F to 73.5° F) Operating: 5° C to 35° C (41° F to 95° F) – derate 2° C for every 1 km up to 3 km Nonoperating: -20° C to 60° C (-4° F to 140° F) |
Humidity |
Optimal: 45% to 50% relative humidity Operating: 20% to 80% relative humidity, noncondensing (27° C max wet bulb) Nonoperating: 5% to 93% relative humidity, noncondensing (38° C max wet bulb) |
Altitude |
Operating: 3000 m (10,000 ft.) Nonoperating: 12,000 m (40,000 ft.) |
Acoustic noise | Operating: 6.9 bels |
Vibration |
Operating: 0.15 G, 5 – 500 Hz (swept sine) Nonoperating: 0.6 G, 5 – 500 Hz (swept sine), vertical axis 0.3 G, 5 – 500 Hz (swept sine), horizontal axis |
Shock | Operating: 3 G peak, 11 milliseconds half-sine pulse |
Number of cords1 | 3 |
1 One power cord for each power supply installed. Minimum required is two and maximum is three. | |
Regulations Meets or exceeds the following requirements: |
|
Safety | UL 1950, CSA 950, TUB EN60950, CB Scheme (Worldwide Deviation) |
RFI/EMI | FCC Class A, ICES 003 Class A, DOC Class A, EN55022 Class A, VCCI Class A, BSMI Class A, EN61000-3-2 & EN61000-3-3 |
Immunity | EN55024, EN50082-1 |
Harmonics | EN61000-3-2 |
Dimensions and Weights | |
Height | 38.1 cm (15.0 in.) 85.7 cm (33.75 in.) shipping |
Width | 45 cm (17.72 in.) 63 cm (24.75 in.) shipping |
Depth | 88.4 cm (34.8 in.) 105.5 cm (41.5 in.) shipping |
Weight | 104 kg (230 lb.) approximate 117.9 kg (260 lb.) approximate shipping |
Power Cord | 2.5 m (8.2 ft.) |
Backplane/Centerplane | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
n/a | 501-5465 | 2 Slot Centerplane (Factory Installed) | ||
n/a | 501-5569 | System LED Board | ||
n/a | 501-5876 | 2 Slot Centerplane (FRU) |
Boot PROM | ||
---|---|---|
Socket | Manufacturing Part # |
Patch |
U2107 | n/a | 114525 (5.18.x) |
Cables | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X320A | Localized Power Cord Kit – North America/Asia, RoHS:Y | |||
180-2164 | IEC 320 C13 to NEMA 6-15P – 10A/250V 2.0M Black, RoHS:Y | |||
X3800A | AC Input Power Cable Option (North American, Asian), RoHS:Y | |||
180-1943 | AC Input Power Cable, Harting Han 6HsB to NEMA L6-30P (North American, Asian), RoHS:Y | |||
X3848A | AC Input Power Cable, Harting Han 6HsB to IEC309 (International), RoHS:Y | |||
180-1944 | AC Input Power Cable, Harting Han 6HsB to IEC309 (INTL), RoHS:Y | |||
X985A | 530-1869 | Serial Port Adapter (Y-Splitter) Cable, 50 cm | ||
X319YA | 180-1949 | Y Split AC Power Cable, 3M, RoHS:Y | ||
n/a | 530-1351 | IEC 320 C13 to NEMA 6-15 – 10A/250V 2.0M Black, RoHS:Y |
Communication | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X1266A | 501-5483 | Compact PCI (cPCI) SunATM 155 MMF NIC | ||
X1268A | 501-5564 | Compact PCI (cPCI) SunATM 622 MMF NIC |
Ethernet | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X1234A | 501-5502 | Compact PCI (cPCI) QuadFastEthernet (QFE) | ||
X1261A | 501-5523 | Compact PCI (cPCI) Gigabit Ethernet |
Fan | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X4323A | 540-4193 | Fan Tray |
Fibre Channel | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X6748A | 375-0118 | Compact PCI (cPCI) Dual Channel FC |
I/O | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X4040A | 540-4591 | Compact PCI (cPCI) I/O Assembly (6 slot) |
Memory | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X7056A | 4 GB (4 × 1GB SDRAM DIMMs) | |||
501-7386 | 1GB SDRAM DIMM, RoHS:YL | |||
X7051A | 2 GB (4 × 512MB SDRAM DIMMs) | |||
501-7385 | 512MB SDRAM DIMM, RoHS:YL | |||
X7053A | 1 GB (4 × 256MB SDRAM DIMMs) | |||
501-5401 | 256MB SDRAM DIMM | |||
n/a | 501-5030 | 512MB SDRAM DIMM | ||
n/a | 501-6109 | 1GB SDRAM DIMM | ||
n/a | 540-5086 | 1GB SDRAM DIMM | ||
F511-1030 | Package of 25 × 512MB SDRAM DIMMs | |||
|
|
|||
F511-1031 | Package of 25 × 1GB SDRAM DIMMs | |||
|
|
Miscellaneous | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
n/a | 540-4523 | Sun StorEdge D240 Mediatray |
Power | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X4303A | 300-1441 | A145, AC-48VDC Power Supply | ||
XRK-F3800E | 300-1529 | A145E, AC-48VDC Power Supply |
Rack | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X4347A | 340-6728 | Kickplate Extension | ||
540-4674 | Top Extension | |||
540-4857 | Left/Right Extension | |||
SF-XCAB | 540-4613 | Sun Fire Cabinet |
SCSI | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X1232A | 501-5570 | Compact PCI (cPCI) Single Ended UltraSCSI + 10/100 Ethernet | ||
X6749A | 375-0119 | Dual Differential Ultra/Wide SCSI, (UDWIS/cPCI)(HVD) |
System Board | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
X4004A | 540-4729 | CPU/Memory Uniboard w/ 2× US III 750MHZ, 0MB |
||
X4005A | 540-4730 | CPU/Memory Uniboard w/ 4× US III 750MHZ, 0MB |
||
X4006A-CDP | 540-5821 | CPU/Memory Uniboard w/ 2× US III Cu 900MHZ, 0MB | ||
X4007A-CDP | 540-5825 | CPU/Memory Uniboard w/ 4× US III Cu 900MHZ, 0MB | ||
XCPUBD-2-1050-CDP | 540-5795 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 0MB | ||
XCPUBD-2049 | 540-5823 | CPU/Memory Uniboard w/ 2× US III Cu 900MHZ, 4GB | ||
XCPUBD-2089 | 540-5824 | CPU/Memory Uniboard w/ 2× US III Cu 900MHZ, 8GB | ||
XCPUBD-222-1050 | 540-5797 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 4GB | ||
XCPUBD-222-1200 | 540-5682 | CPU/Memory Uniboard w/ 2× US III Cu 1.2GHz, 4GB | ||
XCPUBD-4-1050-CDP | 540-5799 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 0MB | ||
XCPUBD-442-1050 | 540-5858 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 8GB | ||
XCPUBD-482-1050 | 540-5780 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 16GB | ||
XCPUBD-484-1050 | 540-5803 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 32GB | ||
XCPUBD-F4169 | 540-5829 | CPU/Memory Uniboard w/ 4× US III Cu 900MHz, 16GB | ||
XCPUBD-F4329 | 540-5830 | CPU/Memory Uniboard w/ 4× US III Cu 900MHz, 32GB | ||
SF-XCPUBD-227 | 540-4830 | CPU/Memory Uniboard w/ 2× US III 750MHZ, 2GB |
||
SF-XCPUBD-447 | 540-4829 | CPU/Memory Uniboard w/ 4× US III 750MHZ, 4GB |
||
SF-XCPUBD-487 | 540-4832 | CPU/Memory Uniboard w/ 4× US III 750MHZ, 8GB |
||
X4006A | 540-5051 | CPU/Memory Uniboard w/ 2× US III Cu 900MHZ, 0MB | ||
X4007A | 540-5052 | CPU/Memory Uniboard w/ 4× US III Cu 900MHZ, 0MB | ||
XCPUBD-2029 | 540-5822 | CPU/Memory Uniboard w/ 2× US III Cu 900MHZ, 2GB | ||
XCPUBD-221-1050 | 540-5796 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 2GB | ||
XCPUBD-224-1050 | 540-5798 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 8GB | ||
XCPUBD-4049 | 540-5826 | CPU/Memory Uniboard w/ 4× US III Cu 900MHZ, 4GB | ||
XCPUBD-441-1050 | 540-5800 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 4GB | ||
XCPUBD-441-1200 | 540-5684 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 4GB | ||
XCPUBD-442-1200 | 540-5859 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 8GB | ||
XCPUBD-481-1050 | 540-5801 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 8GB | ||
XCPUBD-481-1050-C | Capacity On Demand (COD) Uniboard w/ 4× unlicensed US III Cu 1050MHz, 8GB | |||
540-5819 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 8GB | |||
XCPUBD-481-1200 | 540-5685 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 8GB | ||
XCPUBD-481-1200-C | Capacity On Demand (COD) Uniboard w/ 4× unlicensed US III Cu 1.2GHz, 8GB | |||
540-5732 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 8GB | |||
XCPUBD-482-1050-C | Capacity On Demand (COD) Uniboard w/ 4× unlicensed US III Cu 1050MHz, 16GB | |||
540-5820 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 16GB | |||
XCPUBD-482-1200 | 540-5603 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 16GB | ||
XCPUBD-482-1200-C | Capacity On Demand (COD) Uniboard w/ 4× unlicensed US III Cu 1.2GHz, 16GB | |||
540-5740 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 16GB | |||
XCPUBD-484-1200 | 540-5604 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 32GB | ||
XCPUBD-484-1200-C | Capacity On Demand (COD) Uniboard w/ 4× unlicensed US III Cu 1.2GHz, 32GB | |||
540-6010 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 32GB | |||
XCPUBD-F4089 | 540-5827 | CPU/Memory Uniboard w/ 4× US III Cu 900MHZ, 8GB | ||
XCPUBD-F4089-C | Capacity On Demand (COD) Uniboard w/ 4× unlicensed US III Cu 900MHz, 8GB | |||
540-5474 | CPU/Memory Uniboard w/ 4× US III Cu 900MHz, 8GB | |||
n/a | 540-5267 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 0MB | ||
n/a | 540-5605 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 0MB | ||
n/a | 540-5623 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 0MB | ||
n/a | 540-5691 | CPU/Memory Uniboard w/ 2× US III Cu 1.2GHz, 0MB | ||
n/a | 540-6078 | CPU/Memory Uniboard w/ 2× US III Cu 900MHz, 0MB | ||
n/a | 540-6079 | CPU/Memory Uniboard w/ 4× US III Cu 900MHz, 0MB | ||
n/a | 540-6080 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 0MB | ||
n/a | 540-6081 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 0MB | ||
n/a | 540-6082 | CPU/Memory Uniboard w/ 2× US III Cu 1.2GHz, 0MB | ||
n/a | 540-6083 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 0MB | ||
n/a | 540-6445 | CPU/Memory Uniboard w/ 2× US III 750MHZ | ||
n/a | 540-6446 | CPU/Memory Uniboard w/ 4× US III 750MHZ, 0MB | ||
n/a | 559-0067 | CPU/Memory Uniboard w/ 4× US III Cu 900MHz, 0MB (L2 Cache rework) |
||
n/a | 559-0068 | CPU/Memory Uniboard w/ 4× US III Cu 1050MHz, 0MB (L2 Cache rework) |
||
n/a | 559-0069 | CPU/Memory Uniboard w/ 4× US III Cu 1.2GHz, 0MB (L2 Cache rework) |
||
n/a | 559-0072 | CPU/Memory Uniboard w/ 2× US III Cu 900MHz, 0MB (L2 Cache rework) |
||
n/a | 559-0073 | CPU/Memory Uniboard w/ 2× US III Cu 1050MHz, 0MB (L2 Cache rework) |
||
n/a | 559-0074 | CPU/Memory Uniboard w/ 2× US III Cu 1.2GHz, 0MB (L2 Cache rework) |
System Controller | ||||
---|---|---|---|---|
Option # | Manufacturing Part # |
Description | ||
n/a | 501-5563 | System Controller Board |
