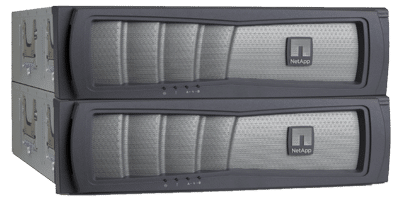

NetApp FAS3200 Series (FAS3250 FAS3220)

REQUEST A PRICE QUOTE:

NetApp FAS3200 Series enables flash and clustering to improve IT performance and agility.

Our new NetApp® midrange data storage platforms are our most powerful ever with up to 80% more performance, 100% more capacity, nondisruptive operations, and industry-leading storage efficiency. That means you don’t have to compromise performance or value.

Improve business agility. With a new processor and memory architecture, the FAS3220 and FAS3250 offer unprecedented support for flash and enterprise clustering for an agile infrastructure that adapts to support any combination of application workloads—without introducing complexity.

Deliver impact faster. Self-managing Virtual Storage Tier flash technologies deliver more IOPS with lower latency, and reduce by up to 75% the number of drives needed for a given level of performance.

Avoid downtime. Clustered Data ONTAP® software helps eliminate planned and unplanned downtime through nondisruptive operations.

Key Points

Up to 80% more performance and 100% more capacity
Flash-ready with up to 4TB of flash to boost performance
Scalable, cluster-ready architecture to meet new business demands
Nondisruptive updates and expansion with zero disruption to users
Built on Data ONTAP, the world’s #1 branded storage OS[*]

All data in this table applies to active-active dual controller configurations.

	FAS3250 with Expanded I/O	FAS3220 with Expanded I/O	FAS3220
Maximum System Capacity	2,880TB	1,920TB	1,920TB
Maximum Drives	720	480	480
Controller Form Factor	Dual enclosure HA; 2 controllers in two 3U chassis, total of 6U	Dual enclosure HA; 2 controllers in two 3U chassis, total of 6U	Single enclosure HA; 2 controllers in single 3U chassis
Memory	40GB	24GB	24GB
Maximum Flash Cache	2TB	1TB	1TB
Maximum Flash Pool	4TB	1.6TB	1.6TB
Maximum Total Flash	4TB	1.6TB	1.6TB
PCIe Expansion Slots	12	12	4
Onboard I/O: 4Gb FC	4	4	4
Onboard I/O: 6Gb SAS	4	4	4
Onboard I/O: GbE	4	4	4
Storage Networking Supported	FC; FCoE; IP SAN (iSCSI); NFS; CIFS/SMB; HTTP; FTP
OS Version	Data ONTAP® 8.1.2 and later
High-Availability Features	Alternate Control Path (ACP); Ethernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optics
Supported Configurations	Highly available controller configurations Active-active controller with controller failover and multipath HA storage Active-active controller with stretch (nonswitch) and fabric-attached MetroCluster™ V-Series Clusters of HA pairs (see clustered Data ONTAP support table)
Disk Shelves Supported	DS2246 (2U; 24 drives, 2.5″ SFF) DS4246 (4U; 24 drives, 3.5″ LFF) DS4486 (4U; 48 drives, 3.5″ LFF) DS4243 (4U; 24 drives, 3.5″ LFF)
Maximum RAID Group Sizes	RAID 6 (RAID-DP) SAS and FC: 28 (26 data disks plus 2 parity disks) SATA: 20 (18 data disks plus 2 parity disks)RAID 4 FC: 14 (13 data disks plus 1 parity disk), SATA: 7 (6 data disks plus 1 parity disk)RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror)
Operating Systems Supported	Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux®, Sun Solaris, AIX, HP-UX, Mac® OS, VMware®, ESX
Max. Number of LUNs	4,096
Number of Supported SAN Hosts	Up to 512 hosts per HA pair Up to 24 directly connected servers per HA pair
FlexVol Volumes	Up to 500 per controller
Snapshot Copies	Up to 127,000 per controller
Maximum Aggregate Size	105TB	90TB	90TB
Maximum Volume Size	70TB	60TB	60TB
Maximum port count includes integrated ports and PCIe expansion slots
FC Target Ports (8Gb/4Gb) (max.)	24	24	10
10GbE/FCoE Target Ports (max.)	24	24	8
GbE (max.)	52	52	20
6Gb SAS (max.)	52	52	20
FC Initiator (max.)	52	52	20
Maximum Adapters
Dual 10GbE (optical or copper)	12	12	4
Quad GbE (copper)	12	12	4
Dual 10GbE FCoE SAN Unified Target Adapter (optical or copper)	12	12	4
8Gb FC Target (optical)	12	12	4
Dual 8Gb VI for SnapMirror® over Fibre Channel (SMoFC)	2	2	2
Flash Cache Performance Acceleration Module (1TB)	2	N/A	N/A
Flash Cache Performance Acceleration Module (512GB)	4	2	2
Quad 6Gb SAS Storage HBA	12	12	4
Quad 4Gb FC Storage/Tape HBA	12	12	4
Dual SCSI Tape HBA	12	12	4

Clustered Data ONTAP Support
Cluster nodes	NAS: Up to 8 cluster nodes SAN: Up to 8 cluster nodes Cluster nodes = single storage controllers All cluster nodes are configured in HA pairs A cluster can mix controllers of different models and incorporate 3rd party arrays via V-Series controllers
Cluster data communication interconnect	Dual 10GbE
Cluster capacity	Up to 11.5PB
Storage protocols	FC, FCoE, iSCSI, NFS, pNFS, CIFS/SMB
Optional software	Refer to FAS3200 series software tab

System Environmental Specifications
Thermal Rating	1,393 BTU (typical) 1,867 BTU (worst case)	1,256 BTU (typical) 1,707 BTU (worst case)	1,591 BTU (typical) 2,168 BTU (worst case)
Weight	148 lb	80 lb	80 lb
Height	10.2″ (26 cm), fits into 6U space	10.2″ (26 cm), fits into 6U space	5.1″ (13 cm), fits into 3U space
Width	19″ IEC rack-compliant (17.6″, 44.7 cm)
Depth	24″ (26.5″ w/cable management)
Operating Temperature, Altitude, and Relative Humidity	10° C to 40° C (50° F to 104° F); at <= 3,000 m (at <= 10,000′ feet) elevation; 20% to 80% relative humidity, noncondensing (28° C wet bulb temperature)
Nonoperating Temperature and Relative Humidity	-40° C to 65° C (-40° F to 149° F); 5% to 95% relative humidity, noncondensing, in original container
Operating Acoustic Noise	? 61 dBA sound pressure (LpA) @ normal operating conditions (at 22°C and at sea level)
Compliance	RoHS-compliant PDF

NetApp Systems Cabinet
Rack Space	42U
Dimensions (height/width/depth)	78.75″ (200 cm)/23.6″ (60 cm)/44.3″ (112.5 cm)
Minimum Cabinet Clearances for Airflow	10″ (25.4 cm) front and 12″ (30.5 cm) rear
Minimum Cabinet Clearances for Service	30″ (76.3 cm) front and rear, 12″ top
AC Power	200 to 240VAC
Current	30A Single Phase or 3-Phase
Weight (empty)	307 lbs (138 kg)
Features	Split rear door with cable egress opening Reversible front door (left- or right-handed)
