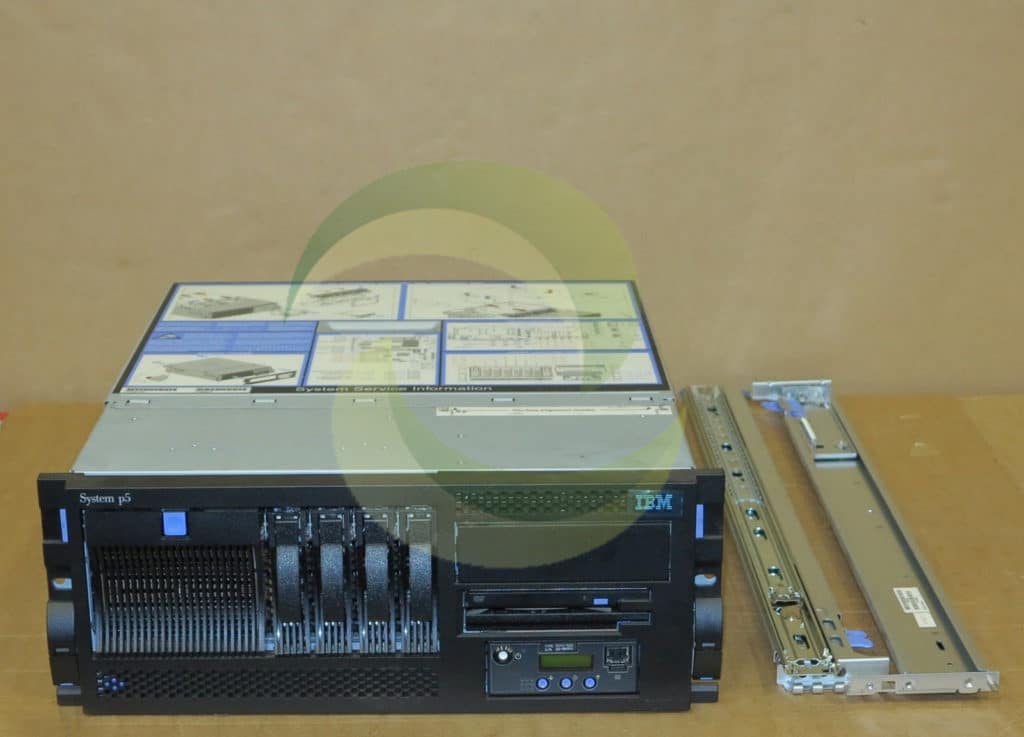

IBM System P5 520 4U Rackmount Server 9131-52A 2-Way 2.1GHz p5+ 4Gb 4x 73Gb
REQUEST A PRICE QUOTE:
IBM System P5 520 2U Server
IBM 2-Way 2.1Ghz p5+ Processor
4Gb DDR2 RAM
4 x 73.4Gb 15k SCSI Hard Drives
DVD-ROM optical drive
1 x Dual Port Gigabit Network Adapter Card
2 x Single Port 4Gb FC Host Bus Adapter Cards
1 x 850w Power supply
1 x Pair Of Rackmount Rails
| Rack-mounted drawer | |||||
| Dimensions | Width | Depth | Height | EIA units1 | Weight |
| Metric | 437 mm | 584 mm | 178 mm | 4 | 43 kg |
| English | 17.20 in. | 23 in. | 7 in. | 95 lb. | |
| Desk-side server | |||||
| Dimensions | Width | Depth | Height | Weight | |
| Metric | 201 mm |
630 mm (without rear cover 706 mm (with 6587 rear cover) |
533 mm | 43 kg | |
| English | 7.9 in. |
23 in. (without rear cover) 27.8 in. (with 6587 rear cover) |
21 in. | 95 lb. | |
| Rack-mounted drawer | |||||
| Shipping Dimensions | Width | Depth | Height | Weight | |
| Metric | 630 mm | 933 mm | 584 mm | 53 kg | |
| English | 24.80 in. | 36.75 in. | 23 in. | 117 lb. | |
| Rack-mounted drawer (China) | |||||
| Shipping Dimensions | Width | Depth | Height | Weight | |
| Metric | 679 mm | 978 mm | 610 mm | 53 kg | |
| English | 26.75 in. | 38.50 in. | 24 in. | 117 lb. | |
| Desk-side server | |||||
| Shipping Dimensions | Width | Depth | Height | Weight | |
| Metric | 584 mm | 880 mm | 813 mm | 50 kg | |
| English | 23 in. | 34.65 in. | 32 in. | 110 lb. | |
| Desk-side server (China) | |||||
| Shipping Dimensions | Width | Depth | Height | Weight | |
| Metric | 616 mm | 904 mm | 832 mm | 63 kg | |
| English | 24.25 in. | 35.60 in. | 32.75 in. | 138 lb. | |
|
Feature code for drawer mounted in rack Optional power distribution unit (PDU), 0551 rack, 7014-T00, 7014-T42, 0553, 0555 racks |
7884 (9406-520, 9405-520, 9406-525, 9407-515) 0229 (9111-520) |
||||
| Electrical | |||||
| kVA (maximum) | 0.789 | ||||
| Rated voltage and frequency6 | 100 – 127/200 – 240V ac at 50/60 plus or minus 0.5 Hz | ||||
| Thermal output (maximum) | 2560 Btu/hr | ||||
| Maximum power consumption | 750 W | ||||
| Power factor | 0.95 | ||||
| Inrush current (maximum) | 88 A | ||||
| Leakage current (maximum) | 1.2 mA | ||||
| Phase | 1 | ||||
| Compatible plug types | 2, 4, 5, 6, 10, 18, 19, 22, 23, 24, 25, 32, 34, 62, 64, 66, 69, 70, 75, 76 | ||||
| Dual power feature code | 5159 | ||||
| Branch circuit breaker | 20 A (maximum) | ||||
| Power cord length |
2.8 m (9 ft.) – except United States 1.8 m (6 ft.) – United States |
||||
| Environment requirements | |||||
| Recommended operating temperature2 | 5 degrees to 35 degrees C (41 degrees to 95 degrees F) | ||||
| Nonoperating temperature | 5 degrees to 45 degrees C (41 degrees to 113 degrees F) | ||||
| Shipping temperature | -40 degrees to 60 degrees C (-40 degrees to 140 degrees F) | ||||
| Operating4 | Nonoperating | ||||
| Maximum dew point | 28 degrees C (82.4 degrees F) | 29 degrees C (84.2 degrees F) | |||
| Noncondensing humidity | 8 to 80% | 8 to 80% | |||
| Maximum altitude | 3048 m (10000 ft.) | 3048 m (10000 ft.) | |||
| Noise emissions3, 8, 9 | |||||
| Product description | Declared A-weighted sound power level, LWad(B) | Declared A-weighted sound pressure level, LpAm (dB) | |||
| Operating | Idle | Operating | Idle | ||
| 9111-285 workstation | 5.0 | 5.0 | 35 | 32 | |
| 9131-52A, 9406-520, 9111-520, and 9405-520 desk side server with two power supplies, eight hard drives and acoustic package | 5.7 | 5.6 | 40 | 39 | |
| 9131-52A, 9406-520, 9111-520, and 9405-520 desk side server with two power supplies and eight hard drives | 6.1 | 5.9 | 44 | 41 | |
| 9406-520 and 9111-520 rack-mounted server | 6.0 | 5.8 | 43 | 42 | |
| Service clearances | |||||
| Clearances | Front | Back | Left or right | Top | |
| Operating | 762 mm (30 in.) | 762 mm (30 in.) | |||
| Nonoperating | 762 mm (30 in.) | 762 mm (30 in.) | 762 mm (30 in.) | 762 mm (30 in.) | |
