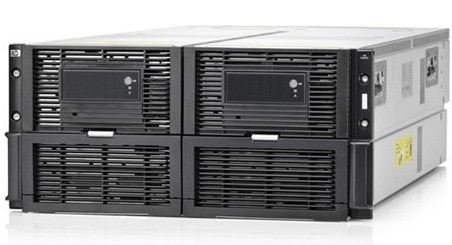

HP D6000 Disk Storage Enclosure Specs – Overview

HP D6000 Disk Storage Enclosure Specs - Overview HP D6000 Disk Storage Enclosure Specs – Overview d6000 hp

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*



    HP D6000 Disk Enclosure – Overview

    Product description

    What’s new

    Product features

    Software overview

    Important links

    Product description

    The 6-Gb/s SAS HP D6000 Disk Enclosure delivers high density, low cost, external zoned direct-attach storage for HP BladeSystem servers which enables a high performance storage solution, eases configuration/deployment and broadens supported features.

    top

    What’s new

    Adding for fully and partially populated 4 TB SAS MDL HDD bundles:

    • HP D6000 w/35 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 140 TB Bundle

    • HP D6000 w/70 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 280 TB Bundle

    top

    HP D6000 Storage features

    Feature
    Description
    Modular chassis

    • 5U, 70 Large Form Factor Universal SAS or SAS Midline (MDL) drive bays

    • Straight forward SAS architecture
    Product technology
    6 Gb/s SAS
    Fans
    Includes four redundant hot plug fan
    Drives

    • Serial Attached SCSI (SAS) enterprise-class drives designed for high volume 24×7 usage.

    • SAS Midline (MDL) are usually reserved for archival of data.

    • SAS drive performance can be approximately 30% greater than SAS MDL performance on sequential host IO.
    RAID levels

    • RAID 0 (striping)

    • RAID 1 (mirroring)

    • RAID 1+0 (mirroring and striping)

    • RAID 5 (distributed data guarding)

    • RAID 6 with Advanced Data Guarding (ADG)

    • RAID 50 (RAID 5+0)

    • RAID 60 (RAID 6+0)

    • RAID 1 Advanced Data Mirroring (ADM)
    Power supplies
    Includes four redundant 1200 W 12 V hot plug power supplies.
    Scalability

    • Up to 70 SAS or SAS MDL 3.5-inch hot plug hard drives per D6000.

    • A single BladeSystem enclosure supports up to six D6000’s externally.
    Supported servers1

    • HP BladeSystem Servers

    • HP ProLiant BL420c Gen8

    • HP ProLiant BL460c Gen8

    • HP ProLiant BL465c Gen8

    • HP ProLiant BL660c Gen8

    • HP ProLiant Gen8 Servers

    • HP ProLiant Gen8 DL and ML servers that support HP Smart Array Controllers P421 and P822

    NOTE: 1: Some servers listed above may be discontinued.

    For more information on internal vs external connections, please refer to proper blade QuickSpecs. Click here to view ProLiant BladeSystem C-Class Portfolio .

    top

    Software overview

    Feature
    Description
    Supported Operating System (OS)

    • Microsoft Windows 2003

    • Microsoft Windows 2008 R2

    • Microsoft Windows Server 2012

    • SLES 10 SP3

    • SLES 11 SP1

    • Red Hat Enterprise Linux 5

    • Red Hat Enterprise Linux 6

    • VMware ESX 4.1

    • VMware ESX 5.0
    Configuration and management tools

    • SAS BL switch for use with BladeSystem servers

    • Array Configuration Utility (ACU)
    Management/health utilities
    Active hardware management using HP Systems Insight Manager (SIM)
    Remote support tools
    HP Insight Remote Support
    Additional services

    • Blade system Firmware Analysis

    • Hardware and Software Asset Inventory

    • HP Blade system Health Check Service

    • HP Personalized Support

    • HP Personalized Support Additional Day

    top

    Important links from HP.com:

    Product specifications:

    Click here to view the HP D6000 Disk Enclosure specifications page .

    List of available documents for the HP D6000 Disk Enclosure:

    Click here to view a list of documents available for the HP D6000 Disk Enclosure .

    Warranty:

    Click here for information regarding worldwide limited warranty for HP D6000 Disk Enclosure .

    QuickSpecs :

    Click here to access the HP D6000 Disk Enclosure Worldwide QuickSpecs in .html format .

    Click here to access the HP D6000 Disk Enclosure Worldwide QuickSpecs in .pdf format .

    Click here to access the HP D6000 Disk Enclosure North America QuickSpecs in .html format .

    Click here to access the HP D6000 Disk Enclosure North America QuickSpecs in .pdf format .

    Click here to access the QuickSpecs homepage, which provides access to the QuickSpecs for other regions/countries .
