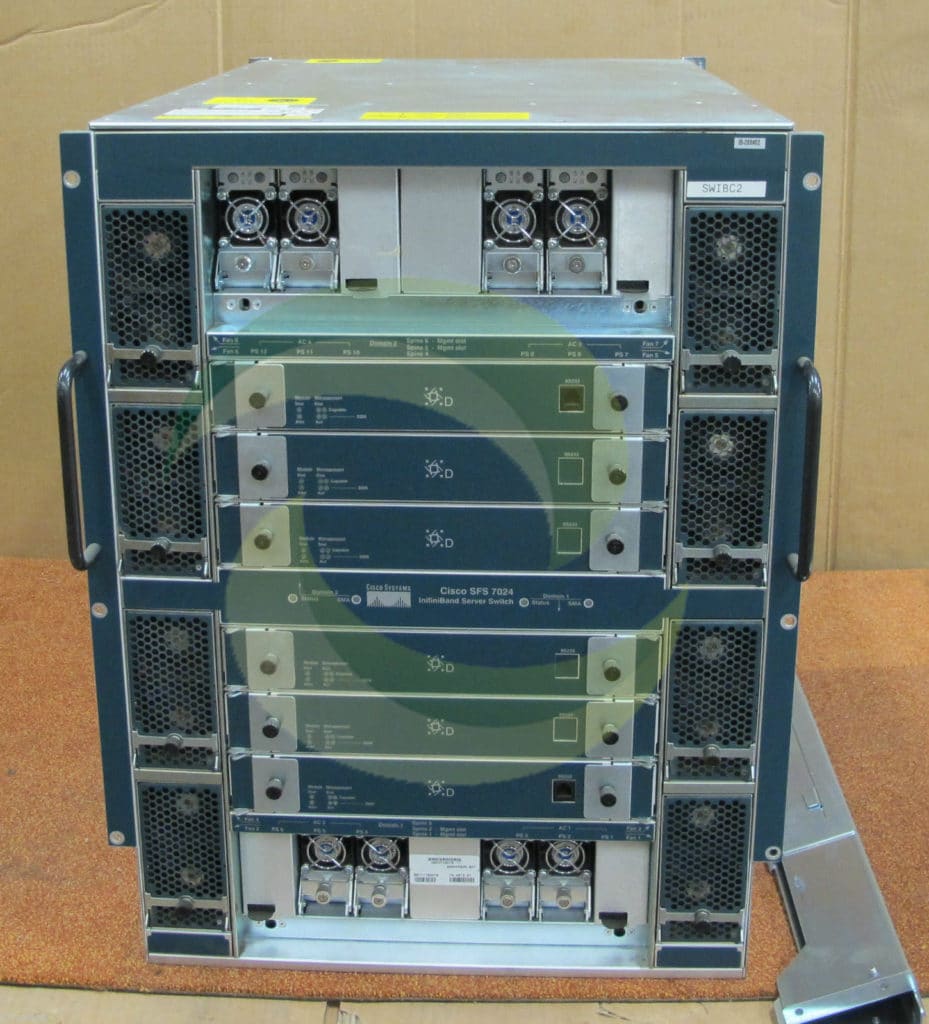

Cisco SFS 7024 InfiniBand 288 Port Server Switch

INCLUDED

• 1 x Cisco SFS-7024D InfiniBand Server Switch Containing;
  • 8 x Fan Modules (Cisco P/N: 74-4323-02) (HP Spares Number: 446981-001)
  • 8 x PSU’S (Cisco P/N: 74-4321-02) (HP Spares: 446219-001)
  • 4 x Cisco InfiniBand 4X DDR Unmanaged Fabric Board (Cisco P/N: 74-4813-01) (HP Spares Number: 445827-B21)
  • 2 x Cisco InfiniBand 4X DDR Managed Fabric Board (Cisco P/N: 74-4814-01) (HP Spares Number: 446217-001)
  • 24 x Cisco InfiniBand 4X DDR 12P Line Board (Cisco P/N: 74-4815-01) (HP Spares Number: 445829-B21)
  • 1 x Rail Kit

DESCRIPTION

High-performance computing (HPC) applications that solve complex, computationally intensive problems are widely deployed within academic and research communities and enterprises because they deliver significant business benefits. An important enabler for the broad adoption of HPC applications is the practice of clustering multiple industry-standard servers using a high-speed network to provide supercomputer performance, at a fraction of the cost of traditional supercomputers.

PRODUCT OVERVIEW

The Cisco SFS 7012D and 7024D provide nonblocking switching for up to 144 and 288 InfiniBand 4X ports respectively. Each port can operate in double data rate (DDR) mode, which delivers 20 Gbps, or single data rate (SDR) mode, which delivers 10 Gbps for server or inter-switch link connectivity. The Cisco SFS 7012D supports fully redundant, hot-swappable components that are ideal for building large-scale, highly available clusters for HPC applications. The Cisco SFS 7012D and 7024D are optimized for very large, high-density HPC environments and deliver nonblocking, high-bandwidth, low-latency switching in a cost-effective form factor

BENEFITS

The Cisco SFS 7012D and 7024D offer the following benefits:

• 144 or 288 InfiniBand 4X 20-Gbps (DDR) or 10-Gbps (SDR) autosensing ports
• Comprehensive performance and fabric diagnostics tools in a fully managed switch
• High-performance, industry standards-based InfiniBand interconnect technology
• Integration with other Cisco SFS 7000 Series InfiniBand Server Switches
• Easy configuration, monitoring, and maintenance in-band and out-of-band

FEATURES

The following features are included with the Cisco SFS 7012D and 7024D:

• Up to 288 ports of nonblocking, InfiniBand 4X 20-Gbps (DDR) or 10-Gbps (SDR) connectivity with full bisectional bandwidth
• Supports DDR-to-SDR switching capability for investment protection and higher server densities
• Command-line interface (CLI), Web, and Java-based systems management options
• Powered ports to enable flexible copper and optical interface configurations
• Hot-swappable components, including online insertion and removal (OIR), redundant fans, and power supplies

SPECIFICATIONS
