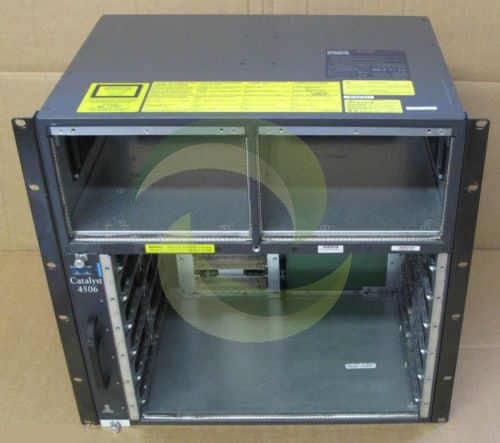

Refurbished Cisco Catalyst WS-C4506 4506 6-Slot POE Ethernet Switch Chassis

Cisco Catalyst WS-C4506 4506 6-Slot POE Ethernet Switch Chassis

REQUEST A PRICE QUOTE:

Cisco Catalyst 4506 6-Slot POE Ethernet Switch

Chassis

WS-C4506

The Cisco Catalyst 4506 offers nonblocking Layer 2-4 switching with integrated resiliency,
further enhancing control of converged networks. Converged voice, video,
and data networks with high availability help enable business resiliency for enterprises,
small and medium-sized businesses (SMBs), and Metro Ethernet customers deploying
Internet-based business applications.

Cisco WS-C4506I/O Expansions

Number of Expansion Slots: 6

Expansion Slots: (5 Total) Expansion Slot

Expansion Slots: (1 Total) Supervisor Engine

Cisco WS-C4506Management & Protocols

Manageable: Yes

Cisco WS-C4506General Information

Manufacturer: Cisco Systems, Inc

Brand Name: Cisco

Product Line: Catalyst

Product Series: 4500

Product Name: Catalyst 4506 Ethernet Switch

Product Type: Ethernet Switch

Cisco WS-C4506Interfaces/Ports

Interfaces/Ports: LAN

Cisco WS-C4506Management & Protocols

Management:

SNMP
RMON
Remote Monitoring (RMON)
Remote Monitoring II (RMON II)
SNMP MIB II
Telnet
Ethernet Repeater MIB
Ethernet MIB
Cisco Workgroup Management Information Base (MIB)
Simple Network Management Protocol (SNMP) agent Version 1
SNMP Version 2c
SNMP
RMON
Remote Monitoring (RMON)
Remote Monitoring II (RMON II)
SNMP MIB II
Telnet
Ethernet Repeater MIB
Ethernet MIB
Cisco Workgroup Management Information Base (MIB)
Simple Network Management Protocol (SNMP) agent Version 1
SNMP Version 2c

Protocols: VTP

Protocols: CDP

Cisco WS-C4506Controls/Indicators

Status Indicators:

Power
Fail
Power
Fail

Cisco WS-C4506Power Description

Power Source: Power Supply

Redundant Power Supply: Yes

Cisco WS-C4506Environmental Conditions

Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage

Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating

Humidity: 10% to 90% Non-condensing Relative Humidity

Altitude: 196.84 ft to 13123.32 ft Operating

Cisco WS-C4506Physical Characteristics

Dimensions: 17.38 Height x 17.31 Width x 12.5 Depth

Weight: 100lb

Supervisor engines supported:
Supervisor Engine II
Supervisor Engine II-Plus
Supervisor Engine III
Supervisor Engine IV
Slot 1 is reserved for supervisor engine only; slots 2 and higher are reserved for line cards
No power supply
Power supplies supported:
1000-watt AC
2800-watt ACV
1300-watt ACV
1400-watt DC

System Requirements: Minimum software requirement:

Cisco IOS Software Version 12.1(12c)EW or higher

Certifications & Standards: Safety:

UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260
EMC:
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55022EN 55024
EN 61000-6-1
EN 50082-1
EN 61000-3-2
EN 61000-3-3
ETS 300 386
Industry EMC, Safety and Environmental Standards:
GR-63-Core NEBS Level 3
GR-1089-Core Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3 (Pending)
ETS 300 019 Stationary Use Class 3.1
ETS 300 386
Telecom (E1):
CTR 12/13
CTR 4
ACA TS016
Telecom (T1):
FCC Part 68
Canada CS-03
JATE Green Book
Ethernet:
IEEE 802.3, 10BASE-T
Fast Ethernet:
IEEE 802.3u, 100BASE-TX
IEEE 802.3, 100BASE-FX
Gigabit Ethernet:
IEEE 802.3z
IEEE 802.3x
IEEE 802.3ab
1000BASE-X (GBIC)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
Virtual LAN (VLAN) trunking/tagging:
IEEE 802.1Q
Spanning-Tree Protocol:
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
Security:
IEEE 802.1x
