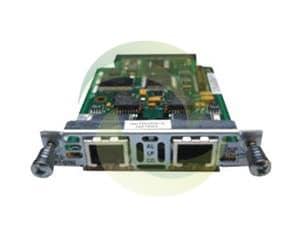

Cisco 1-port RJ-48 Multiflex Trunk (E1 G.703) Voice/WAN Interface Card VWIC2-1MFT-G703=

Cisco 1-port RJ-48 Multiflex Trunk (E1 G.703) Voice/WAN Interface Card VWIC2-1MFT-G703= Cisco 1-port RJ-48 Multiflex Trunk (E1 G.703) Voice/WAN Interface Card VWIC2-1MFT-G703= VWIC2 1MFT G703

REQUEST A PRICE QUOTE:

    Name*

    Phone

    Details*


    Main Features

    • 1-port RJ-48 Multiflex Trunk (E1 G.703) Voice/WAN Interface Card for multiservice routers

    The second-generation 1-port T1/E1 multiflex trunk (MFT) voice/WAN interface card (multiflex VWICs) support data and voice applications in Cisco multiservice routers. The multiflex VWIC combines WAN interface card (WIC) and voice interface card (VIC) functionality to provide the following improvements:

    • Support for both T1 and E1—T1/E1 MFT VWIC2 cards provide additional flexibility in configuring the MFT VWIC2 cards by supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications.
    • Drop and insert capability on all versions—All MFT VWIC2 modules now include the drop and insert multiplexing capability, which eliminates external third party CSU/DSUs and drop and insert multiplexers.
    • Dedicated echo cancellation option—MFT VWIC2s have an onboard slot for a multiflex trunk dedicated echo cancellation module (EC-MFT-32 and EC-MFT-64), offering an enhanced echo cancellation capability for demanding network conditions.


    The multiflex VWIC cards are supported on Cisco 2600XM series, Cisco 2691, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series routers when installed on the network modules. The multiflex VWIC cards can also be installed in any VIC slot on the router.

    The second-generation 1-port T1/E1 multiflex trunk voice/WAN interface card has the following key features:

    • Full support for T1 Facility Data Link (FDL)
    • Controller local loopbacks
    • Controller remote loopbacks
    • RFC 1406 and integrated CSU/DSU MIB
    • MIB and Simple Network Management Protocol (SNMP) management
    • Firmware to support T1 and E1 Layer 1 homologation
    • User-initiated VWIC reset and field-programmable gate array (FPGA) download
    • Voice support (includes DS0-group and PRI-group configuration)
